Pen Camera, Pinhole Camera With 90 Degree Wide View Angle Pinhole Lens

Pen Camera, Pinhole Camera With 90 Degree Wide View Angle Pinhole Lens thumbnail-1
Pen Camera, Pinhole Camera With 90 Degree Wide View Angle Pinhole Lens photo-1
US$ 1 - 30 MOQ: 5 Sets
Key Specifications
Get Latest Price
Type:
Helicopter
Power:
Battery
Material:
Other, N
Contact Supplier Request Quote Chat Now
Shenzhen Aoweishi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Helicopter
Power Battery
Material Other, N
Scale Other, 15.5 x*15.5 * 20mm
Radio Control Style RC Hobby
Place of Origin Guangdong, China
Brand Name Flysight
Model Number CM110S

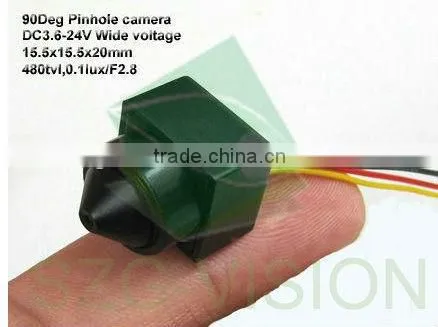

pen camera, pinhole camera with 90 degree wide view angle pinhole lens

1, Features of Ultra Light and Mini FPV Camera:

1) 90 degree wide view angle pinhole lens,.6-24v wide voltage;
2) Small Size: easy to install into narrow room and slim tube, etc.;
3) High resolution, high sensitivity, high SNR;
4) Day & night dual mode auto switch;
5) Low Illumination, Low Current and power consumption;
6) CMOS sensor generation IV+DSP chip offer true color & HD

2, Specifications of Ultra Light and Mini FPV Camera:

1) Sensor: 1/4  CMOS
2) System:  NTSC:720×480   PAL:720×576
3) Horizental Resolution: 480TVL
4) Exellent night vision of 0.1Lux/F2.8
5) Lens & View Angle: F2.8 / 90°

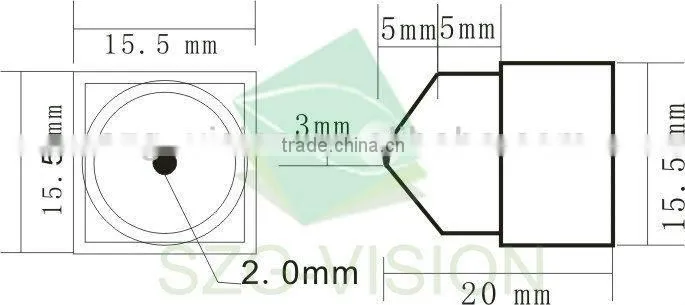

6) Dimensions(LXWXH): 15.5 x 15.5 x 20mm
7) Power Supply: DC3.6-24V    DC12:  45mA
8) Video Out: 1.0V p-p/75ohm


3, Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 5.8GHz wireless transmitter module,then it can work with wireless receivers.

pen camera, pinhole camera with 90 degree wide view angle pinhole lens pen camera, pinhole camera with 90 degree wide view angle pinhole lens



pen camera, pinhole camera with 90 degree wide view angle pinhole lens



pen camera, pinhole camera with 90 degree wide view angle pinhole lens


1. Your inquiry related to our products or prices will be replied in 24hrs.

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. OEM&ODM, any your customized lightings we can help you to design and put into product.

4. Distributor ship are offered for your unique design and some our current models

5. Protection of your sales area, ideas of design and all your private information


pen camera, pinhole camera with 90 degree wide view angle pinhole lens

1. FOB Price:
At present, we only offer EXW price to all our customers for small orders, but for a large quantity order shipped by container, we will offer you FOB Shenzhen price.

2. Payment term:
At present, we only accept T/T and West Union payment method.

3. Minimum Order Quantity(MOQ):
No matter what quantity you want, we will try our best to offer it to you. Usually, our M.O.Q is 50 pcs/kits for each item.

4. Price list:
Please visit our website: and choose your interested products. Price list of the items you selected will be sent to you after receiving your return email. Our price will depend on your order quantity. We are a manufacturer of our products, so we promise to offer you the best price.

5. Delivery time and OEM Order
If the products are NOT made based on your Trade Mark, we can send the goods to you in one week after we receive your payment.
There is no problem for us to make the products based on your brand, but the price should include the cost of gift box and you should provide us your design. The delivery would be around 35 days due to printing the gift boxes from the very beginning,but it would only need around 20 days for the repeated order.

6. How to get the sample:
So sorry to say that we don't offer free samples. When you confirm the model that you need, we will make a PI for you, including the freight charge. When we get your payment, we will send you the samples, usually within 1-2 days.

7. Shipping :
We normally suggest our customers to choose DHL Express if the order is not so large. For a large order, we recommend air freight to save your shipping cost. The shipping cost will depend on the total weight of your order.

8. Warranty:
We offer 1 year warranty of free repair or replace for all our products. If the goods have quality problem, we will replace within 3 months. In this case, we will have the faulty goods returned at first, and then we send the new ones to you with your next order.





pen camera, pinhole camera with 90 degree wide view angle pinhole lens
