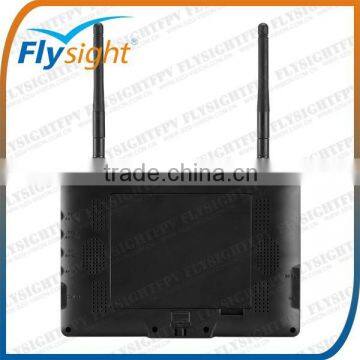

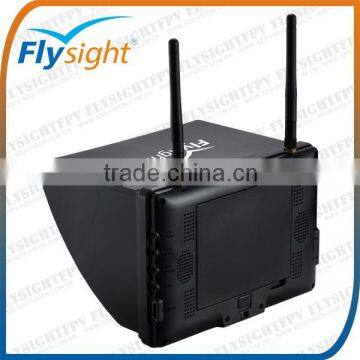

H1456 7Inch HD 1024*600 Screen with Intergrated Battery FPV Portable HD Monitor Flysight Black Pearl
*High resolution 1024*600, Anti reflective matte screen
*No "blue screen" problem when the signal gets weak
*It is very bright in daylight 300cd / m²
*Build-in two 5.8GHz video receivers and a diversity system that will automatically select the best
video signal

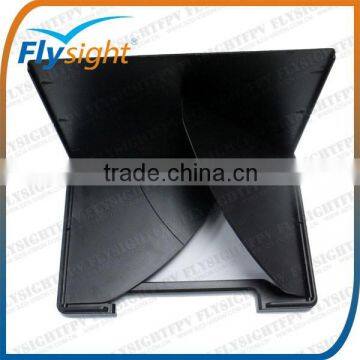

*It is equipped with an efficient rigid sunhood

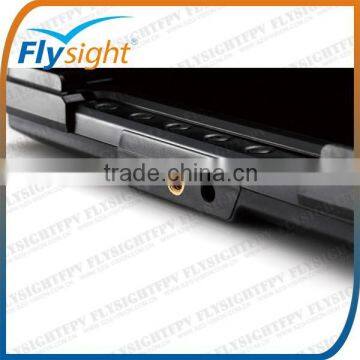

*Photo screw to clamp it on standard system (1 /4 " 20 threads per inch WBS )
*It has video outputs and Dc output to connect and power other equipmen
*A composite video input will allow you to display external sources
*HDMI video input
*Power 7 - 28V and a DC output for powering a pair of video googles or other equipment
(Dcout = Dc in, MAX 1A)
*Channel selection via button (no more micro switch !)
*Built in speakers to hear the sound ( from your video Tx or video input sources )
*Support image rotation 180 degree
| RC801 Flysight Black Pearl 7" FPV LCD Monitor | ||||||||||
| Display Screen | Diagonal | 7 inch | ||||||||
| Resolution | 1024X600 | |||||||||
| Contrast | 700:1 | |||||||||
| Luminance | 300cdm | |||||||||
| Wireless Receiving | Sensitivity | -90dBm±1dBm | ||||||||
| Channel | 32Channel ( 4 Band X 8 Channel ) | |||||||||
| Antenna Port | 2 X SMA,50ohm | |||||||||
| Diversity receiving | Antenna diversity | |||||||||
| TV System | NTSC/PAL | |||||||||
| Video output level | 1.0Vp-p Typ,75ohm | |||||||||
| Audio output level | 1.0Vp-p Typ,10Kohm | |||||||||
| RX1 AV OUT | VideoAudio output | |||||||||
| AV Port | RX2 AV OUT | VideoAudio output | ||||||||
| DIV AV OUT | Diversity receiving, VideoAudio output | |||||||||
| AV IN | VideoStereo Audio input | |||||||||
| HDMI IN(A Type) | Support HDMI 1.3 Digital Input, Support HDMI Audio in | |||||||||
| Built-in Microphone | 8Ω/1W X 2 | |||||||||
| Power Supply | Battery | 11.1V/1000mAh(3 series LiPo cells) | ||||||||
| Consumption | 12V input:7.8W | |||||||||
| DC IN | 7-28V/ 2A | |||||||||
| DC OUT |
Output Voltage:DC IN or battery voltage Output Current:1A |
|||||||||
| Dimensions | Main Body | 183X126X19.5mm(not include sun shadow) | ||||||||
| Battery | 105X87.5X6.7 mm(not include prominent part) | |||||||||
| Weight | Main Body | 350g | ||||||||
Flysight Frenquency:
Product Details:
Packing Details:
Package contents:
1*Main Body
1*Sun Shadow
2*SMA Antennas
2*AV Cables
1*DC Input Cable
1*DC output Cable
1*Battery
1*Charger
