D1251 5.8G 40CH FPV Video Glasses Goggles for SKYWAY DRONE
SpeXman One SPX01 5.8GHz FPV Diversity Goggles
Features:
* Picture in picture(PIP) Function makes you watch wireless & foresight cameras meanwhile
* Foresight Camera with wide view angle
* Support HDMI 1.3 input(Max 1920x1080p/60Hz)
* Dual high sensitivity diversity receiving function
* Support Next-Wave&Air-wave VTX without distorted picture
* Multi Channel Option (32 channels, 4 band)
* High quality 3D noise reduction
* PPM remotely controls PIP and Foresight camera
* Support 2S-6S LiPo battery
* Battery reminder in the menu
* Multiple choice of diopter lens
* Support interpupillary distance (IPD):59.5-69.5 mm (Adjustable)
* Cool & Futurist design
Specification:
FOV (field of view): 30 degrees diagonal
Resolution: 854X480(WVGA)
Front Camera: 100 degrees FOV (VGA, 640X480)
Power Supply: 7-28V ( 2S-6S LiPo battery)
Dimensions:169X70X42mm(not include prominent part)
Net Weight: 182g
| Display | FOV | 30 degrees (Diagonal) | ||||||||
| Resolution | 854X480(WVGA) | |||||||||
| Luminance | 350cd/m2 | |||||||||
| Interpupillary distance(IPD) | 59.5—69.5mm(adjustable) | |||||||||
| Wireless Receiver | 5.8GHz ISM frequency | Band | CH 1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 | ||
| B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 | ||
| E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 | ||
| F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 | ||
| Sensitivity | -90dBm±1dBm | |||||||||
| Channel | 32Channel ( 4 Band X 8 Channel ) | |||||||||
| Antenna Port | 2 X SMA,50ohm | |||||||||
| Diversity receiving | Antenna diversity | |||||||||
| TV System | NTSC/PAL auto selecting | |||||||||
| Video output level | 1.0Vp-p Typ,75ohm | |||||||||
| Audio output level | 1.0Vp-p Typ,10Kohm | |||||||||
| Interface | AV IN(Φ3.5,4p) | Video,Stereo Audio input | ||||||||
| HDMI IN(C Type) | Support HDMI 1.3 Digital Input, Support HDMI Audio in | |||||||||
| DIV AV | Diversity receiving, Video,Audio output | |||||||||
| EAR OUT(Φ3.5,3p) | Stereo 16Ω/150mW | |||||||||
| PPM IN(Φ3.5,3p) | Support 8 channel PPM IN | |||||||||
| Front Camera | FOV | 100 degrees (Diagonal) | ||||||||
| Resolution | 640X480(VGA) | |||||||||
| Power Supply | DC IN | 7~28V/ 1A | ||||||||
| Consumption | 6.8W/12V | |||||||||
| Dimensions | 169X70X42mm(not include prominent part) | |||||||||
| Net Weight | 182g80Cel 1 | |||||||||
| Working Temperature | -10℃~+65℃ | |||||||||
Products Show:

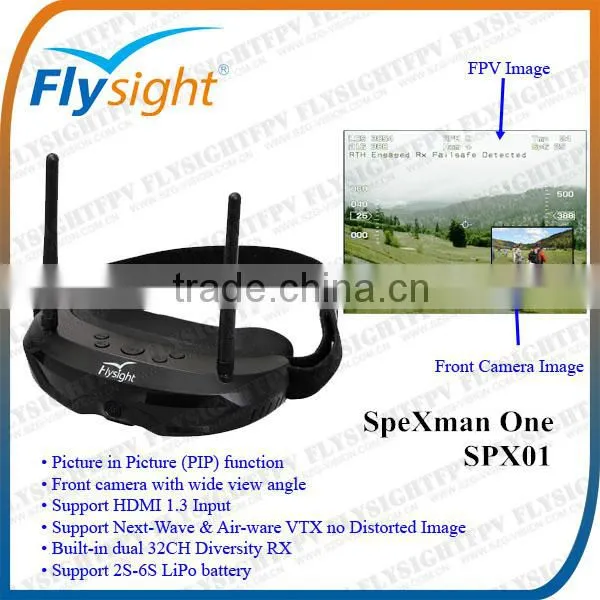

SpeXman One SPX01 Goggles
Package Content:
1*SpeXman One goggles
2*5.8G SMA Antennas
2*AV-Out cables
1*12V DC-Cable with BEC-Plug
1*Cable for Futaba RC
1*Spectacle case
1*Cleaning cloth
1*Manual
Optional Accessories (not included):
Multiple Diopter Lens Optional:200/300/400/500/600 degree optional
