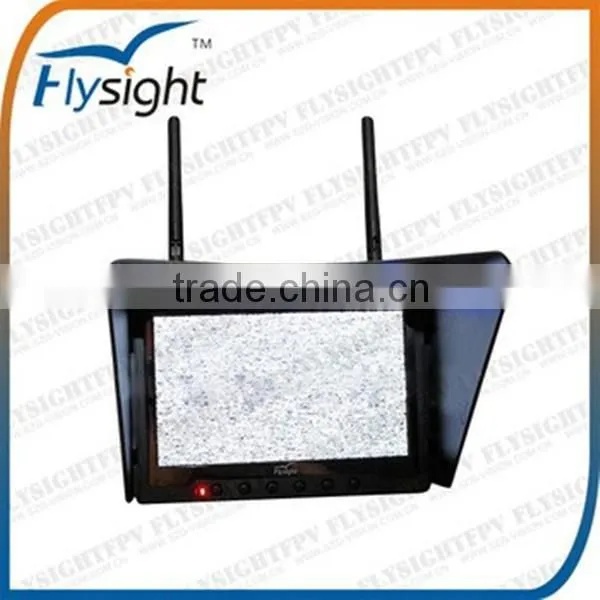

B656 Flysight FPV Black Pearl Diversity Monitor Foldable Sun Shadow RC801 For White Rolling Spider Minidrone

Flysight FPV Black Pearl Diversity Monitor Foldable Sun Shadow RC801 For White Rolling Spider Minidrone

• 7" HD 1024*600 Screen
• Two screen options: Matte screen and Mirror/brilliant screen
• 5 modes support: Diversity/RX1/RX2/AV IN//HDMI mode
• No "blue screen" .
• Support Image Zoom Function;
• Support Fatshark Nextwave&Airwave TX without distorted picture;

• Support image rotation 180 degree;

• Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
• Dual buffered AV outputs
• Can receive 2 different channels at the same time
• Not affect by 2.4GHz R/C Radios
• Anti-black, anti-blue, anti-flash.
• AV Receiver with Diversity inputs,AV, HDMI
• Small, light weight, durable,stylish
• 32 Channels

Display Screen

Diagonal:    7 inch

Resolution: 1024X600

Contrast:    700:1

Luminance: 400cd/m^2

Wireless Receiving

Working frequency:

Sensitivity:      -90dBm±1dBm

Channel:          32Channel ( 4 Band X 8 Channel )

Antenna Port:   2 X SMA,50ohm

Diversity receiving: Antenna diversity

TV System: NTSC/PAL

Video output level: 1.0Vp-p Typ,75ohm

Audio output level:1.0Vp-p Typ,10Kohm

AV Port

RX1 AV OUT:      Video,Audio output

RX2 AV OUT:      Video,Audio output

DIV AV OUT:      Diversity receiving, Video,Audio output

AV IN:            Video,Stereo Audio input HDMI IN(A Type) Support

HDMI:            1.3 Digital Input, Support HDMI Audio in

Built-in Microphone:  8Ω/1W X 2

Power Supply

DC IN:  7~28V/ 2A

DC OUT: Output Voltage:DC IN or battery voltage

                Output Current: 1A

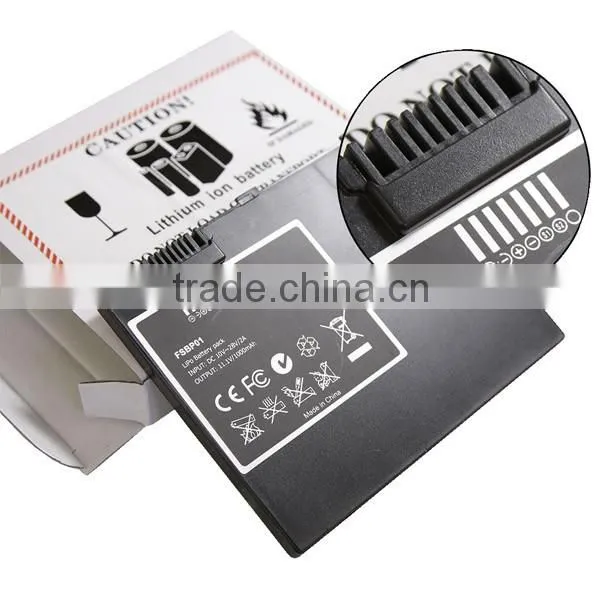

Battery:  11.1V/1000mAh(3 series LiPo cells)

Consumption: 12V input:7.8W Dimensions

Dimensions

Main Body:  183X126X19.5mm(not include sun shadow)

Battery:  105X87.5X6.7 mm(not include prominent part)

Weight

Main body:  350 g

Battery:   95 g

Tripod connector: General 1/4 "thread

Working Temperature: -10°C~+65°C

Main Body:

Battery installation:

Images:

Packing List;

1*RC801

1*sunshadow

2*antenna

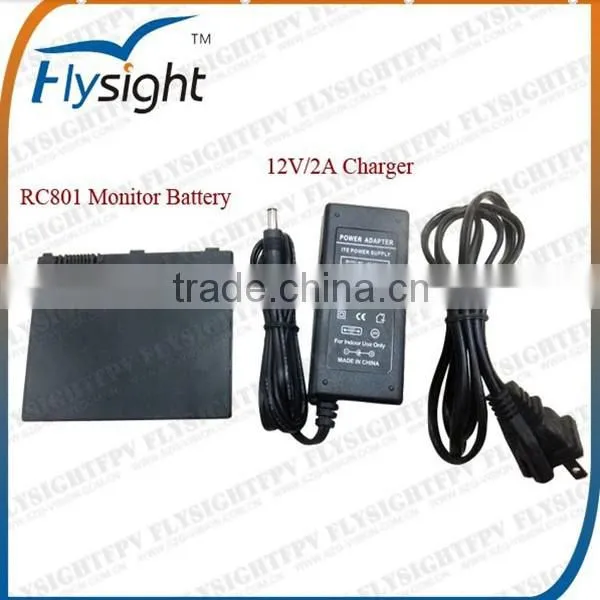

1*battery

AV cable

DC input cable

DC output cable
