G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2

G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 thumbnail-1
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 thumbnail-2
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 thumbnail-3
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 thumbnail-4
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 thumbnail-5
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 thumbnail-6
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 photo-1
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 photo-2
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 photo-3
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 photo-4
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 photo-5
G2786 Flysight Black Pearl RC801 Lite 7 Inch 1280*800 Display Monitor Luminance 400cd/m^2 photo-6
US$ 140 - 185 MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Helicopter
Power:
Battery
Material:
Plastic
Contact Supplier Request Quote Chat Now
Shenzhen Aoweishi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Helicopter
Power Battery
Material Plastic
Plastic Type ABS
Scale 1:5
Radio Control Style RC Model
Place of Origin Guangdong, China
Brand Name flysight
Model Number RC801 Lite



Flysight black Pearl RC801  lite

7 inch HD display monitor





Product Description

1.Features

  • 1.  7 inch 1280*800 display monitor
    2. Support HDMI 1.3 in
    3. Support image Zoom
    4. Support image rotation 180 degree
    5. Optional focus assist & false color
    6. Detachable slim 3S battery
    7. Support 2S-6S Lipo battery

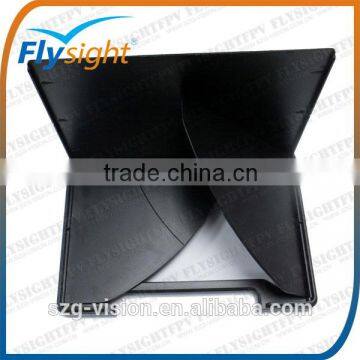

    8. Folded Sun shadow
    9. Support standard bracket
    10. battery volume intuitively showed way

2.Specifications











Display Screen

Diagonal

 7 inch

Resolution

1280*800

Contrast

800:1

Luminance

400cd/m^2

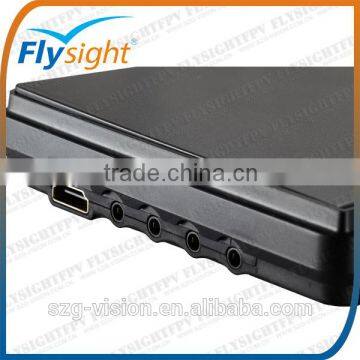

AV Port

AV OUT

Video,Audio output

AV IN

Video,Audio input

HDMI IN (A Type)

Support HDMI 1.3 Input,

Support HDMI Audio in





Power supply

DC IN

7~28V/2A

Battery

11.1V/1000mAh (3S Li-po battery)

Consumption

12V input: 7.2W





Demensions

Main Body

170X129X19.5mm

(not include sun shadow)

Battery

105X87.5X6.7mm

(not include prominent part)



weight

Main Body

460g (include sun shadow,no battery)

battery

90g

Tripod Connector

General 1/4 “thread

Working Temperature

-10℃~ + 65℃

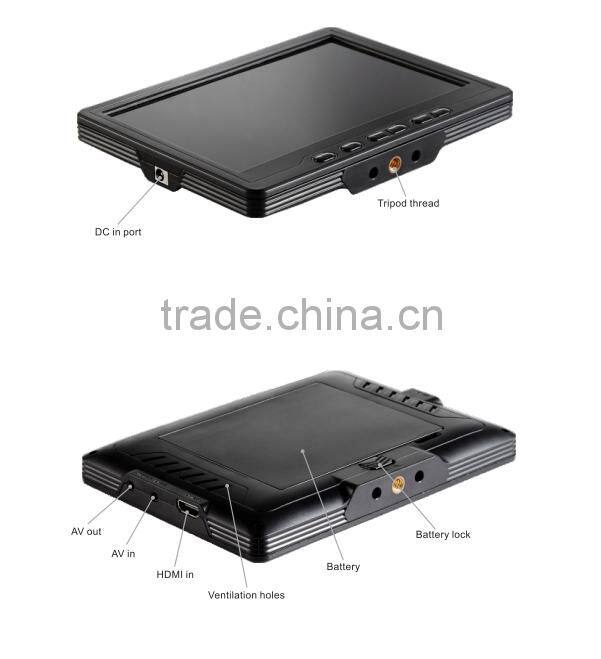

3.Function Icon

G2786 Flysight black Pearl RC801 lite 7 inch 1280*800 display monitor Luminance 400cd/m^2

4. Two versions

  G2786 Flysight black Pearl RC801 lite 7 inch 1280*800 display monitor Luminance 400cd/m^2











Low end version & High end Version



low end version



Display Ratio
In AV IN Mode, press <M> button to display menu,again press <M> button to find <Display ration>, then press <+>/<->button to switch among Full scree /4:3/16:9.
In HDMI IN Mode,press <M> button to display menu,again press <M> button to find <Display ration>, then press <+>/<->button to switch among Full scree/4:3/16:9.



Image Zoom
Press <M> button to display menu,again press <M> button to
find <Zoom>,then press <+>/<->button to switch among off /X2/X4/X6.



Display Flip
In the menu ,Flip Horizontal is for image mirror display,Flip Vertical is for imager upside down display.
press <M> button to display menu,again press <M> button to find <Flip Horizontal> or <Flip Vertical>,
then press <+>/<->button to switch between on/off.



High end Version
Except the above 3 functions in low end version of the RC801 Lite,
for this high end version, there are more Great function as below.



Ratio Mark
Press <M> button to function menu,again press <M> button to
find <Ratio Mark>, then press <+>button to find aspect ratio (OFF/4:31.66:12:12.2:12.35:116:916:101.85:1),
then press <∨> or <∧> to choose the aspect ratio, last press <M> to confirm; or use <∨> Ratio Mark shortcut key
to realize this function directly.



Central Mark
Press <M> button to function menu,again press <M> button to find <central mark>,
then press <+>/<->button to switch between on/off.



False Color
Press <M> button to function menu,again press <M> button to find <False Color>,
then press <+>/<->button to switch between on/off. or use <-> false color shortcut key to realize this function directly.



Assist Focus
Press <M> button to function menu,again press <M> button to find <Assist Focus>,
then press <+>/<->button to switch between on/off. or use <+> false color shortcut key to realize this function directly.

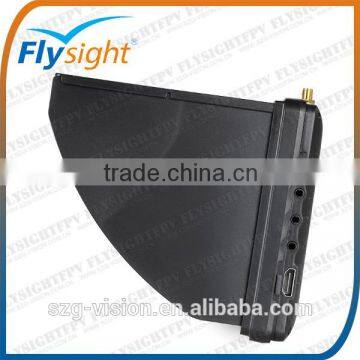

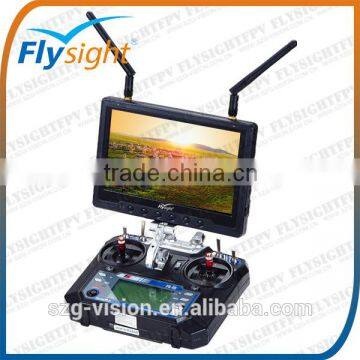

Product Image

 Black Pearl  RC801 Lite

G2786 Flysight black Pearl RC801 lite 7 inch 1280*800 display monitor Luminance 400cd/m^2G2786 Flysight black Pearl RC801 lite 7 inch 1280*800 display monitor Luminance 400cd/m^2G2786 Flysight black Pearl RC801 lite 7 inch 1280*800 display monitor Luminance 400cd/m^2G2786 Flysight black Pearl RC801 lite 7 inch 1280*800 display monitor Luminance 400cd/m^2G2786 Flysight black Pearl RC801 lite 7 inch 1280*800 display monitor Luminance 400cd/m^2G2786 Flysight black Pearl RC801 lite 7 inch 1280*800 display monitor Luminance 400cd/m^2G2786 Flysight black Pearl RC801 lite 7 inch 1280*800 display monitor Luminance 400cd/m^2

















Black pearl kits  RC801 Lite including:



Packing Details
1*Main Body
1*Sun Shadow
2*AV Cable
1*DC Input Cable
1*Battery
1*Charger
