stainless steel instrument manifolds water/gas/oil 2-valve manifolds direct mount manifold

3 valves/5 valves/ direct mount manifold brief :

1. Instrument manifold are manufactured in accordance with ANSI B31.1, B31.3 and MSS-SP-105
2. 2-valve manifold are used with pressure gauges or pressure transmitters
3. 3-valve and 5-valve manifold are used with differential pressure transmitters
4. Working pressures up to 6000 psig (413 bar)
5. Working temperatures from -65℉ to 1200℉ (-54℃ to 649℃)
6. Orifice: 0.157 in. (4.0 mm), CV: 0.35

Features of direct mount manifold :

1. direct mount manifold working pressures:
Stainless steel up to 6000 psig (413 bar)
Alloy C-276 up to 6000 psig (413 bar)
Alloy 400 up to 5000 psig (345 bar)
2. direct mount manifold Working temperatures:
PTFE packing from -65℉ to 450℉ (-54℃ to 232℃)
Graphite packing from -65℉ to 1200℉ (-54℃ to 649℃)
3. direct mount manifold Orifice: 0.157 in. (4.0 mm), CV: 0.35
4. Upper stem and lower stem design, Stem threads above packing protected from system media
5. Safety back seating seals in fully open position
6. Testing for every valve with nitrogen at the maximum working pressure

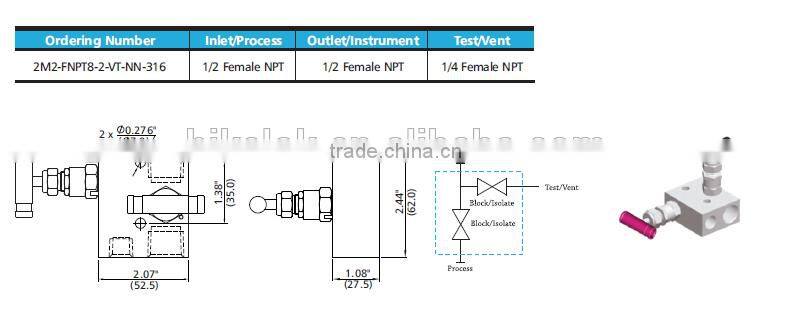

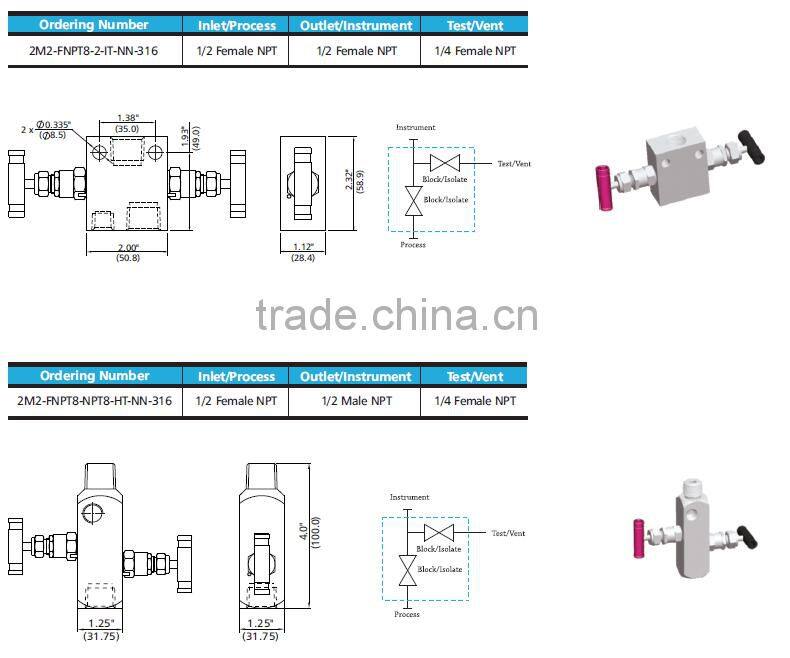

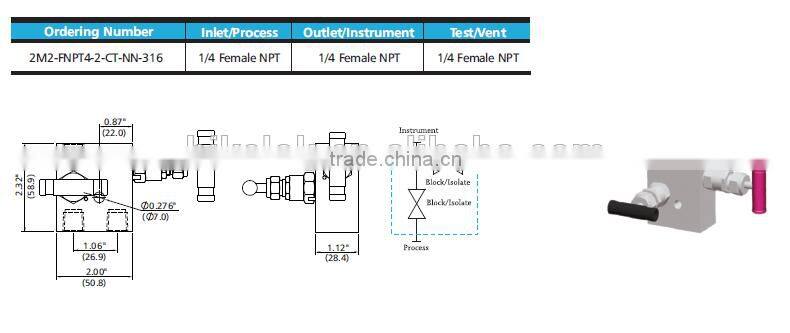

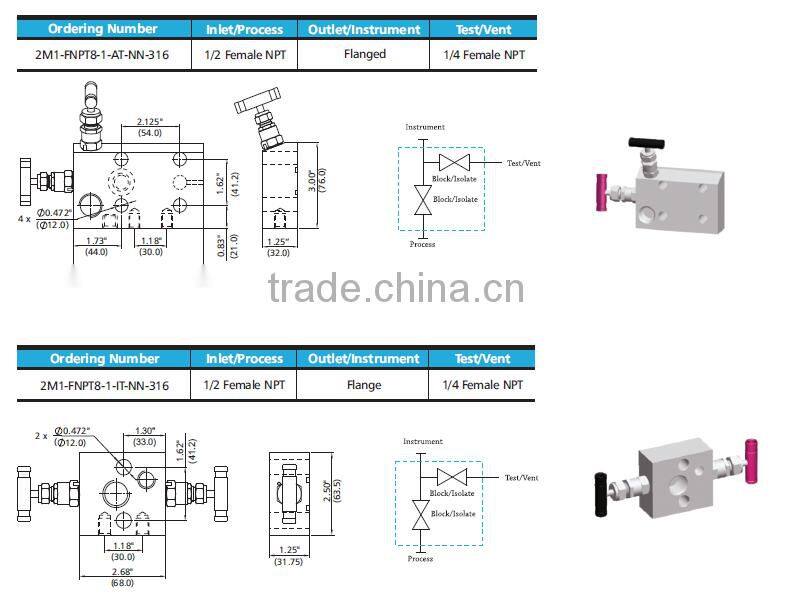

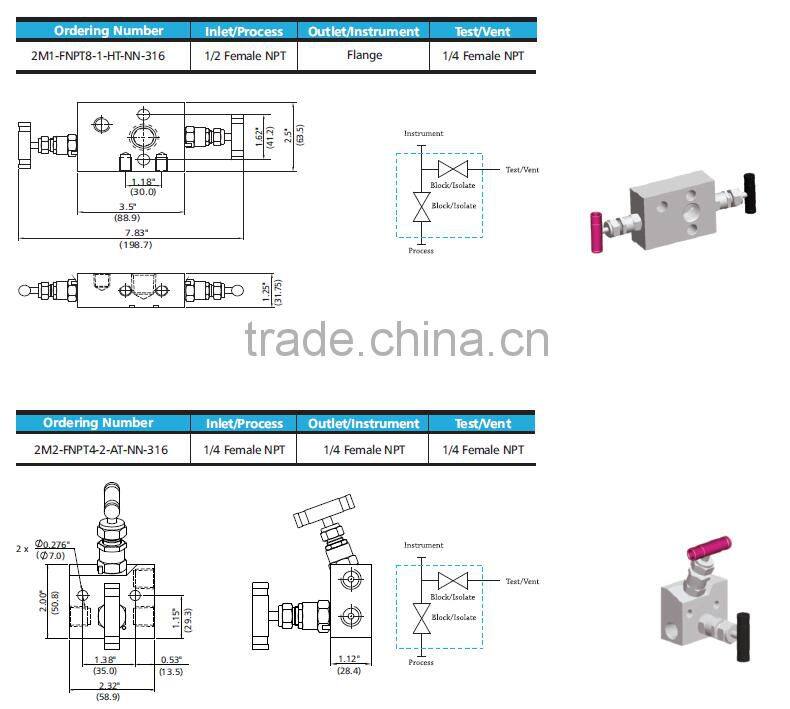

Structure display of the direct mount manifold :

Packaging of the direct mount manifold  :

Shipping of the direct mount manifold :

Advantages of direct mount manifold :

Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable

Quality Control: We have been engaged in valve design for many year and can guarantee best quality

Experienced Sales Team: Our sales team is experienced, and they all know our product well.

About Price: we provide very reasonable and competitive price for you

What we can :

1)Annual Revenue: several million dollars

2)About QC: Excellent and quality first is our philosophy

3)Sales Market: Europe,North America,Southeast Asia and Brazil etc..

4)Main Products:  Compression Tube Fittings,Pipe Fittings, Needle Valves, Instrument Ball Valves,

2&3&5 way Valve Manifolds, Check Vlaves, Gate Valves, Block&Bleed Valve, Sample Cylinders, Relief Valves,

Syphons, Globe Valves, Plug Valves, Tube.

• Passed ISO9001-2000 & 2008
• Supply OEM/ODM Manufacturing.
• Designed and manufactured to intermix and interchange and major global brands.
• 0.5 Hour's Drive from Chengdu Shuangliu Airport.

Hike Fluid Equipment Co., Ltd. now has more than 100 staff members, 20% of them are professionals who have rich experience in this field. The rich experience in product development we accumulated ensures us to customize products for the practical application needs of customers. We  have more than 50 sets of precision CNC lathes, machining centers, slitting machines, cape cars, millings, sawing machines, washing, drying and testing equipment. Inspection center is equipped with a large number of test equipment and calibration standard parts, such as spectrometer, metallurgical microscope, quadratic element, projector, sclerometer, etc. We set up inspection test equipment calibration system and the maintenance management system.

The main products of Hike Fluid Equipment Co., Ltd. include needle valves, ball valves, instrument manifolds, bellows valves, check valves, twin ferrules series tube fittings, instrument pipe fittings, weld fittings and other kinds of instrumentation valves and fittings. We can provide stainless steel, alloy steel, brass, special alloy and carbon steel. The product executive standard of the company is ANSI, ASME, ASTM, API, MSS, ISO, EN, GB, JB, HG, etc.

1.  If you can provide the direct mount manifold after-service ?

       Yes, in our company we have many experienced technology staff for you to provide any after-service at any time.

2.  If you can provide direct mount manifold OEM design ?

        Yes, we can according to the demand of customers to design these products which suit for them.

 3. How about your delivery time direct mount manifold ?

         Normally,  within 7-15 days, large order should be negotiated.

If you are interested in our products direct mount manifold ,pls dont hesitate contact me and I will give you feedback at the first time. I will provide you the best service and the best peoducts quality, thanks in advance.
