304 ss 5 way instrument manifolds 5 valve for oil
- 1000 Piece / Pieces per Month
- Shanghai shenzhou xiamen
- T/T L/C D/P D/A Credit Card PayPal
- 304 stainless steel 3 way water gas oil valve manifolds valve
- water/gas/Oil instrument manifolds stainless steel manifolds control valves
- chemistry/water/gas/oil 3/5/2-valve manifolds stainless steel instrument manifolds alloy 20 manifold
- chemistry/water/gas/oil 3/5/2-valve manifolds stainless steel instrument manifolds titanium manifold
- chemistry/water/gas/oil 3/5/2-valve manifolds stainless steel instrument manifolds 304L manifold
- chemistry/water/gas/oil 3/5/2-valve manifolds stainless steel instrument manifolds 316L manifold
Product Details
Standard or Nonstandard: | Standard | Structure: | Needle | Pressure: | High Pressure |
Power: | Manual | Material: | Other, Stainless Steel, 316/316L/304/304L/ Brass/alloy | Temperature of Media: | High Temperature |
Media: | Oil | Port Size: | 1/4" to 1", 6mm to M20x1.5 | Place of Origin: | Sichuan, China |
Model Number: | 5-valve | Brand Name: | Hikelok | Application: | General |
Packaging Details
1.industrial packing: plastic bag+carton+wooden pallets
2.commercial packing:plastic bag+carton+wooden pallets
3.as the clients' requirement
Product Description
304 ss 5 way instrument manifolds 5 valve for oil
Product description
Features:
working pressures:
Stainless steel up to 6000 psig (413 bar)
Alloy C-276 up to 6000 psig (413 bar)
Alloy 400 up to 5000 psig (345 bar)
Working temperatures:
PTFE packing from -65℉ to 450℉ (-54℃ to 232℃)
Graphite packing from -65℉ to 1200℉ (-54℃ to 649℃)
Orifice: 0.157 in. (4.0 mm), CV: 0.35
Upper stem and lower stem design, Stem threads above packing protected
from system media
Safety back seating seals in fully open position
Testing for every valve with nitrogen at the maximum working pressure
general information:
Instrument manifold are manufactured in accordance with ANSI B31.1, B31.3 and MSS-SP-105
2-valve manifold are used with pressure gauges or pressure transmitters
3-valve and 5-valve manifold are used with differential pressure transmitters

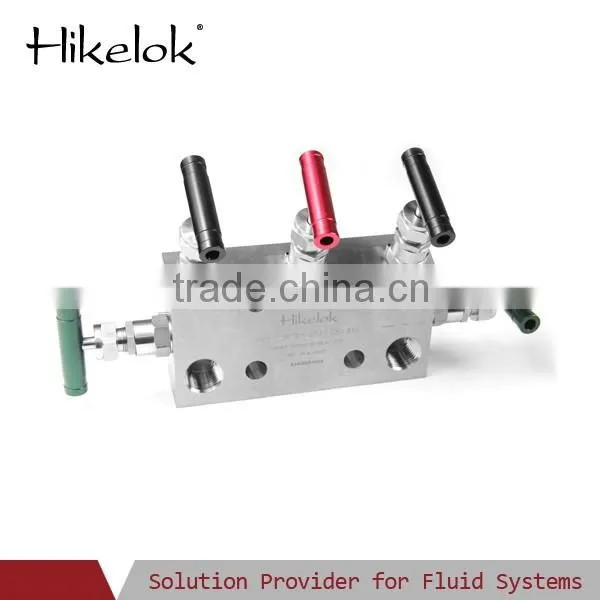

Product show

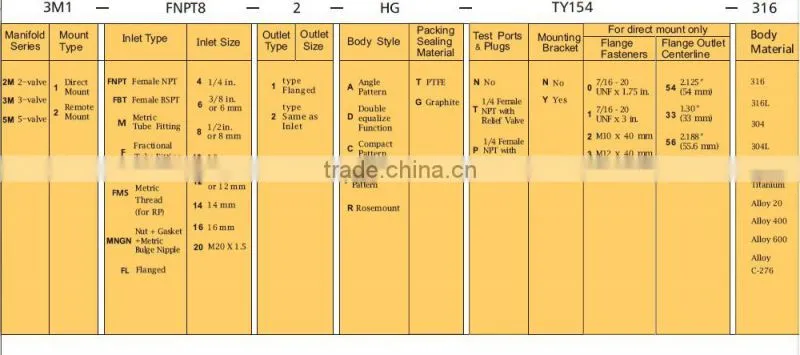

How to order
The other type instrument manifolds

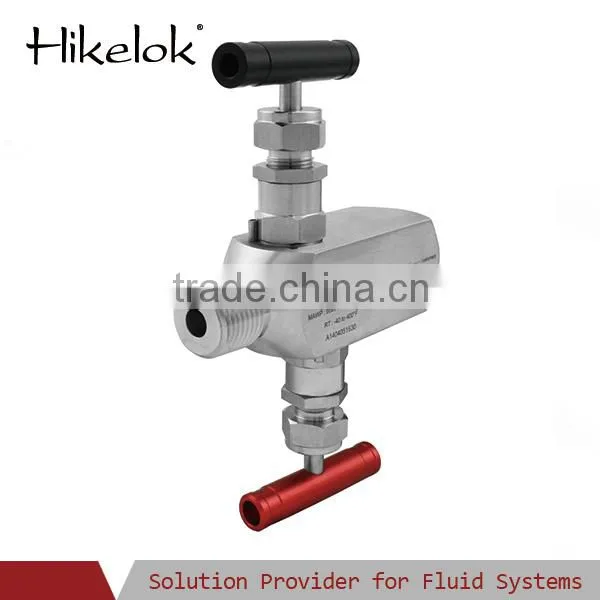

2-valve manifolds
The 3-valve manifolds
Company information
- Passed ISO9001-2000 & 2008
- Supply OEM/ODM Manufacturing.
- Designed and manufactured to intermix and interchange Swagelok ® and major global brands.
- 0.5 Hour's Drive from Chengdu Shuangliu Airport.
shipping and packaging
Company Profile
Hike Fluid Equipment Co., Ltd. was established in 2011. We are located in industry concentration development Zone in Chongzhou. The registered capital of the company is RMB3 million and we cover an area of 4,000 square meters. The company is formerly known as the fluid business unit of Chengdu Haiwang Precision Equipment Co., Ltd. In order to satisfy the increasing needs of our business, we set up Hike Fluid Equipment Co., Ltd. The fluid business unit of Chengdu Haiwang Precision Equipment Co., Ltd. has focused on precision fluid fittings and valves for more than 10 years. For the accumulated experience, our products have achieved a good reputation in Chinese market, especially the instrumentation fittings and valves, which can be equal to the international well-known companies. We have impeccable management system in quality and strict product test program to ensure valves and fittings have excellent quality when they leave the factory.
Hike Fluid Equipment Co., Ltd. now has more than 100 staff members, 20% of them are professionals who have rich experience in this area. The rich experience in product development we accumulated ensures us to customize products for the practical application needs of customers. The fixed assets of our company is more than 10 million and we have more than 50 sets of precision CNC lathes, machining centers, slitting machines, cape cars, millings, sawing machines, washing, drying and testing equipment. Inspection center is equipped with a large number of test equipment and calibration standard parts, such as spectrometer, metallurgical microscope, quadratic element, projector, sclerometer, etc. We set up inspection test equipment calibration system and the maintenance management system.
The main products of Hike Fluid Equipment Co., Ltd. include needle valves, ball valves, instrument manifolds, bellows valves, check valves, twin ferrules series tube fittings, instrument pipe fittings, weld fittings and other kinds of instrumentation valves and fittings. We can provide stainless steel, alloy steel, brass, special alloy and carbon steel. The product executive standard of the company is ANSI, ASME, ASTM, API, MSS, ISO, EN, GB, JB, HG, etc. Our products are widely used in power generation, petroleum, petrochemical, natural gas, semiconductor, laboratory, shipbuilding, steel, chemical industry and other fields.
