Home > Industrial Equipment & Components > Valve > Ball Valve > Spring Loaded Ss316 Check Valve Male Female NPT 6000 Psi Non Return Valve, One Way Valve

Spring Loaded Ss316 Check Valve Male Female NPT 6000 Psi Non Return Valve, One Way Valve

Spring Loaded Ss316 Check Valve Male Female NPT 6000 Psi Non Return Valve, One Way Valve thumbnail-1
Spring Loaded Ss316 Check Valve Male Female NPT 6000 Psi Non Return Valve, One Way Valve photo-1
US$ 15 - 90 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Sichuan Hike Fluid Equipment Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Check
Pressure High Pressure
Power Manual
Material Stainless Steel
Temperature of Media High Temperature
Media Gas
Port Size 1/8" -2"
Place of Origin Sichuan, China
Model Number CV2
Brand Name Hikelok
Application General

spring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valve







Product Description



spring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valvespring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valvespring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valvespring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valvespring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valvespring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valve



1. Specs





Maximum working pressure up to 6000 psig (413 bar)
Working temperature from -10F to 375 F (-23 C to 190 C)
with bonded elastomer seal structure design
Liquid or gas service
Cracking pressure: 1/3, 1, 3, 10, and 25 psig (0.03, 0.07, 0.21, 0.69, and 1.8 bar)
Variety of end connections and materials available

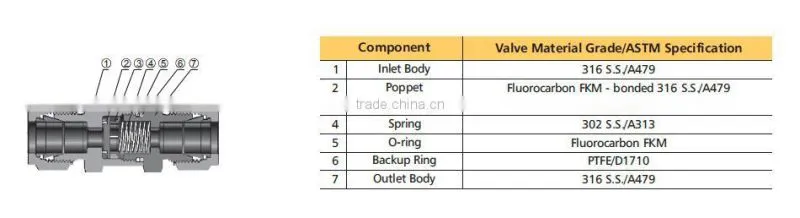

2. Standard Material Of construction

spring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valve

3. Pressure VS.Temperature

spring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valve

4. Seal Material

spring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valve





5. How to Order

spring loaded ss316 check valve male female NPT 6000 psi non return valve, one way valve



Packing &Shipping



1. Packing













2.Shipping







For small order or urgent order, we normally send the goods by courier.



For big order, the goods can be sent by sea





Our Service

  You should make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance, function, material compatibility, adequate ratings, proper installation, operation and maintenance are the responsibilities of the system designer and user. From quote to delivery, we can provide the detailed support you need.

1. CAD drawing

 2. P&ID

3. Component selection

4. Bill of material

5. Professional services such as bending and welding

6. Testing to guarantee the system

7. Professional packaging and delivery



Comapny Information









  • Passed ISO9001-2000 & 2008
  • Supply OEM/ODM Manufacturing.
  • Designed and manufactured to intermix and interchange Swagelok ® and major global brands.



Hike Fluid Equipment Co., Ltd. now has more than 100 staff members, 20% of them are professionals who have rich experience in this field. The rich experience in product development we accumulated ensures us to customize products for the practical application needs of customers. We  have more than 50 sets of precision CNC lathes, machining centers, slitting machines, cape cars, millings, sawing machines, washing, drying and testing equipment. Inspection center is equipped with a large number of test equipment and calibration standard parts, such as spectrometer, metallurgical microscope, quadratic element, projector, sclerometer, etc. We set up inspection test equipment calibration system and the maintenance management system.







The main products of Hike Fluid Equipment Co., Ltd. include needle valves, ball valves, instrument manifolds, bellows valves, check valves, twin ferrules series tube fittings, instrument pipe fittings, weld fittings and other kinds of instrumentation valves and fittings. We can provide stainless steel, alloy steel, brass, special alloy and carbon steel. The product executive standard of the company is ANSI, ASME, ASTM, API, MSS, ISO, EN, GB, JB, HG, etc.



FAQ



1. What is the acceptable MOQ?



 For this   6000 psi check valve , our acceptable MOQ is 1pc. Any trial order in small quantity is welcome.



 2. What is the Delivery time?



 For samples,we usually have them in stock, so the delivery time will be quite short .



 For normal order, the delivery time should be in 2 weeks.



 3.What is the acceptable payment term?



 T/T, Paypal ,Western Union, MoneyGram, L/C, D/A, D/P

Super duplex 2507 Titanium  wafer check valve 1/8" 1/4" 3/8" 1/2" 3/4"  male female NPT 6000 psi check valve
