stainless steel high pressure 1/4 1/4" inch male female npt bspt OD compression ball valve
Product Description( compression ball valve )
1. Specs
Maximum working pressure up to 3000 psig (206 bar)
Working temperature: -65°F to 300°F (-54°C to 148°C)
2-way (On-Off), 3 5 7-way (Switching), 4 6-way (Crossover) models for service
One-piece body and one piece seat and packing
No dead space, easily cleaned and purged
Live-loaded packing reduces adjustment
Top-loaded design allows adjustment with the valve in-line
Handle of different colors available
316 stainless steel, brass and alloy body material
End connection size from 1/16' to 1/2' or 3 mm to 12 mm

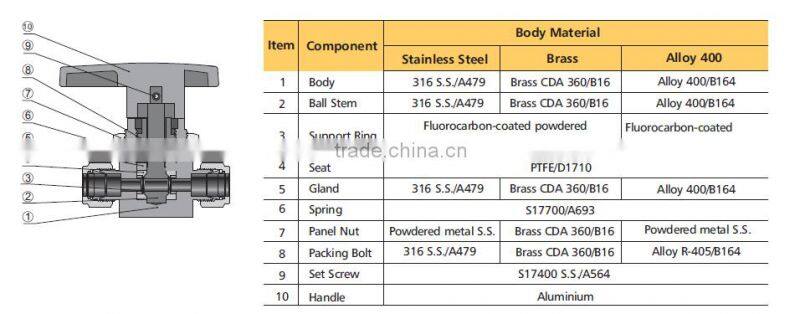

2. Standard Material Of Construction ( compression ball valve )

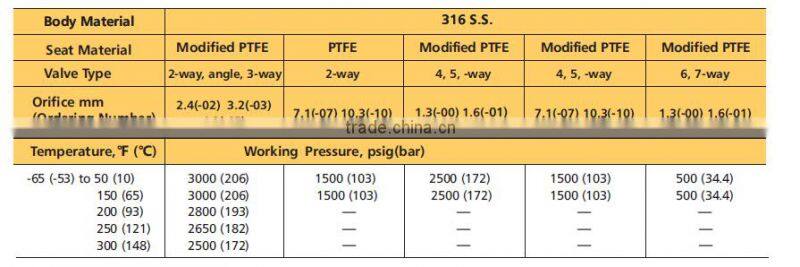

3. Pressure VS. Temperature

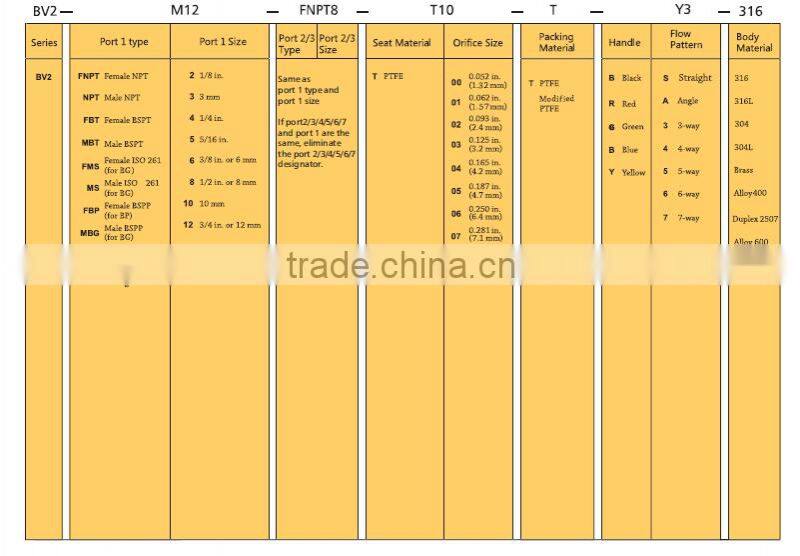

4. How to order

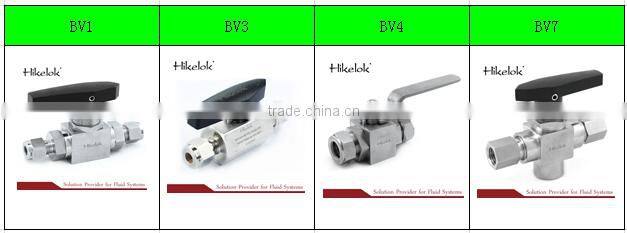

5. Other Ball Valve you may like
Packing &Shipping
1. Packing
2. Shipping
Our Service
1. CAD drawing
2. P&ID
3. Component selection
4. Bill of material
5. Professional services such as bending and welding
6. Testing to guarantee the system
7. Professional packaging and delivery
Comapny Information
- Passed ISO9001-2000 & 2008
- Supply OEM/ODM Manufacturing.
- Designed and manufactured to intermix and interchange Swagelok ® and major global brands.
Hike Fluid Equipment Co., Ltd. now has more than 100 staff members, 20% of them are professionals who have rich experience in this field. The rich experience in product development we accumulated ensures us to customize products for the practical application needs of customers. We have more than 50 sets of precision CNC lathes, machining centers, slitting machines, cape cars, millings, sawing machines, washing, drying and testing equipment. Inspection center is equipped with a large number of test equipment and calibration standard parts, such as spectrometer, metallurgical microscope, quadratic element, projector, sclerometer, etc. We set up inspection test equipment calibration system and the maintenance management system.
The main products of Hike Fluid Equipment Co., Ltd. include needle valves, ball valves, instrument manifolds, bellows valves, check valves, twin ferrules series tube fittings, instrument pipe fittings, weld fittings and other kinds of instrumentation valves and fittings. We can provide stainless steel, alloy steel, brass, special alloy and carbon steel. The product executive standard of the company is ANSI, ASME, ASTM, API, MSS, ISO, EN, GB, JB, HG, etc.
FAQ
1. What is the acceptable MOQ?
For this compression ball valve , our acceptable MOQ is 1pc. Any tral order in small quantity is welcome.
2. What is the Delivery time?
For samples,we usually have them in stock, so the delivery time will be quite short .
For normal order, the delivery time should be in 2 weeks.
3.What is the acceptable payment term?
T/T, Paypal ,Western Union, MoneyGram, L/C, D/A, D/P
stainless steel high pressure 1/4 1/4" inch male female npt bspt OD compression ball valve
