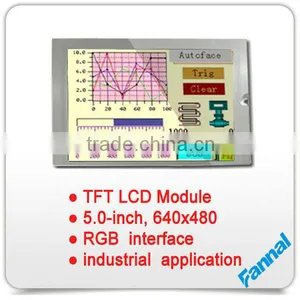

5" TFT LCD Display Module 640x480 With RGB Interface For Industrial Use
US$ 38 - 71
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Fannal
Model Number:
FM-I050640480-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port or Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3.5 Inch 320x480 Color TFT-LCD With Capacitive Touch ScreenUS$ 1 - 30MOQ: 1 Piece -
3.5 Inch 320x480 Dots Color TFT With Capacitive Touch PanelUS$ 1 - 30MOQ: 1 Piece
-
7 Inch TFT Touch Screen 800x480 Dots Capacitive TouchUS$ 1 - 50MOQ: 1 Piece
-
5.7" Tft Lcd Display 640x480 for Industrial UseUS$ 31 - 45MOQ: 1 Piece
-
Display 320x240 With RGB Interface for Industrial Application 3.5 Inch Pcap Touch PanelUS$ 10 - 18MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Fannal
Model Number
FM-I050640480-01
Type
TFT
Product Name: 5" TFT LCD display Module 640x480 With RGB Interface For Industrial Use
Fannal provides a range of Automotive and Industrial grade small to medium sized TFT modules. They are suitable for a multitude of applications from Instrumental Clusters, Center Information Systems and Thermal Controllers in vehicles as well as Medical Equipment, White Goods and High-end Consumer Products. Our displays are available with digital interface and are semi or fully customizable to suit your requirements.
Key features:
- Enormous range of resolution (e.g. QVGA, WVGA, SVGA)
- Super High contrast
- Brilliant brightness
- High Colour Saturation
- Full viewing angles
- Fast response time
General Description
1>5.0",640xRGBx480 dots, normally white ,transmissive,262K colors,amorphous silicon,digital TFT LCD module.
2>Viewing angle:6 o'clock(Highest contrast), 12 o'clock(Widest viewing).
3>Pixel in stripe configuration.
4>FPC connection.
5>White LED backlight.
6>Hard coat.
Mechanical Specifications:
| Parameter | Specifications | Unit |
| Outline dimensions | 119.3(W)x91.4(H)x7.6(typ) | mm |
| Bezel openning | 106.7(W)x78.5(H) | mm |
| Active area | 101.76(W)x74.9(H) | mm |
| Display format | 640xRGBx480 | dots |
| Pixel configuration | RGB stripe | - |
| Pixel Pitch | 0.159(RGB)(W)x0.156(H) | mm |
TFT Represent Specifications Options as following:
| Basic information | TFT | CTP | |||||||
| Panel size | P/N | Resolution | LCD AA (mm) | Outline (mm) | Th (mm) |
Brightness (cd/m2) | Interface | Touch points | CTP IC |
| 2.8 | FN028MV02 | QVGA 240*320 | 43.2*57.6 | 50.4*69.6 | 4.6 | 350 | RGB | 2 touch | SSD2532 |
| 3.5 | FN035MY01 | HVGA 320*480 | 48.96*73.44 | 94.94*66.86 | 3.7 | 300 | RGB | 2 touch | MSG2133A |
| 4.3 | FN043MY02 |
WQVGA 480*272 |
95.04*53.86 | 118.0*77.0 | 4.48 | 300 | RGB | 3 touch | MSG2138A |
| FN043MV04 | WQVGA 480*272 | 95.04*53.86 | 115.1*81.0 | 5.35 | 360 | RGB | 5 touch | SSD2533 | |
| 5.0 | FN050MV02 | WVGA 800*480 | 108.0*64.8 | 120.7*76.3 | 4.9 | 315 | 24bit TTL with T-CON | 2 touch | SSD2532 |
FN050MY01 |
WVGA 800*480 | 108.0*64.8 | 127.0*85.8 | 4.8 | 250 | RGB | 5 touch | FT5316 | |
| FN050MF01 | WVGA 800*480 | 108.0*64.8 | 127.0*85.8 | 4.5 | 800 | RGB | 5 touch | FT5316 | |
| 5.7 | FN057MV01 | VGA 640*480 | 115.2*86.4 | 130.9*104.8 | 13.0 | 1600 | 24bit TTL with T-CON | 2 touch | SSD2533 |
| 7.0 | FN070MV01 | WVGA 800*480 | 154.08*85.92 | 164.9*100.0 | 7.74 | 360 | 24bit TTL with T-CON | 2 touch | SSD2533 |
| FN070MV02 | WVGA 800*480 | 154.08*85.92 | 164.9*100.0 | 7.74 | 360 | 24bit TTL with T-CON | 2 touch | SSD2533 | |
| FN070MY03 | WVGA 800*480 | 154.08*85.92 | 164.9*100.0 | 7.32 | 360 | 24bit TTL with T-CON | 5 touch | FT5316 | |
|
FN070MY99825
|
1024*600 | 153.6*90.00 | 176.14*111.89 | 6.68 | 500 | RGB | 2 touch | S7020 | |
| FN070M01-2V6.0 | WVGA 800*480 | 154.08*85.92 | 164.9*100.0 | 7.7 | 250 | RGB | 5 touch | CYTMA568 | |
| 8.0 | FN080MV01 | SVGA 800*600 | 162.0*121.5 | 176.9*140.2 | 14.5 | 600 | LVDS | 2 touch | SSD2533 |
| FN080M01-V2.0 | SVGA 800*600 | 162.0*121.5 | 183*141 | 7.88 | 300 | RGB | 2 touch | FT5406 | |
| FN080M02 | SVGA 800*600 | 162.0*121.5 | 183*141 | 8.1 | 550 | RGB | 2 touch | SSD2533 | |
| 10.2 | FN102MV01 | WVGA 800*480 | 222.0*133.2 | 253.6*162.6 | 12.0 | 425 | 18bit TTL with T-CON | 10 touch | SSD2533 |
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2011
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
