Sunlight readable capacitive touch 7 inch lcd car touch screen
| Product Specification | ||
| No. | Item | Specification |
| 1 | Type | LCD with Capacitive Touch Panel |
| 2 | Model Number | FN070MV01 |
| 3 | Size | 7 inch |
| 4 | Resolution | 800*480 |
| 5 | Luminance | 360 cd/m2 |
| 6 | CTP Structure | G+G |
| 7 | Touch Controller | SSD2533 |
| 8 | Touch Points | 2 Touch |
| 9 | Active Area | 154.08*85.92 mm |
| 10 | Outline Dimension | 164.9*100*7.74 mm |
| 11 | CTP Interface | I2C |
| 12 | TFT Interface | 24 bit TTL with T-CON |
| 13 | Surface Hardness | 6H |
| 14 | CTP Transmittance | > 86% |
| 15 | Operating Temp | -20℃ ~+70℃ |
| Business Information | ||
| 1 | Terms of Delivery | FOB |
| 2 | MOQ | 1K |
| 3 | Lead Time | 4 ~8 weeks |
| 4 | Payment | 50% deposit and 50% balance before shipment |

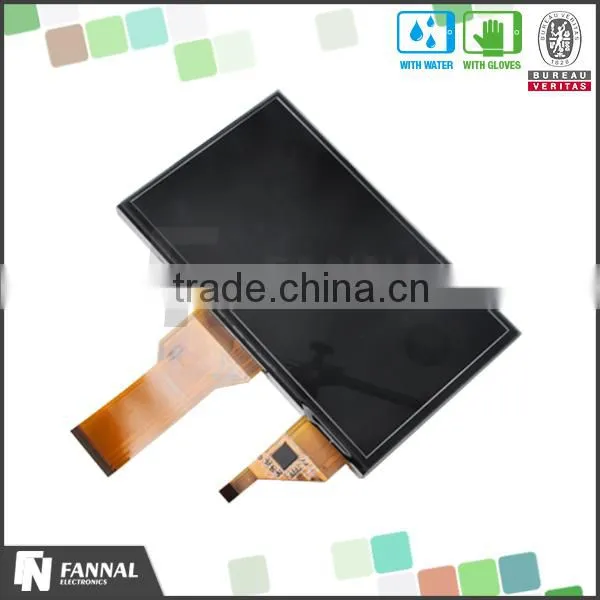

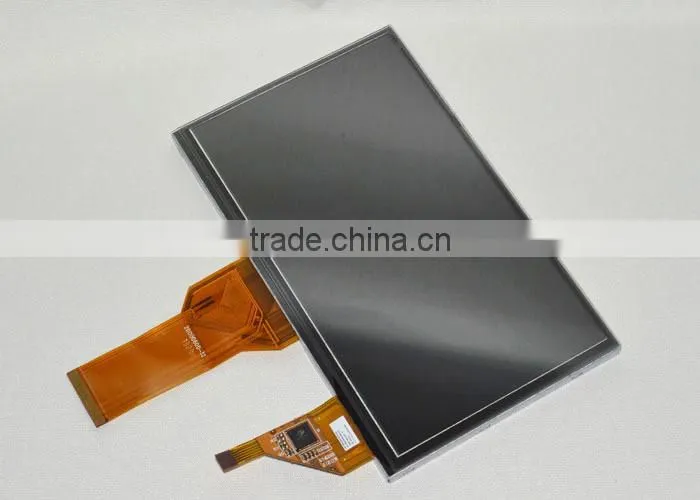

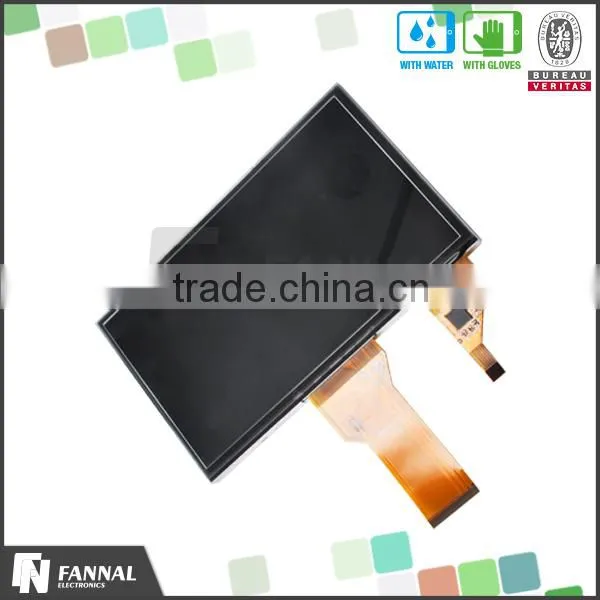

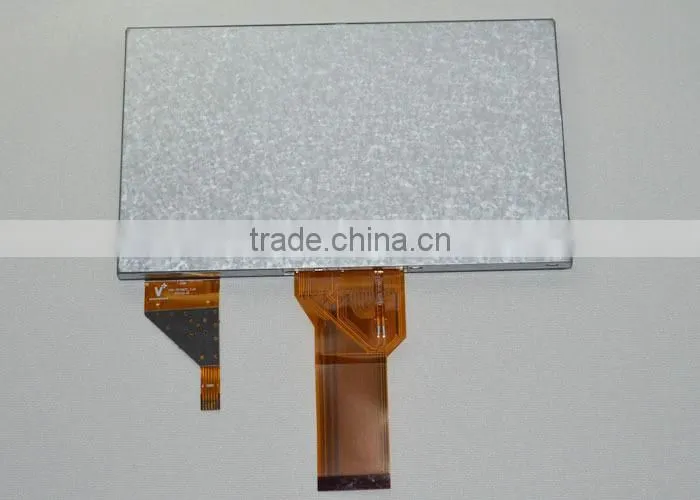

Photos of our 7 inch touch screen module
Why we apply G+G structure
G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have
ITO coating so that it can be sensitive. There are many advantages of G+G structure:
1. High durability, function and appearance do not change at least 5 years. Anti-aging, anti-yellow, no
peeling, excellent corrosion resistance and ultraviolet resistance.
2. High transparency, >86%.
3. Fast response time when touching.
4. Very firm performance.
Fannal's hot products of capacitive touch panel
| Size | P/N | Resolution | LCD AA | Outline | Th | Luminance | Interface | CTP IC | Touchs |
| 2.8 | FN028MV02 | 240*320 | 43.2*57.6 | 50.4*69.6 | 4.6 | 350 | RGB | SSD2532 | 2touch |
| FN028MY99817 | 240*320 | 43.2*57.6 | 58.0*98.0 | 4.8 | 250 | RGB/SPI | MSG2133A | 2touch | |
| 3.5 | FN035MY01 | 320*480 | 49.0*73.4 | 94.9*66.9 | 3.7 | 300 | RGB | MSG2133A | 2touch |
| 4.3 | FN043MY02 | 480*272 | 95.0*53.9 | 118.0*77.0 | 4.5 | 300 | RGB | MSG2138A | 3touch |
| FN043MV04 | 480*272 | 95.0*53.9 | 115.1*81.0 | 5.4 | 360 | RGB | SSD2533 | 5touch | |
| 5.0 | FN050MV02 | 800*480 | 108.0*64.8 | 120.0*76.3 | 4.9 | 315 | 24bit TTL with T-CON | SSD2532 | 2touch |
| FN050M02-V1.0 | 800*480 | 108.0*64.8 | 120.7*76.3 | 4.7 | 800 | Digital | CYTMA568 | 10touch | |
| FN050MY01 | 800*480 | 108.0*64.8 | 127.0*85.8 | 4.8 | 250 | RGB | FT5316 | 5touch | |
| FN050MF01 | 800*480 | 108.0*64.8 | 127.0*85.8 | 4.5 | 800 | RGB | FT5316 | 5touch | |
| 5.7 | FN057MV01 | 640*480 | 115.2*86.4 | 130.9*104.8 | 13.0 | 1600 | 24bit TTL with T-CON | SSD2533 | 2touch |
| 7.0 | FN070MV01 | 800*480 | 154.1*85.9 | 164.9*100.0 | 7.7 | 360 | 24bit TTL with T-CON | SSD2533 | 2touch |
| FN070MV02 | 800*480 | 154.1*85.9 | 164.9*100.0 | 7.7 | 360 | 24bit TTL with T-CON | SSD2533 | 2touch | |
| FN070MY03 | 800*480 | 154.1*85.9 | 164.9*100.0 | 7.3 | 360 | 24bit TTL with T-CON | FT5316 | 5touch | |
| FN070MY99825 | 1024*600 | 153.6*90.0 | 176.1*111.9 | 6.7 | 500 | RGB | S7020 | 2touch | |
| FN070M01-2V6.0 | 800*480 | 154.1*85.9 | 164.9*100.0 | 7.7 | 250 | RGB | CYTMA568 | 5touch | |
| 8.0 | FN080MV01 | 800*600 | 162.0*121.5 | 176.9*140.2 | 14.5 | 600 | LVDS | SSD2533 | 2touch |
| FN080M01-V2.0 | 800*600 | 162.0*121.5 | 183.0*141.0 | 7.9 | 300 | RGB | FT5406 | 2touch | |
| FN080M02 | 800*600 | 162.0*121.5 | 183.0*141.0 | 8.1 | 550 | RGB | SSD2533 | 2touch | |
| 10.1 | FN101MV01 | 1024*600 | 222.7*125.3 | 234.0*142.0 | 7.0 | 425 | 18bit TTL with T-CON | SSD2533 | 10touch |
| 10.2 | FN102MV01 | 800*480 | 222.0*133.2 | 253.6*162.6 | 12.0 | 425 | 18bit TTL with T-CON | SSD2533 | 10touch |
Why FANNAL
1. Standard capacitive touch panel and LCD touch screen in stock.
2. Complete customized solutions & special treatment.
3. Nearly 10 years experience in touch screen industry, we understand customer’s requests.
4. High quality and realiabity of our touch screen, and ensure long-term supply.
5. A strict quality control system.
6. High price-performance of touch screen.
7. Provide the best debugging and other after sales services worldwide.
Company Information
Fannal Electronics focus on touch screen solutions for global SMEs. We mainly work for industrial level touch
screen, which is very stable and durable. Our team has more than 10 years experience in touch industry. With
a strong R&D team, we offer the most suitable touch screen for our customers and help them shorten the
production cycle. We have a series of standard capacitive touch screen (1.28 ~32 inch) ready for sale and
customize service available. We are committed to supplying professional touch screen solution, best quality
products and excellent technical support.
- Ronald E. Patton --German --Medical Patient Monitor
We finished the full testing on CTP, and thanks a lot for all your good technical support on debugging.
- Bruce Kinsey --UK --Maritime device
I received your package today and everything in good condition. We're satisfied with the assembly quality,
far beyond the last samples we tried. We will test it and let you know the result. Thank you for your support.
- Nicole --German --Building talkback system
Die Sonnenlichttauglichkeit des von uns verwendeten Displays ist hervorragend! Der Support war zu
jederzeit klar, verständlich und zuverlässig, wir schätzen Fannal als unseren Partner.
- Gabriele --Italy --Elevator Touch Control System
Much love Fannal's thick coverglass touch solution. Really appreciate Fannal give me big help on EMI test.
Now my prototypes works very fine. It has very excellent touch performance.
- Daniel --Australia --Swimming pool touch control
I really love Fannal's touch with water solution. That Cypress driver is very great. And the tech support is
and was always excellent and very straight, we appreciate Fannal as our partner.
