15 inch Cpacitive touch panel with USB port support 10 points touch
| Product Specification | ||
| No. | Item | Specification |
| 1 | Type | TFT capacitive touch panel |
| 2 | Model Number | FN150A03-V1.0 |
| 3 | Size | 15.0 inch |
| 4 | Structure | G+G |
| 5 | Controller IC | 3188 |
| 6 | Viewing Area | 305*228mm |
| 7 | Outline Dimension | 328*255*3.3mm |
| 8 | Interface | USB/IIC/RS232 |
| 9 | Touch Points | 10 touch points |
| 10 | Surface Hardness | 6H(132g) |
| 11 | Transmittance | > 86% |
| 12 | Durability | > 300 million touch |
| Business Information | ||
| 1 | Terms of Delivery | FOB |
| 2 | MOQ | 1K |
| 3 | Lead Time | 4~8 weeks |
| 4 | Payment | 50% deposit and 50% balance before shipment |
Remark: We can also make the matching module ( TFT + CTP ). Please contact us for details.

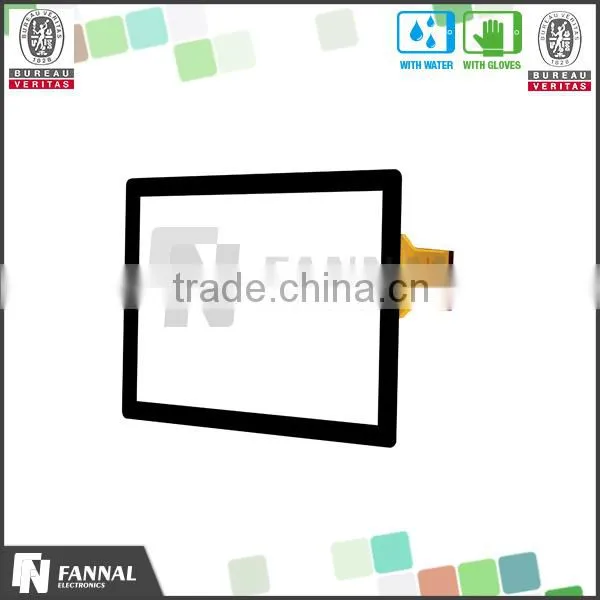

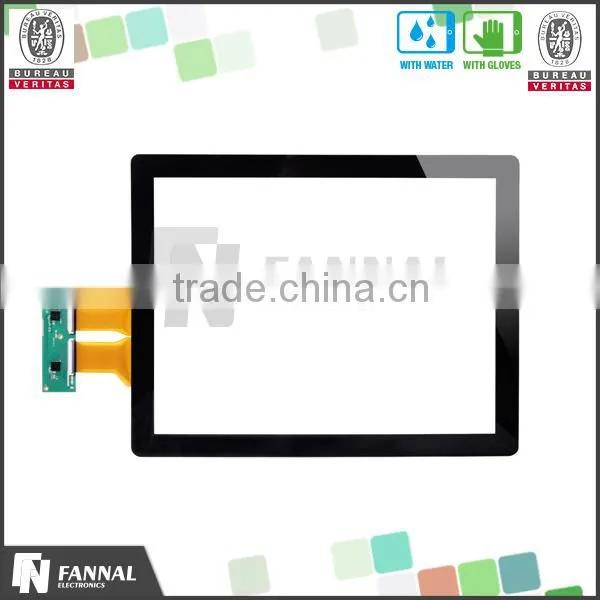

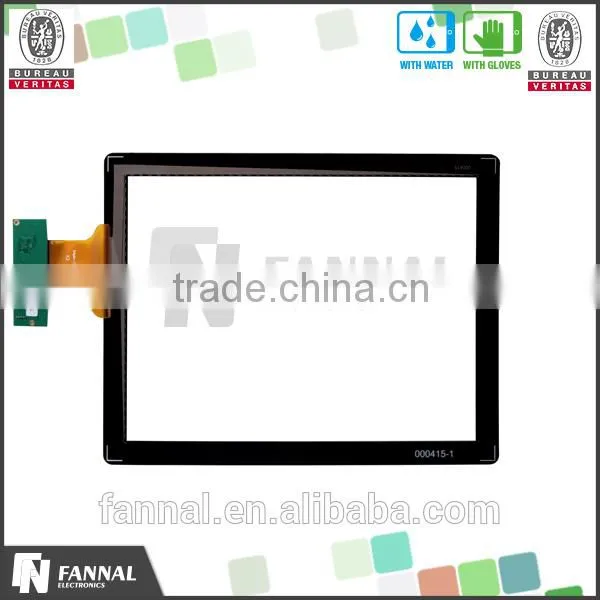

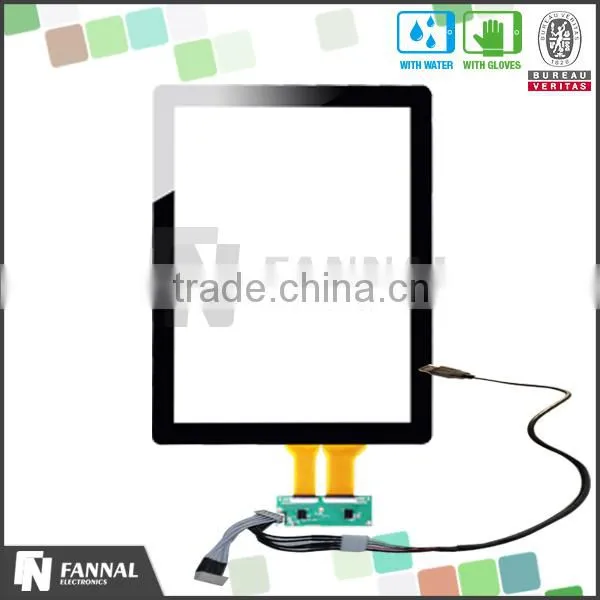

Photos of our 15.0 inch capacitive touch screen
Why we apply G+G structure
G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have
ITO coating so that it can be sensitive. There are many advantages of G+G structure:
1. High durability, function and appearance do not change at least 5 years. Anti-aging, anti-yellow, no
peeling, excellent corrosion resistance and ultraviolet resistance.
2. High transparency, >86%.
3. Fast response time when touching.
4. Very stable performance.
Fannal's hot products of capacitive touch panel
| Panel size | P/N | TP VA (mm) | Outline (mm) |
Cover Thickness |
Interface | Number of Touch | CTP IC |
| 3.7" | FN037A01-V1.0 | 48.24*80.40 | 59.8*95.8*1.425 | 0.7 | IIC | 3 | CYTM568-56 |
| 4.3" | FN043A03-V1.0 | 56.8*94.0 | 80.9*114.9*2.73 | 2.0 | IIC | 5 | CYTM568-56 |
| FN043A05-V1.0 | 96.04*54.86 | 105.5*67.02*1.825 | 1.1 | IIC | 5 | CYTM568-56 | |
| 5" | FN050A02-V2.0 | 65.8*109.0 | 76.3*120.7*1.425 | 0.7 | IIC | 5 | CYTM568-56 |
| FN050A06-V1.0 | 111.16*63.00 | 121.55*69.00*1.825 | 1.1 | IIC | 5 | CYTM568-56 | |
| FN050A08-V1.0 | 103.40*61.14 | 117.00*77.40*2.0 | 1.1 | IIC | 5 | CYTM568-56 | |
| 5.7" | FN057A01-V1.0 | 116.2*87.4 | 144*104.6*1.825 | 1.1 | IIC | 5 | CYTM568-56 |
| 7" | FN070A01-V1.0 | 154.88*86.72 | 165*100*1.425 | 0.7 | IIC | 5 | CYTM568-56 |
| FN070A10-V3.0 | 153.40*92.44 | 188.00*127.00*2.0 | 1.1 | IIC | 10 | CYTM568-56 | |
| FN070A16-V1.0 | 151.72*95.20 | 179.40*118.00*1.425 | 0.7 | IIC | 5 | CYTM568-56 | |
| 8" | FN080A010-V1.0 | 163*122.5 | 183*141*1.825 | 1.1 | IIC | 5 | CYTM568-56 |
| 10.1" | FN101A08-V1.0 | 217.96*136.6 | 257.96*168.6*1.6 | 0.7 | IIC | 5 | CYTM568-70 |
| 10.4" | FN104A01-V3.0 | 211.43*158.82 | 225.5*176.3*1.825 | 1.1 | USB/IIC/RS232 | 3 | EXC205442TAG |
| FN104A03-V1.0 | 210.44*157.82 | 227*175.8*2.2 | 1.8 | USB/IIC/RS232 | 3 | EXC7200 | |
| 11.6" | FN116A02-V1.0 | 257*146 | 287*176*2.4 | 1.1 | USB/IIC/RS232 | 3 | EXC7200 |
| 12.1" | FN121A02-V1.0 | 249*187.5 | 260.5*204*2.4 | 1.1 | USB/IIC/RS232 | 3 | EXC7200 |
| FN121A04-V1.0 | 246.76*185.32 | 274.16*220.92*2.4 | 1.1 | USB/IIC/RS232 | 10 | 3188 | |
| 13.3" | FN133A02-V1.0 | 286.08*178.80 | 310.08*202.8*1.85 | 1.1 | USB/IIC/RS232 | 3 | EXC7200 |
| 14" | FN140A01-V1.0 | 311*176 | 335*200*2.0 | 1.1 | USB/IIC/RS232 | 3 | EXC7200 |
| 15" | FN150A03-V1.0 | 305*228 | 328*255*3.3 | 2.0 | USB/IIC/RS232 | 10 | 3188 |
| 15.6" | FN156A02-V1.0 | 341.6*191.54 | 373.63*245.14*2.5 | 1.1 | USB/IIC/RS232 | 10 | 3188 |
| 17" | FN170A03-V1.0 | 338.92*271.30 | 377*309*2.0 | 1.1 | USB/IIC/RS232 | 10 | 3188 |
| 18.5" | FN185A02-V1.0 | 410.8*231.4 | 446.04*271.18*3.9 | 3.0 | USB/IIC/RS232 | 10 | 3188 |
| 19" | FN190A02-V1.0 | 376.32*301.06 | 421.6*346.6*3.3 | 2.0 | USB/IIC/RS232 | 10 | 3188 |
| 21.5" | FN215A03-V1.0 | 477.9*269.31 | 520.64*312.11*3.1 | 1.8 | USB/IIC/RS232 | 10 | 3188 |
| 23.6" | FN236A02-V1.0 | 525.5*297 | 575.5*358*2.4 | 1.1 | USB/IIC/RS232 | 10 | 3188 |
| 27.0" | FN270A02-V1.0 | 598*336 | 658*416*3.3 | 2.0 | USB/IIC/RS232 | 3 | EXC7200 |
| FN270A03-V1.0 | 598*336 | 658*416*3.3 | 2.0 | USB/IIC/RS232 | 10 | 3188 | |
| 32.0" | FN320A02-V1.0 | 698.7*393.3 | 781.54*476.14*3.3 | 2.0 | USB/IIC/RS232 | 10 | 3188 |
Touch Solutions
Applications
Why FANNAL
1. Standard capacitive touch panel and LCD touch screen in stock.
2. Complete customized solutions & special treatment.
3. Nearly 10 years experience in touch screen industry, we understand customer’s requests.
4. High quality and realiabity of our touch screen, and ensure long-term supply.
5. A strict quality control system.
6. High price-performance of touch screen.
7. Provide the best debugging and other after sales services worldwide.
