multi touch CYTM568-56 IC touch screen 5" tft lcd touch panel
| Product Specification | ||
| No. | Item | Specification |
| 1 | Type | TFT capacitive touch panel module |
| 2 | Model Number | FN050AM02-V2.0 |
| 3 | Size | 5.0 inch |
| 4 | Structure | G+G |
| 5 | CTP IC | CYTM568-56 |
| 6 | Active Area | 64.8*108 mm |
| 7 | Outline Dimension | 76.3*120.7mm |
| 8 | Interface | TTL/8bit |
| 9 | Touch Points | 5 touch points |
| 10 | Surface Hardness | 6H(132g) |
| 11 | Transmittance | > 86% |
| 12 | Durability | > 300 million touch |
| Business Information | ||
| 1 | Terms of Delivery | FOB |
| 2 | MOQ | 1K |
| 3 | Lead Time | 4~8 weeks |
| 4 | Payment | 50% deposit and 50% balance before shipment |

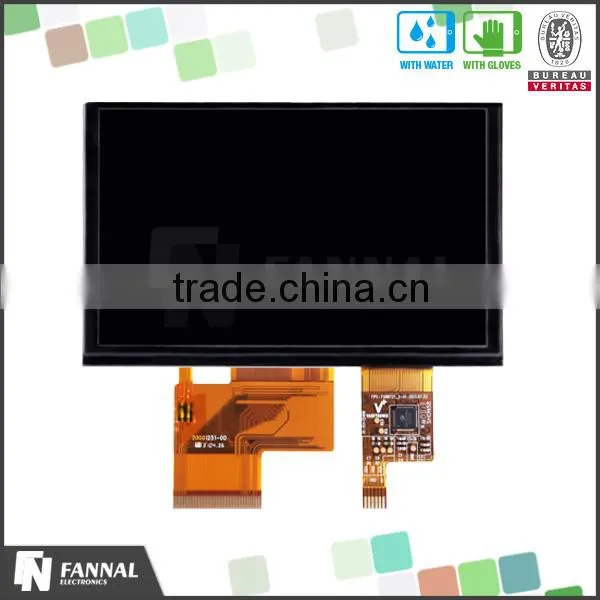

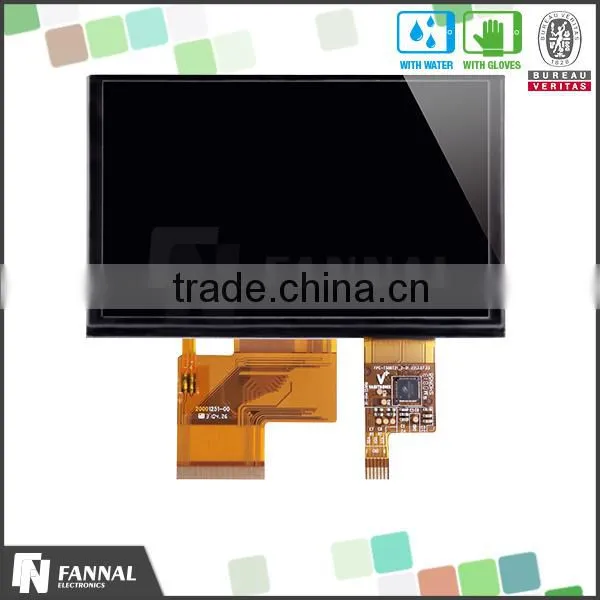

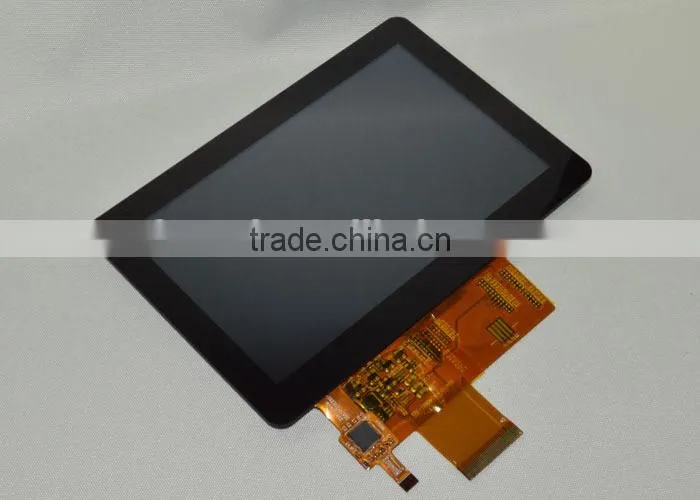

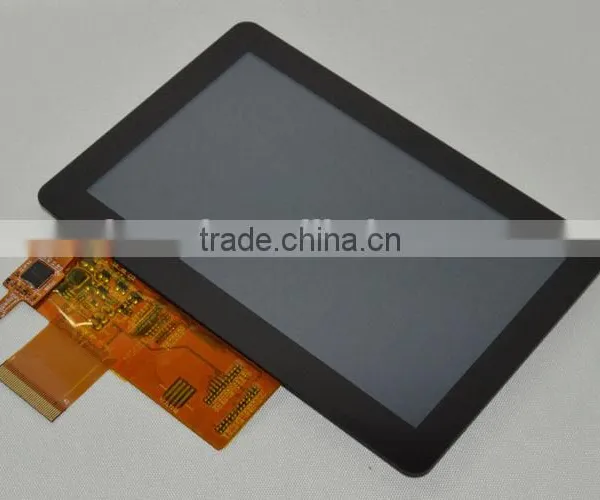

Photos of our 5.0 inch tft capacitive touch panel module
Why we apply G+G structure
Fannal's hot products of capacitive touch panel
| Panel size | Resolution | P/N | LCD AA (mm) | Outline (mm) | Th(mm) | DEMO | Brightness | Panel Type | Interface | Number of Touch | CTP IC |
| 4.3" | WQVGA 480*272 | FN043AM03-V1.0 | 93.60*56.16 | 105.55*62.50 | 2.15 | 350 | IPS | TTL/8bit | 5 | CYTM568-56 | |
| 4.3" | WQVGA 480*272 | FN043AM05-V1.0 | 95.04*53.86 | 105.5*67.02 | 4.55 | 300 | TN | TTL/8bit | 5 | CYTM568-56 | |
| 5" | WVGA 800*480 | FN050AM02-V2.0 | 64.8*108 | 76.3*120.7 | 4.68 | Doing | 450 | TN | TTL/8bit | 5 | CYTM568-56 |
| 7" | WVGA 800*480 | FN070AM13-V1.0 | 154.08*85.92 | 165*100 | 7.43 | Doing | 550 | TN | TTL/8bit | 5 | CYTM568-56 |
| 8" | XGA 1024*768 | FN080AM10-V1.0 | 162*121.5 | 183.0*141.0 | 5.1 | 250 | IPS | LVDS/8bit | 5 | CYTM568-56 | |
| 10.1" | WXGA 1280*800 | FN101AM08-V1.0 | 216.96*135.6 | 257.96*168.6 | 6.9 | 500 | TN | LVDS | 5 | CYTM568-70 | |
| 10.4" | XGA 1024*768 | FN104AM01-V3.0 | 210.43*157.82 | 225.5*176.3 | 10.52 | Doing | 500 | IPS | LVDS/8bit | 5 | EXC205442TAG |
| 12.1" | XGA 1024*768 | FN121AM02 | 245.76*184.32 | 270*212.5 | 11.5 | 600 | IPS | LVDS/8bit | 4 | EXC7200 | |
| Remark: *TPM refers to TFT LCD with capactive touch panel module; | |||||||||||
Applications
Company Information
Fannal Electronics Co., Ltd. is a leading integrated service supplier specialized in solutions of the liquid crystal display modules (LCM/LCD module). We provide professional services and supports to our customers with world class quality LCD products. Our products includes capacitive touch panels, capacitive touch panel modules, and BCD E-paper, etc. We also customize LCD products to meet our customers' specific requirements. Our total customer solutions for various applications include industrial applications, instrument and meter applications and other consumer product applications.
Why FANNAL
1. Standard capacitive touch panel and LCD touch screen in stock.
2. Complete customized solutions & special treatment.
3. Nearly 10 years experience in touch screen industry, we understand customer’s requests.
4. High quality and realiabity of our touch screen, and ensure long-term supply.
5. A strict quality control system.
6. High price-performance of touch screen.
7. Provide the best debugging and other after sales services worldwide.
