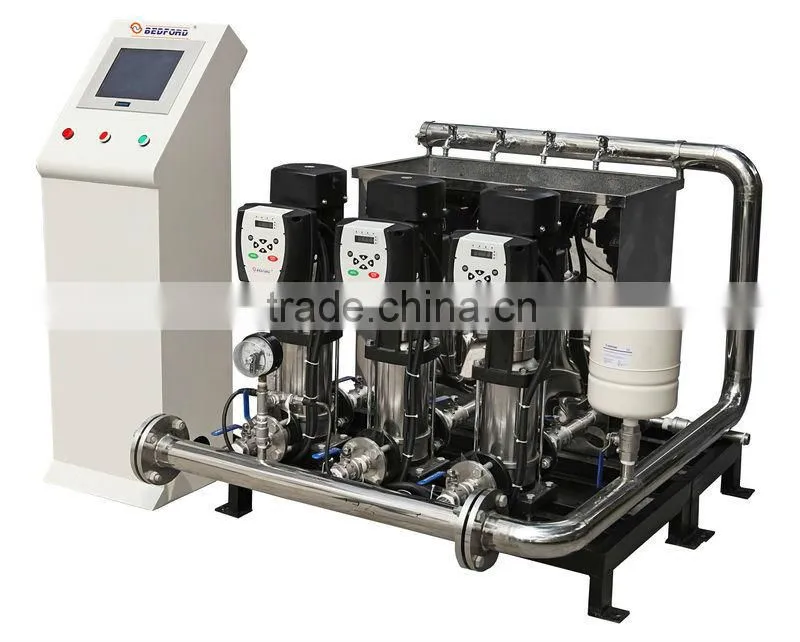

Waterproof water pump controller
Product Description

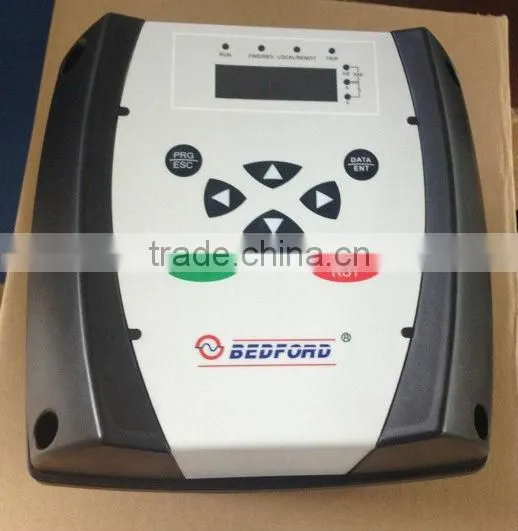

B603B series intelligent constant pressure water supply controller is suitable for full-automatic operation,with characteristics of high quality, multi-functional, low noise and strong commonality etc.
There are no special demands for peripherals, it mainly use normal components ,for example: water detection use transducer, transmitter (include water level transmitter, temperature transmitter, etc.) or inductive remote transmission pressure gauge, with output of 4~20mA, 0~5VDC and 0~10 VDC Standard signal.
Power Range:
Single phase 220V input,3 phase 220V output: 1HP-3HP(0.75KW-1.5KW)
Three phase 380V input,3 phase 380V output: 1HP-3HP(0.75KW-2.2KW)
Function Characteristics
Multi-Pump Control:Can realize 1 master and Max.5 auxiliaries combine work
Sleep Function:Sleep down when have no water consumption, to earn a better energy saving
Freeze-Proofing Function:suitable to low temperature area, prevent pump from freezing
Anti-clogging Function:take precaution against pipe clogging and clean the pipe dirt
Power On Restart:Running automatically when power on
Master Fault Shift Automatically:keep on working when the master break down
Alternate Running:balance every pump’s running time, prolong service life of the whole unit machine
Day-Part Function:3 independent day-part control, up to 7 day-part achieved when define separated
Two Running Mode:synchronous control mode, master-slave control mode
Terminal Control Mode:Terminal Run/Stop,Manual/Auto Control,Electronic Contact Gauge Control
Various of water supply Fault Alarm Function: High-Pressure, Low-Pressure, Low-Level, Transducer Error etc.
As many as 22 kinds of fault protection function: Over-Current, Over-Voltage, Low-Voltage, Phase-Failure, Over-Load etc.
B603B series |
2001 |
2002 |
4001 |
4002 |
4003 |
|
Voltage |
1φ200V-240V |
3φ380V-440V |
||||
Capacity(KW) |
0.75 |
1.5 |
0.75 |
1.5 |
2.2 |
|
Rated output vol.(V) |
3φ 220V-240V |
3φ 380V-440V |
||||
Rated output current A |
4.5 |
7.0 |
2.5 |
3.7 |
5 |
|
Control mode |
Sensorless Vector Control (SVC), V/F Control |
|||||
Output frequency range |
Maximum 50Hz |
|||||
Frequency resolution |
Analog input volume:0.1Hz |
|||||
Overloading capacity |
Rated output current: 150%-1 minute 180%-10 seconds |
|||||
Transmitter signal |
4~20mA |
|||||
No.of V/F Patterns |
Vector curve, Random V/F curve |
|||||
Location |
Indoor(protected from corrosive gases and dust) |
|||||
Ambient temperature |
-10~40°C(If beyond the allowable degree,one degree will Derogate 5% output current) |
|||||
Storage temperature |
-40~60°C |
|||||
Environmental temperature |
95%(without dew gather) |
|||||
Vibration |
2M/S2 (0.2G) |
|||||
Protection rate |
IP54 |
|||||
