ailed Product Description
BS-PT1100 Series Pressure Transmitter is a high-volume ,low-cost OEM, civil, industrial , high-quality and reliable products,Sma
Product Description

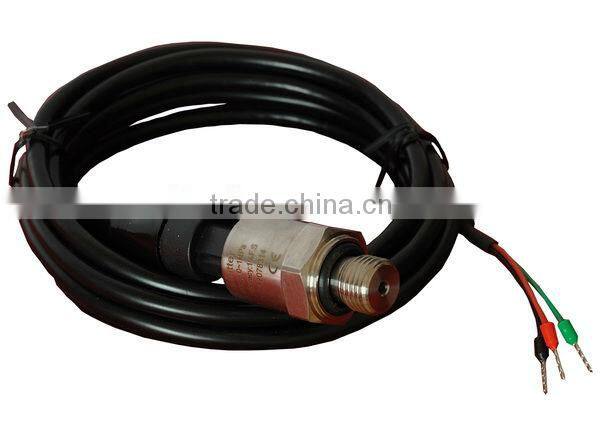

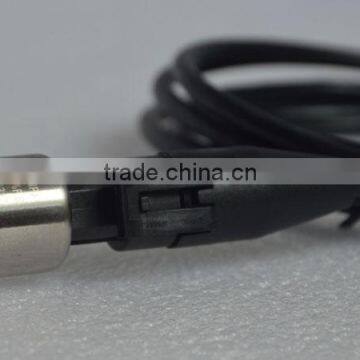

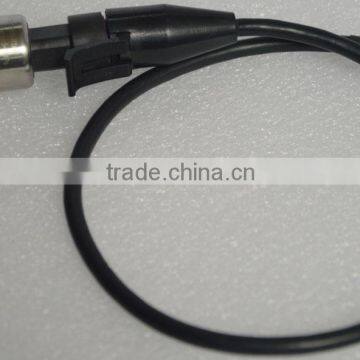

BS-PT1100 Series Pressure Transmitter is a high-volume ,low-cost OEM, civil, industrial , high-quality and reliable products,Small size , light weight .
Take use of military technology , advanced design , high quality stainless steel structure , the pressure core sensor chips are imported from Germany , tuning and digital compensation techniq ues with a standard voltage , standard current output mode , passed the Intrinsically Safe certification and CE certification .
Applications:
- The compressor
- The rooming house water supply
- The hydraulic control
- The air-conditioning units
- The automobile engine
- Automatic detection system
- The hydraulic station
- The refrigeration equipment
Technical parameters
Convention | Numerical Value | Remark | ||
Pressure Range | During 5bar ...... 50bar pressure range | 1bar=100kPa | ||
Over-load pressure | 1.5 times of the rated pressure |
| ||
Breakdown Pressure | 3 times of the rated pressure |
| ||
Accuracy | ±1,2,4%F.S,( For high-precision please select PT100 or 300 series ) |
| ||
Stability | Typical value of 0.5% F.S, Max : 1% F.S |
| ||
Operating Temperature | -40°C~120°C |
| ||
Compensaing temperature | -10°C~80°C |
| ||
Storage temperature | -50°C~125°C |
| ||
Compatible Media | all corrosive media compatible to 1Cr18Ni9Ti, ceramic |
| ||
Appliance Performance | 2-wire | 3-wire |
| |
Output Signal | 4~20mA | 0.5~4.5V |
| |
Power Supply | 12~30Vdc | 5Vdc | 0~30Vdc/ac | Vdc/ac: AC -DC dual-use
|
Load resistance | (U-10)/0.02 | >100K |
| |
Insulation | >100M @50V |
| ||
Appliance connections | Packard |
| ||
Shell protection | IP67 |
| ||
Outlet protection | IP67 |
| ||
Pressure port | G1/4,NPT1/4,7/16-20UNF, |
| ||
Response time | 10ms |
| ||
Form of pressure | Gauge G |
| ||
Certification Programs | Intrinsically Safe E, RoHS, EU electrical safety standards CE |
| ||
Electromagnetic Compatibility | Electromagnetic Radiation:EN50081-1/-2;Electromagnetic sensitivity:EN50082-2 |
| ||
