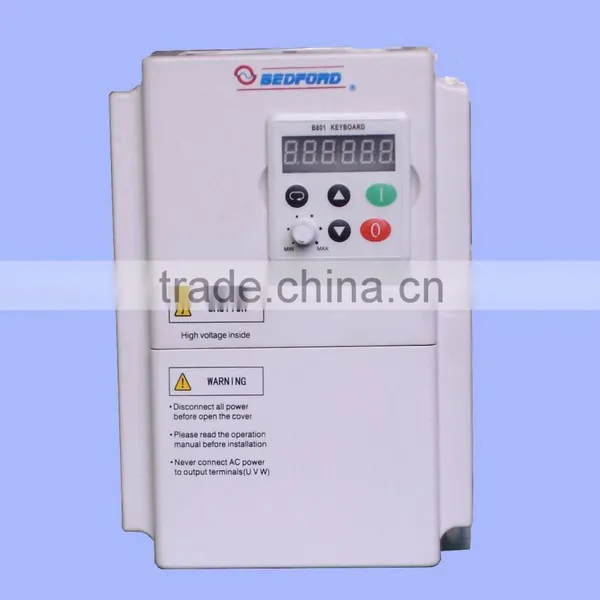

Variable Speed Drive

Name: Variable Speed Drive
Brand: BEDFORD
SKU: 125019773
Availability: InStock

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

BEDFORD

Model Number:

B801-4007

Guangzhou Bedford Electric Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name BEDFORD

Model Number B801-4007

Output Power Other, 5.5KW

Output Type Triple

Input Voltage 380V-440V

Output Voltage 380V-440V

Type Other, AC-DC INVERTER

Specifications

variable speed drive:single or 3 phase,adjustable V/F curve.8-step speed control&jog running,output freq.0.1-500Hz

Variable Speed Drive:

B801 Economic Variable Speed Drive:

Power Range:

Single phase 220V 1HP-5HP (0.75KW-3.7KW)

Three phase 220V 1HP-10HP (0.75KW-7.5KW)

Three phase 400V 1HP-10HP (0.75KW-7.5KW)

B801-220V series:

B801 Series	2001	2002	2003	2005	2007	2010
Voltage	1 or 3 phase 200V-240V			3 phase 200V-240V
Capacity (KW)	0.75	1.5	2.2	3.7	5.5	7.5
Rated outoput vol.(V)	3 phase 220V-240V
Rated output current (A)	4.3	7.0	10.5	14	19.6	26.6
Control mode	Sine wave PWM control
Output freq.range	Maximum 500Hz
Freq.resolution	Analog input volume:0.1Hz
Overloading capacity	Rated output current 150% for 1 minute 175% for 2 seconds
Analog signal input	0~10V, 10~0V,-10~10V 4~20Ma,0~20mA, 20~4Ma 6 types of standard signals
No.of V/F Patterns	Random V/F curve
Location	Indoor(protected from corrosive gases and dust)
Ambient temperature	-10~40(If beyond the allowabe degree,one degree will derogate 5% output current
Storage temperature	-40~60
Enviromental temperature	95%(without dew gather)
Vibration	2m/s2(0.2G)
Protection rate	IP20
***0.37KW& 0.55KW also are available

B801-400V series:

B801 Series	4001	4002	4003	4005	4007	4010
Voltage	3 phase 380V-440V
Capacity (KW)	0.75	1.5	2.2	3.7	5.5	7.5
Rated outoput vol.(V)	3 phase 380V-440V
Rated output current (A)	2.2	4.1	5.8	9.5	13	16
Control mode	Sine wave PWM control
Output freq.range	Maximum 500Hz
Freq.resolution	Analog input volume:0.1Hz
Overloading capacity	Rated output current 150% for 1 minute 175% for 2 seconds
Analog signal input	0~10V, 10~0V,-10~10V 4~20Ma,0~20mA, 20~4Ma 6 types of standard signals
No.of V/F Patterns	Random V/F curve
Location	Indoor(protected from corrosive gases and dust)
Ambient temperature	-10~40(If beyond the allowabe degree,one degree will derogate 5% output current
Storage temperature	-40~60
Enviromental temperature	95%(without dew gather)
Vibration	2m/s2(0.2G)
Protection rate	IP20
