AC INVERTER FOR WATER PUMP, Water Pump Controller

Guangzhou Bedford Electric Equipment Co., Ltd.
AC INVERTER FOR WATER PUMP, Water Pump Controller thumbnail-1
AC INVERTER FOR WATER PUMP, Water Pump Controller photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
BEDFORD
Model Number:
B600
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name BEDFORD
Model Number B600
Output Power Other, 370w-7500w
Output Type Triple
Size Two kinds
Weight 2~10kg
Input Voltage 380V±15%(triple PH), 220V±15%(single PH or triple PH)
Output Voltage 380V±15%(triple PH), 220V±15%(triple PH)
Type Other, AC-DC-AC Inverters/Converters
Output Frequency 0~600Hz
Output Current 2.2~16A(380V),4.3~26.6A(220V)

Specifications

B600 AC inverter for water pump:0.5HP-10HP(0.37KW-7.5KW),with excellent peformance in constant pressure water supply systems.


Product Brief:

B600 series intelligence constant pressure water supply controller is specially designed for small booster pumps which has excellent waterproof function.Its ingenious design reduces the vibration and prolong the life of controller.



Power Range:

Single phase 220V : 0.5HP-10HP(0.37KW-7.5KW)

Three phase 220V : 1HP-7HP(0.75KW-7.5KW)

Three phase 380V : 1HP-10HP(0.75KW-7.5KW)



Main Features:

  1.  Automatic control of constant water pressure
  2. Set the pressure directly in the operator.
  3. Built-in pressure or flow sensors, water level switch signal interface.
  4. P.I.D control unmanned automatic monitoring of water pumps stoped function (dormant).
  5. No need to configure the PLC can realize automatic alternating pump function.
  6. Power outages or low water level automatically actived after the restore operation.
  7. Cooling fans start and stop is controlled by the internal temperture to extend fan service life.
  8. Many pump-linked run-time, regular rotation as the master pump,so that the pump balanced working hours to prevent the pump speed of die wear and rust.
  9. Apply to the use of cold regions of antifreeze function,the application of the cold winter areas.
  10. Adequate operation status monitoring, and complete motor protection features, simple operation, compact size to save space.
  11. To adapt to a variety of sensor signals:Pressure sensors, transmissible pressure gauge, eletric contact pressure gauges and pressure switches.



Applications:

Water pump,constant pressure water supply, application-specific control temperature transmitter can be

connected.





Technology   Characteristics



B600 series

2001

2002

2003

2005

2007

2010

Voltage

1or3φ200V-240V

3φ200V-240V

Capacity(KW)

0.75

1.5

2.2

3.7

5.5

7.5

Rated output vol.(V)

3φ 220V-240V

Rated output curret A

4.3

7.0

10.5

14

19.6

26.6

B600 series

4001

4002

4003

4005

4007

4010

Voltage

3φ 380V-440V

Capacity(KW)

0.75

1.5

2.2

3.7

5.5

7.5

Rated output vol.(V)

3φ 380V-440V

Rated output curret A

2.2

4.1

5.8

9.5

13

16

Control mode

Sine wave PWM control

Output frequency range

Maximum 500Hz

Frequency resolution

Analog input volume:0.1Hz

Overloading capacity

Rated output current 150%-1 minute

                 175%-2 seconds

Transmitter signal

4~20mA/0-10V

No.of V/F Patterns

Random V/F curve

Location

Indoor(protected from corrosive gases and dust)

Ambient temperature

-10~40°C

(If beyond the allowable degree,one degree will

 Derogate 5% output current)

Storage temperature

-40~60°C

Environmental temperature

95%(without dew gather)

Vibration

2M/S2 (0.2G)

Protection rate

IP51



Detail Views:

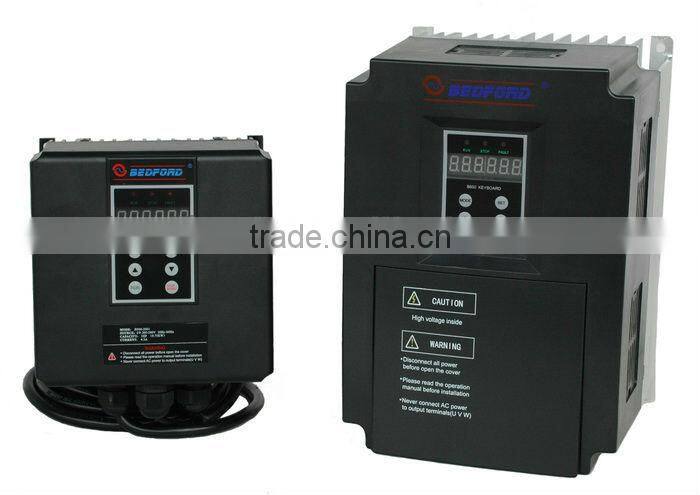

1.The  B600 series intelligence constant pressure water supply controller

AC INVERTER FOR WATER PUMP, Water Pump Controller

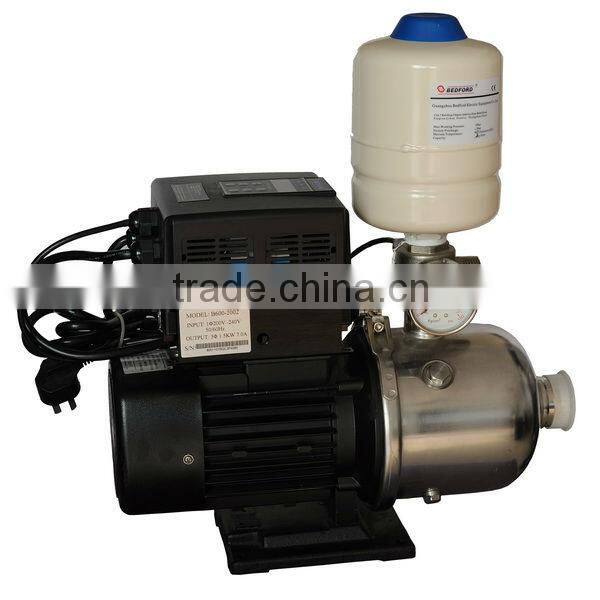

2. This is one pump Integrated mini-booster pump water supply equipment.( Horizontal  set---single pump)

 AC INVERTER FOR WATER PUMP, Water Pump Controller

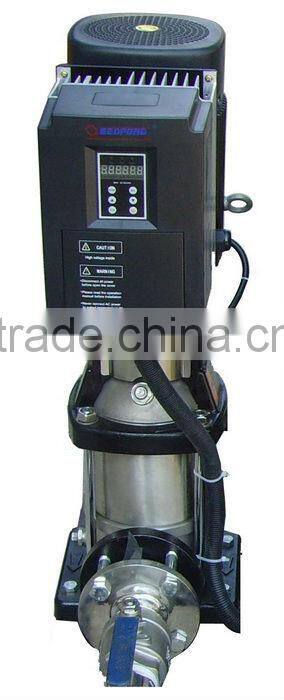

3.This is one pump Integrated mini-booster pump water supply equipment.(Vertical  set---single pump)

AC INVERTER FOR WATER PUMP, Water Pump Controller

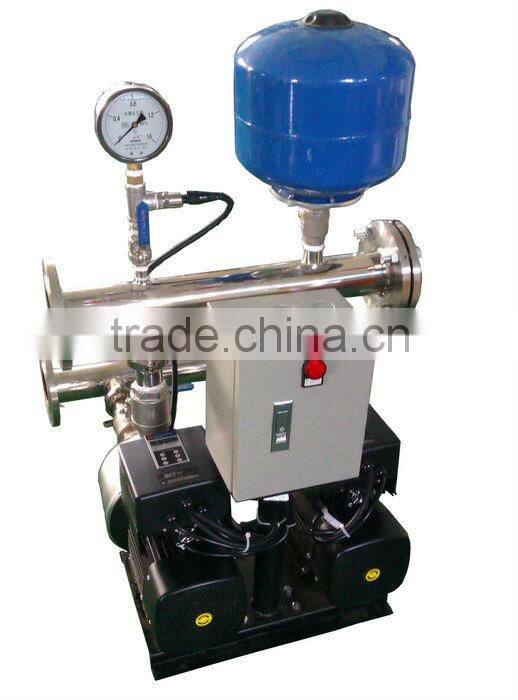

4.This is two pumps Integrated constant pressure water supply equipment.( Horizontal  set---Two pumps)

AC INVERTER FOR WATER PUMP, Water Pump Controller

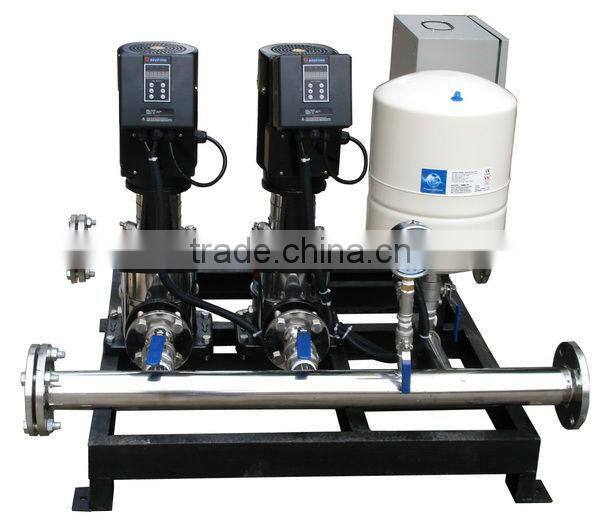

5.This is two pumps Integrated constant pressure water supply equipment.(Vertical set---Two pumps)

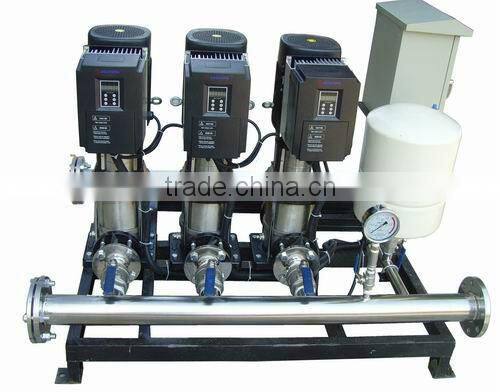

6.This is three pumps Integrated constant pressure water supply equipment.(Vertical set---Three pumps)









AC INVERTER FOR WATER PUMP, Water Pump Controller

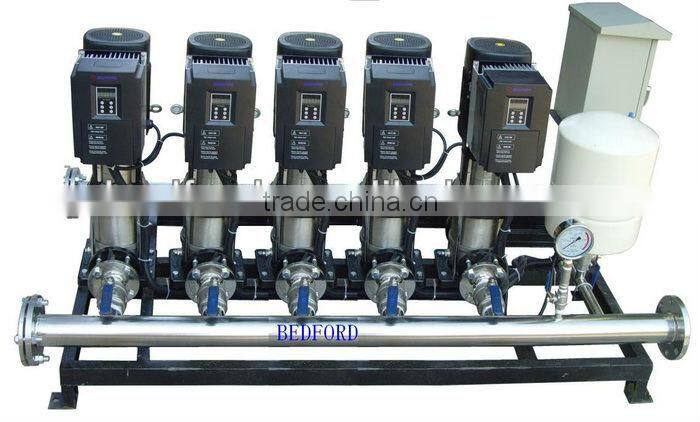

7.This is five pumps Integrated constant pressure water supply equipment.(Vertical set---Five pumps)
