BEDFORD VFD/VSD controller -- B600(370w-7500w)
- 4000 Piece / Pieces per Month
- GUANGZHOU
- T/T Credit Card
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | BEDFORD | Model Number: | B600 |
Output Power: | Other, 370w-7500w | Output Type: | Triple | Size: | Two kinds |
Weight: | 2~10kg/pc | Input Voltage: | 380V±15%(triple PH), 220V±15%(single PH or triple PH) | Output Voltage: | 380V±15%(triple PH), 220V±15%(triple PH) |
Type: | Other, AC-DC-AC Inverters/Converters | Output Frequency: | 50Hz,60Hz,etc | Output Current: | 2.2~16A(380V),4.3~26.6A(220V) |
Product Description
Product Brief:
B600 series intelligence constant pressure water supply controller is specially designed for small booster pumps which has excellent waterproof function.Its ingenious design reduces the vibration and prolong the life of controller.
Power Range:
Single phase 220V : 0.5HP-10HP(0.37KW-7.5KW)
Three phase 220V : 1HP-7HP(0.75KW-7.5KW)
Three phase 380V : 1HP-10HP(0.75KW-7.5KW)
Main Features:
- Automatic control of constant water pressure
- Set the pressure directly in the operator.
- Built-in pressure or flow sensors, water level switch signal interface.
- P.I.D control unmanned automatic monitoring of water pumps stoped function (dormant).
- No need to configure the PLC can realize automatic alternating pump function.
- Power outages or low water level automatically actived after the restore operation.
- Cooling fans start and stop is controlled by the internal temperture to extend fan service life.
- Many pump-linked run-time, regular rotation as the master pump,so that the pump balanced working hours to prevent the pump speed of die wear and rust.
- Apply to the use of cold regions of antifreeze function,the application of the cold winter areas.
- Adequate operation status monitoring, and complete motor protection features, simple operation, compact size to save space.
- To adapt to a variety of sensor signals:Pressure sensors, transmissible pressure gauge, eletric contact pressure gauges and pressure switches.
Applications:
Water pump,constant pressure water supply, application-specific control temperature transmitter can be
connected.
Technology Characteristics
B600 series | 2001 | 2002 | 2003 | 2005 | 2007 | 2010 |
Voltage | 1or3φ200V-240V | 3φ200V-240V | ||||
Capacity(KW) | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 |
Rated output vol.(V) | 3φ 220V-240V | |||||
Rated output curret A | 4.3 | 7.0 | 10.5 | 14 | 19.6 | 26.6 |
B600 series | 4001 | 4002 | 4003 | 4005 | 4007 | 4010 |
Voltage | 3φ 380V-440V | |||||
Capacity(KW) | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 |
Rated output vol.(V) | 3φ 380V-440V | |||||
Rated output curret A | 2.2 | 4.1 | 5.8 | 9.5 | 13 | 16 |
Control mode | Sine wave PWM control | |||||
Output frequency range | Maximum 500Hz | |||||
Frequency resolution | Analog input volume:0.1Hz | |||||
Overloading capacity | Rated output current 150%-1 minute 175%-2 seconds | |||||
Transmitter signal | 4~20mA/0-10V | |||||
No.of V/F Patterns | Random V/F curve | |||||
Location | Indoor(protected from corrosive gases and dust) | |||||
Ambient temperature | -10~40°C (If beyond the allowable degree,one degree will Derogate 5% output current) | |||||
Storage temperature | -40~60°C | |||||
Environmental temperature | 95%(without dew gather) | |||||
Vibration | 2M/S2 (0.2G) | |||||
Protection rate | IP51 |
Detail Views:

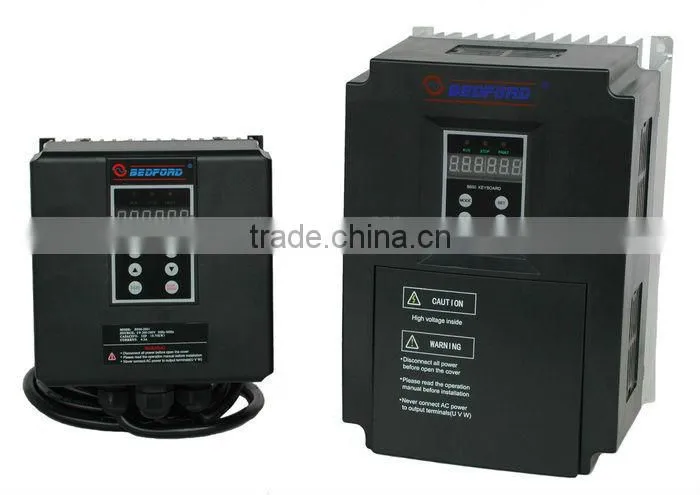

1.The B600 series intelligence constant pressure water supply controller
2. This is one pump Integrated mini-booster pump water supply equipment.( Horizontal set---single pump)

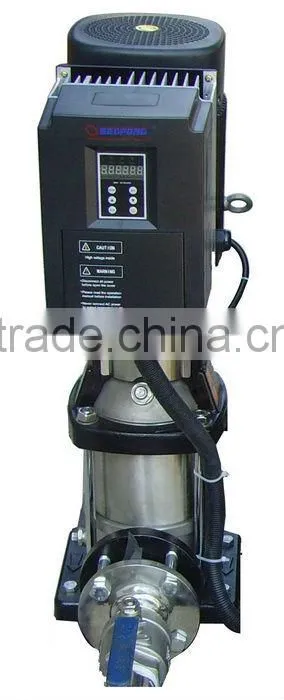

3.This is one pump Integrated mini-booster pump water supply equipment.(Vertical set---single pump)
4.This is two pumps Integrated constant pressure water supply equipment.( Horizontal set---Two pumps)
5.This is two pumps Integrated constant pressure water supply equipment.(Vertical set---Two pumps)

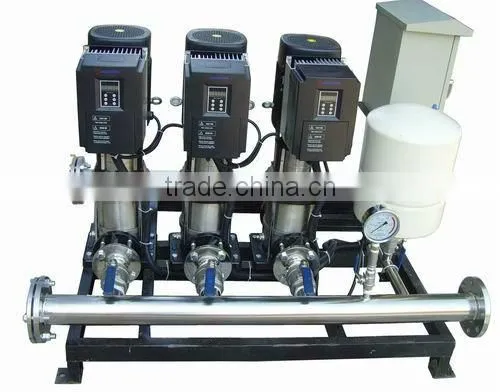

6.This is three pumps Integrated constant pressure water supply equipment.(Vertical set---Three pumps)

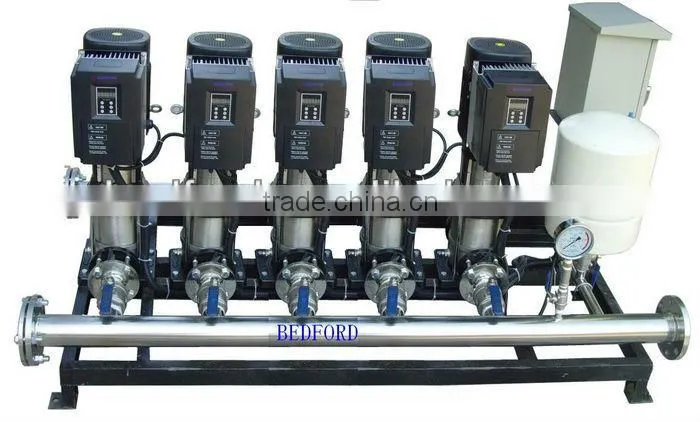

7.This is five pumps Integrated constant pressure water supply equipment.(Vertical set---Five pumps)
