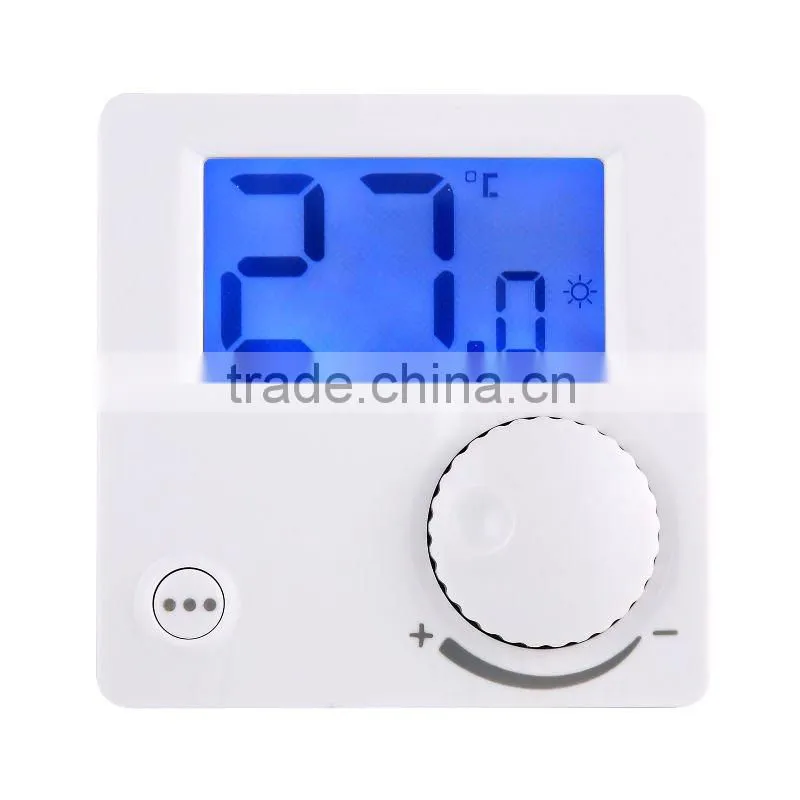

Help CenterAuto Fan Thermostat
Related Products
Features:
1) Heating or Cooling control;
2) Easy operation and intuitive display;
3) Backlight display (at 220V);
4) Delay-time On / Off function;
5) The Switching Difference is adjustable
6) Allowable to calibrate the temperature display;
7) Allowable to connect the external temperature sensor for WW model..
8) Allowable to control of no fan(WH501WW), single-speed fan(WH502WW) and three-speed fan (WH504WW).
9) Display adjustable between °C and F.
10)Eenergy saving function by using room card for WW model
11)Antifreeze when turn off.
Specifications:
Power: 220V AC (±10%) 50 Hz
Contact capacity: 3A/250V
Range of temperature display: 0÷45°C/32÷113°F
Range of temperature setting: 5÷35°C/41÷95°F
Display accuracy: 0.1 °C (1°F)
Probe sensor: NTC(100K) 1%
Protection level: IP20
Insulating condition: Normal environment
Working environment temperature: -18÷50°C/0÷122°F
Dimension(mm): 86H*86W*12D
Installation: standard box
Scope of Control Applications:
- Control of family air-condition and central air-condition;
- Control of wall-mounted boiler
- Control of Thermal Actuator or electromagnetic valve
- Control of water pump;
- Control of fan coil;
- Ventilation control.
Send Inquiry to This Supplier
