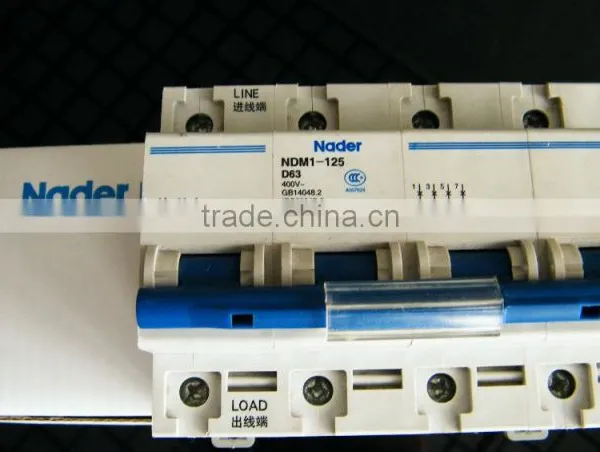

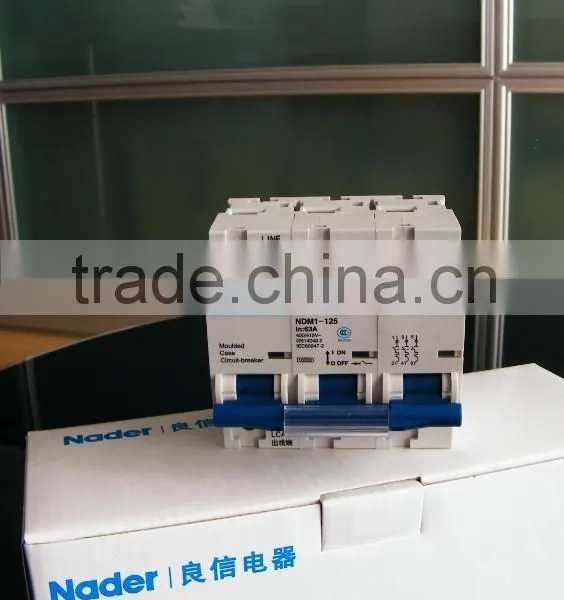

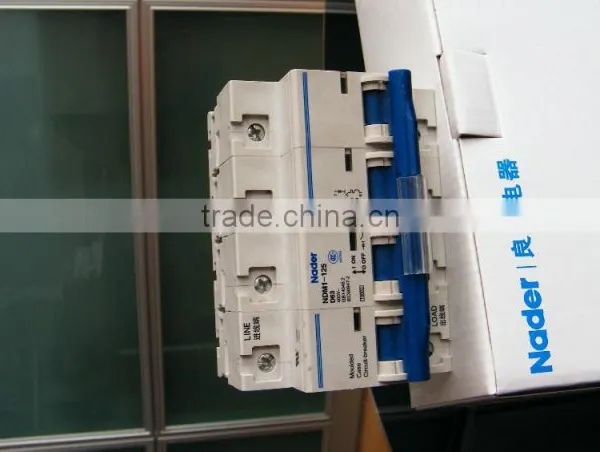

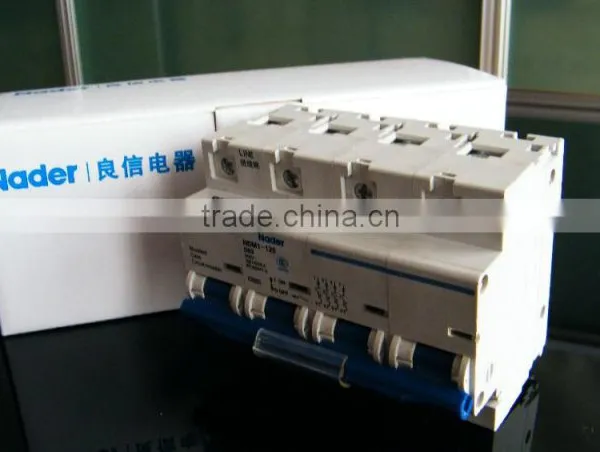

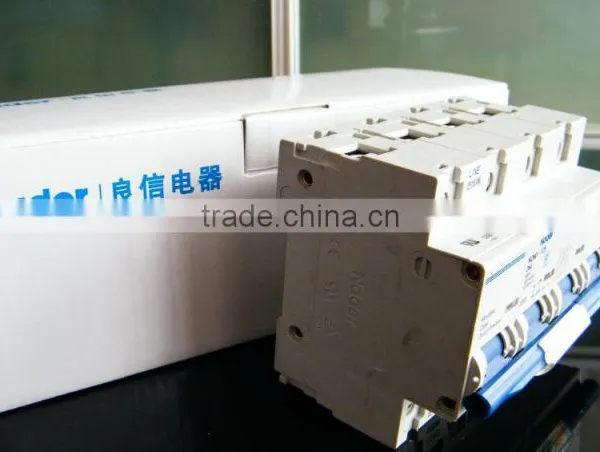

Best Pirces Circuit Breaker 4P

Name: Best Pirces Circuit Breaker 4P
Brand: Nader
SKU: 125012025

US$ 1 - 50 MOQ: 10 Units

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Nader

Model Number:

Shanghai SuiXin Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Nader

Model Number NB

Type Earth Leakage

Poles Number 2

CHINT SERIES CIRCUIT BREAKER

Specification:

Electrical Specification
Conform to standard of electrical		EN60898(IEC898) GB10963
Rated current (Ue):		230/400V;50/60Hz
Rated breaking capacity:		10KA IEC898(0.5-63A) 15KA IEC947-2(0.5-63A)
Short circuit breaking capacity of DC:		Max.48V(L7-...,10KA) single pole Max.250V(L7-DC...,6KA) single pole
Performance:		B,C,D Characteristic curve
Max.fuse that can be connected to:		100A gL(>10KA)
Selective grade:		3
Working ambient temperature:		-5~40°C
Enclosed protective class:		IP40(Under mounting )
Life	Electrical Mechanical	Not less of 8000times switching operation Not less of 20000times switching operation

Mechnical Specification
The length of exposed plane:	45mm
Enclosure height:	80mm
Enclosure width:	17.5mm perpole (single pole) 26.3mm:1P+N(1.5 modulus)
Mounting manner:	Used for track of 35mm of IEC standard
Terminal manner:	wo-function terminal can connect with busbar and conducting wire
Terminal block capacity:	Conducting wire 1-25mm2(1P+N except) 1-25mm2/1-2×10mm2(N)(1P+N) Bus.t. 0.8-2mm
