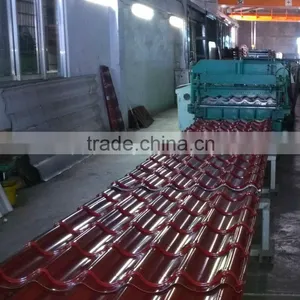

Help CenterStep Tile Long Span Rollforming Machine
Related Products
Specifications
Fully automatic step tile forming machineThe line consist of :
- Fully automatic Hi speed step tile forming machine
- Hydraulic de coiler with coil car 5 MT coil up to 10 tons
- Exit table 6 meter x 02sets.
Technical data :
- Electric components( Touch panel, PLC) : Siemens Gemany / USA / Japan)
- Hydraulic components : Yuken-Japan .
- Motor power : 15Kw
- Machine dimension : L xW x H ( 6 to 11.5m x 2.0m x1.6m)
- Machine weight : 12.5 tons
- Rollers station : 24 stations depends on the step tile profile and feeding width of coil with master gearbox
- Gearbox : Made in Taiwan
- Bearings ,chain : NTN - Japan
Features :
- Inter-convert automatically levels of speed when stop and start.Speed : 12-14 MPM
- Control system of machine : Fully automatic rollforming ,stop to cut and step tile press digital length, position and bath ,multi
orders by PLC and Siemens Touch panel (99 programs).
- Signal feedback from encoder showing current length of product and holes position compare with range
- Before finishing each order has alert to pre-cut
- The rollers made of S45C base material solid form CNC precision machined , through hardened with hard chrome finish get
hardness 50HRC.
- Pre-cut, profile cut and step tile press dies by stationary hydraulic : The cutting and step tile press dies made of SKD 11 base
material solid form CNC wire cutting machined , through hardened get hardness 60HRC.
- Emergency stopping system to safe user.
-The machine is equipped with air cooling system allows the machine working continuously from 12 to 16 hours per day.
- A synchronous un coiler speed with roll forming speed
