Specifications
8 Port Gigabit Ethernet SwitchRealtek 8370 Switch
8 x 10/100/1000 RJ45 Ports
Small Steel
Meet CE RoHS
Model : TH-1008G

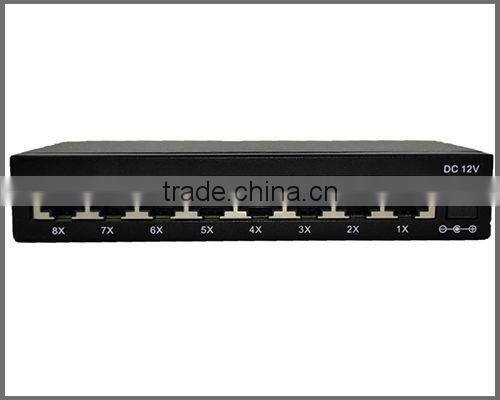

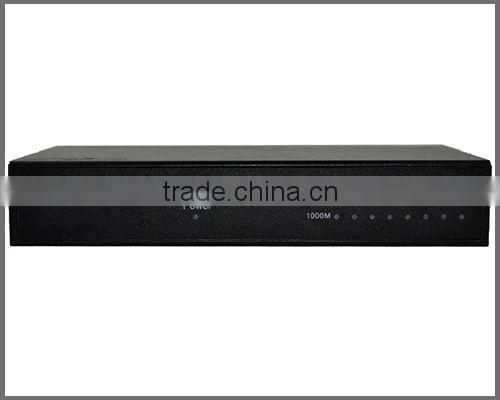

8 Port Gigabit Ethernet Switch
The TH-1008G 8 Port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- Supports MAC address auto-learning and auto-aging
- LED indicators for monitoring power, link, activity
- External power adapter supply
Standards and Protocols | IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP |
Basic Function | Wire-speed Performance |
MAC Address Auto-Learning and Auto-aging | |
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode | |
Backbound Bandwidth | 16Gbps |
MAC Address Table | 4k |
Forwarding Rate | 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port |
Transmission Method | Store-and-Forward |
Ports | 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
Network Media | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
Environment | Operating Temperature: 0°C~40°C (32°F~104F) |
LED Indicators | Power, 10/100M, 1000M |
Size | 13.6x 7.4x 2.4cm |
Unit weight | 350g |
AC adaptor | 12V 0.3A |
We are LG, D-Link, Telecom of Russia, Telecom of India, Skyworth, China Netcom and China Telecom’s OEM supplier, and have our own brand WIDEMAC, SKYLINK, TIANHAO, BLUEWAY on the market.
