Specifications
8 port 10/100M Fast Ethernet Network Switch8 10/100Mbps RJ45 Ports
IC+178 Chipset
Small Steel Case
Meet CE RoHS
Model : TH-1008T

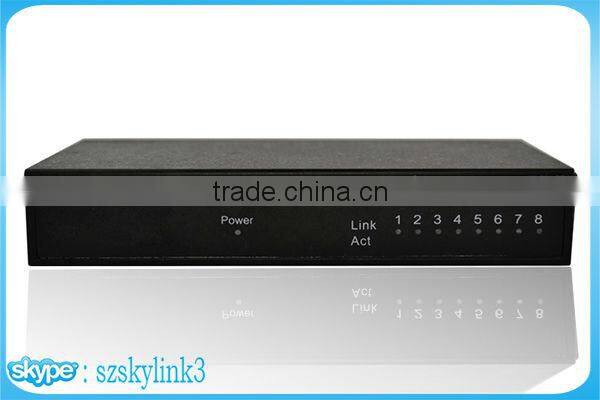

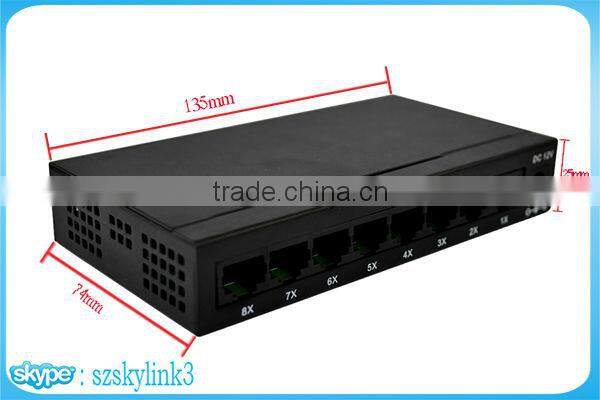

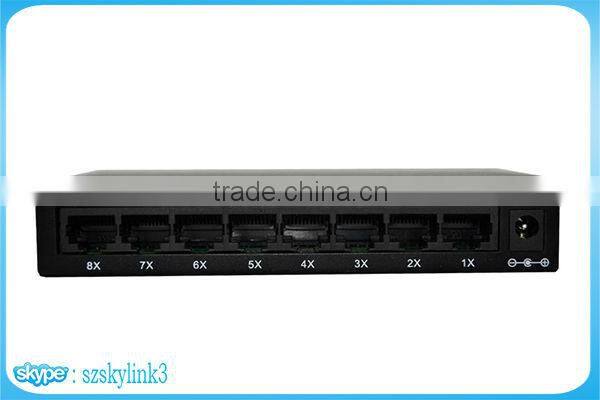

8 port 10/100M Fast Ethernet Network Switch
The Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power, link, activity
External power adapter supply
Standards and Protocols | IEEE802.3, 802.3u, 802.3z, 802.3x | Network Media | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m), |
CSMA/CD, TCP/IP | EIA/TIA-568 100Ù STP (maximum 100m), | ||
Chipset | IC+ 178 | 100Base-Tx: UTP category 5, 5e cable (maximum 100m), | |
Basic Function | full duplex wire-speed forwarding | EIA/TIA-568 100Ù STP (maximum 100m) | |
MAC Address Auto-Learning and Auto-updating | Environment | Operating Temperature: 0°C~40°C (32°F~104°F) | |
IEEE802.3x flow control for Full-Duplex Mode and 802.3z asymmetric flow Control | Storage Temperature: -40°C~70°C (-40°F~158°F) | ||
Switching Capacity | 1.6Gbps | Operating Humidity: 10%~90% non-condensing | |
MAC Address Table | 4k | Storage Humidity: 5%~90% non-condensing | |
Forwarding Rate | 10BASE-T: 14880pps/port | LED Indicators | Power, 10/100M |
100BASE-TX: 148800pps/port | Package Size: | 19.2*14.1*6.4cm | |
Transmission Method | Store-and-Forward | Unit weight | 420g |
AC adaptor | 12V 0.5A | ||
Ports | 8 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) | ||
We are LG, D-Link, Telecom of Russia, Telecom of India, Skyworth, China Netcom and China Telecom’s OEM supplier, and have our own brand WIDEMAC, SKYLINK, TIANHAO, BLUEWAY on the market.
