Electric Concrete Poles used PC steel wire
pc wire Advantage :
1.We are professional manufacturer
2.We have been approved by ISO9001:2008

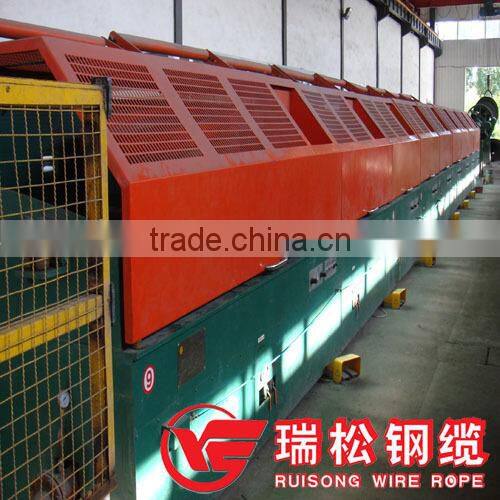

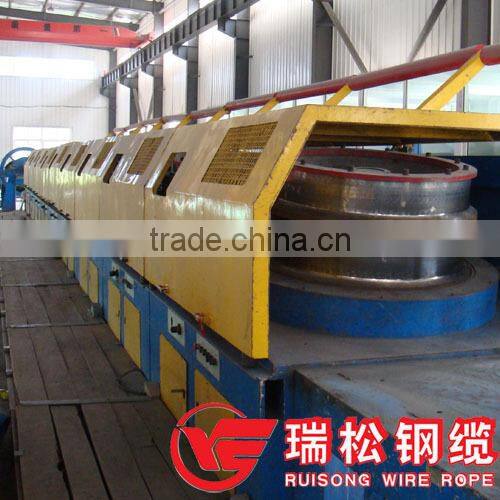

3. We have whole set of production equipment and inspect instrument
pc wire Descriptions :
1.W.T: 2 MT- 4MT
2.Diameter : 4 -10MM
3.Material: High carton steel wire 77B, 82B
4.Tensile strength (TS) : 1470 1570 1670 1770 1860Mpa
7.Standard : GB/T5224(China)ASTMA421(USA);BS 896(UN);
JIS G3536(Japan);AS/NZS4672(Australia);NBR-7483(Brazil);
EN10138(Europe);ISO934
8. Type : PC strand, Prestresses concrete steel strand, Unboned pc strand, PC wire , Spiral pc wire ,Plain pc wire ,indented pc wire
9. Cerfificate : ISO9001:2000 SGS, China National Construction Steel Qulity Supervision and Test Centre Product Quality Supervision and Inspection Center, Ministry of Railways Railway Construction Inspection Station
pc wire Details : | |
1. Our advantage | We are professional manufacturer |
2. Surface | plain,spiral ,indented,helix, crimped , |
3. W.T | 1 MT- 4MT |
4. Diameter | Diameter |
5. Yield strength | 1290-1560Mpa |
6. Tensile strength | 1470 1570 1670 1770 1860Mpa |
7. .Price term | FOB ,CNF ,CIF |
8. .Delivery port | Qingdao port |
9. Delivery time | 15 days after receiving the deposit or L/C |
10. Standard | ASTM A416 ,GB/T5224(China)ASTMA421(USA);BS 896(UN);JIS G3536(Japan);AS/NZS4672(Australia); NBR-7483(Brazil); EN10138(Europe);ISO934 |
pc wire Usage (Application)
1. Bridges of large-scale railroads and highways, frame of roofs, overhead cran beams,industrial and civil prefabricated concrete slabs, wall boards, tubular piles, PC water pies, TV towers and nuclear power stations, etc.
2. Low relaxation wire used for prestressed steel structure, prestressed and post-tensioning technology in large, medium and small sizes of various shapes of PC structures, such as civil engineering construction of large scale railroad, highway, etc.
pc wire Technical Specification
1.Continued drawing with large deduction stranding then stabilizing treatment.
2.High rate of yield strength and ultimate strength, Low relaxation ,
Steady modulus of elasticity, stress relieved, high fixed with Concrete.
PC wire Technical Standard
Nominal Dia. | Tolerance | Tensile strength (MPa) | Yield | Bending | Bending Radius R/mm |
4.0 4.8 | ±0.05 | 1470 | 1290 1380 1470 1560 1640 | 4 | 15 |
5.0 | |||||
6.0 | ±0.05 | 1470 | 1290 1380 1470 1560 | 4 | 15 |
6.25 | |||||
7.0 | 20 | ||||
8.0 | ±0.05 | 1470 1570 | 1290 1380 | 4 | 20 |
9.0 | 25 |
