10KW Electricity Generated by Wind Turbine(240V)

FOB Price

US$ 8,000 - 16,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Hopeful
Model Number	H-series		Type	Other, Wind Power Generator, Generator

Advantage:

Product of this series is equipped with high quality permanent magnetic generator

but no gear box.It adoptsmature control technologies which are used on MW class

wind turbine generation systems.Advanced and reliable electrical components such

as Mitsubishi's,Schneider's,friendly,touchable manmachine interface,optional remote,

centralized control modes with GPRS or WLAN,all these increase the stability of the

whole wind turbine system.Furthermore,its hydraulic tower assures that the wind

generation unit can be lift up or laid down at all times,easy for installation and

maintenance.

Technical Specifications
Model	H8-10K
Rated Voltage	240Vdc
Rated Current	42A
Rated Power	10KW
Rotor diameter	8.0m
Blade material	Advanced composite materials
Start-up wind speed	2.5m/s
Rotation direction (Along wind direction)	Clockwise
Rated wind speed	10m/s
Cut-out wind speed	16m/s
Survival wind speed	45m/s
Type	Upwind
Angle of elevation	6°
Rated rotating speed	180rpm
No. of blades	3
Tower height	12m
Cable length	20m
Annual yield	24000kWh
Yaw mechanism	Hydraulic
Yaw mode	Manual/Auto
Efficiency	0.85
Net weight	1T
Protection mode	Yaw/Hydraulic brake/Unloading

Certification:

Workshop:

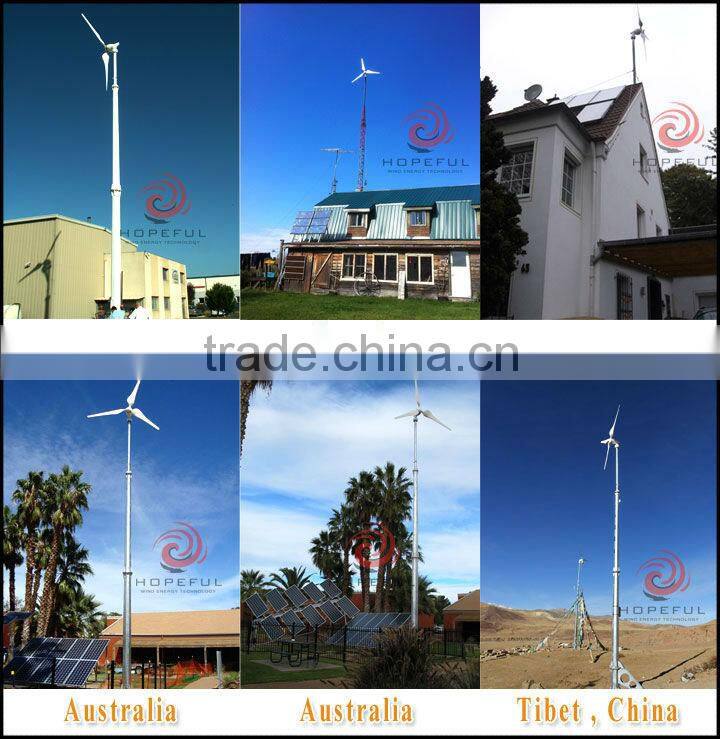

Project cases:
