Home > Products > Flanged Ball Bearings > High Performance F688- 2Z Grw

High Performance F688- 2Z Grw

FOB Price

US$ 0.2 - 3 / Piece

100 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	LB	Bore Size	2, 15
Outside Diameter	5, 28	Model Number	MF.FR,F67,F68,F69..
Precision Rating	ABEC-1,3,5,7,9	Seals Type	Open,Teflon Sealed,Rubber Seals,2 Metal Shield
Number of Row	Single Row	Place of Origin	Shanghai, China

Product Description

F688- 2Z Grw

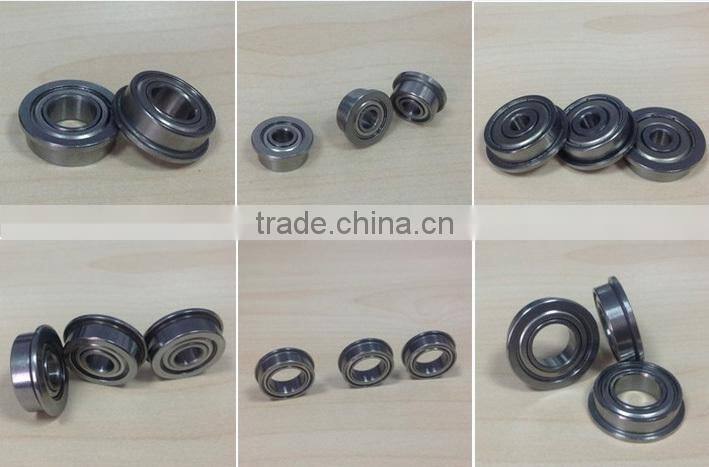

Pictures:

Specification :

Brand	LILY Bearings
Name	F688- 2Z Grw
Model
	MF,F67,F68,F69 Series - Miniature Flanged Ball Bearings

Material	Aisi52100	Certificate	ISO9001:2001
Precision	P0, P6, P5, P4
Bore Size:	1mm-50mm	Outside diameter	3mm-100mm
Clearance	C0,C1,C2,C3,C4,C5 etc.
Cage Type	Brass cage or Stainless cage
Seals Type	ZZ,RS, 2RS, R2, Z, 2Z, 2RZ etc
Features	Flanged ball bearings are available open, shielded or sealed.with bore sizes as small as 1mm. The smaller sizes are sometimes referred to as instrument bearings.
Application	Miniature bearing suitable for precision instrument, low noise electromotor, automobile and motorcycle, etc. It is the the most widely used bearing type.
Package	pallet, wooden case,industrial package or as customers' requirement
Price	FOB, CFR, CIF	Delivery Time	5-10 days

Our Service:

1. Good Quality and Competitive Prices

2. Prompt Delivery

3. OEM Service

4. Non-stamdarded Products for Special Application

5. Modified Starndarded Products for Special Application

F688- 2Z Grw

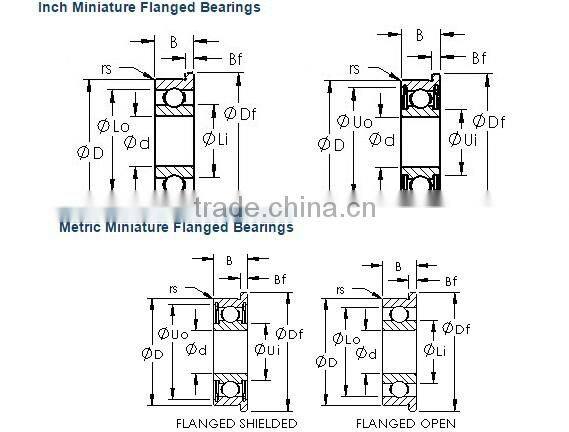

Bearing Details:

Product Number	Bearing Type	Bore Dia (d)	Outer Dia (D)	Width (B)	Flange Dia (Df)	Flange Width (Bf)	Dynamic Load Rating (Cr) (Newtons)	Static Load Rating (Cor) (Newtons)
F681	Flanged Open	1.0000	3.0000	1.0000	3.8000	0.300	82	21

F691	Flanged Open	1.0000	4.0000	1.6000	5.0000	0.500	120	30

MF41X	Flanged Open	1.2000	4.0000	1.8000	4.8000	0.400	95	26

F681X	Flanged Open	1.5000	4.0000	1.2000	5.0000	0.400	95	26
F681XZZ	Flange Shielded	1.5000	4.0000	2.0000	5.0000	0.600	95	26

F691X	Flanged Open	1.5000	5.0000	2.0000	6.5000	0.600	144	40
F691XZZ	Flange Shielded	1.5000	5.0000	2.6000	6.5000	0.800	144	40

F601X	Flanged Open	1.5000	6.0000	2.5000	7.5000	0.600	281	79
F601XZZ	Flange Shielded	1.5000	6.0000	3.0000	7.5000	0.800	281	79

F682	Flanged Open	2.0000	5.0000	1.5000	6.1000	0.500	144	40
F682ZZ	Flange Shielded	2.0000	5.0000	2.3000	6.1000	0.600	144	40

MF52	Flanged Open	2.0000	5.0000	2.0000	6.2000	0.600	144	40
MF52ZZ	Flange Shielded	2.0000	5.0000	2.5000	6.2000	0.600	144	40

F692	Flanged Open	2.0000	6.0000	2.3000	7.5000	0.600	281	79
F692-2RS	Flange Sealed		6.0000	3.0000	7.5000	0.800	281	79
F692ZZ	Flange Shielded		6.0000	3.0000	7.5000	0.800	281	79

Product Number	Bearing Type	Bore Dia (d)	Outer Dia (D)	Width (B)	Flange Dia (Df)	Flange Width (Bf)	Dynamic Load Rating (Cr) (Newtons)	Static Load Rating (Cor) (Newtons)
MF62	Flanged Open	2.0000	6.0000	2.5000	7.2000	0.600	281	79
MF62ZZ	Flanged Open	2.0000	6.0000	2.5000	7.2000	0.600	281	79

MF72	Flanged Open	2.0000	7.0000	2.5000	8.2000	0.600	328	103
MF72-2RS	Flange Sealed		7.0000	3.0000	8.2000	0.600	328	103
MF72ZZ	Flange Shielded		7.0000	3.0000	8.2000	0.600	328	103

F602	Flanged Open	2.0000	7.0000	2.8000	8.5000	0.700	328	103
F602ZZ	Flange Shielded	2.0000	7.0000	3.5000	8.5000	0.900	328	103

F682X	Flanged Open	2.5000	6.0000	1.8000	7.1000	0.500	178	59
F682XZZ	Flange Shielded	2.5000	6.0000	2.6000	7.1000	0.800	178	59

F692X	Flanged Open	2.5000	7.0000	2.5000	8.5000	0.700	328	103
F692X-2RS	Flange Sealed		7.0000	3.5000	8.5000	0.900	328	103
F692XZZ	Flange Shielded		7.0000	3.5000	8.5000	0.900	328	103

MF82X	Flanged Open	2.5000	8.0000	2.5000	9.2000	0.600	180	67

F602X	Flanged Open	2.5000	8.0000	2.8000	9.5000	0.700	469	142
F602X-2RS	Flange Sealed		8.0000	4.0000	9.5000	0.900	469	142
F602XZZ	Flange Shielded		8.0000	4.0000	9.5000	0.900	469	142

Product Number	Bearing Type	Bore Dia (d)	Outer Dia (D)	Width (B)	Flange Dia (Df)	Flange Width (Bf)	Dynamic Load Rating (Cr) (Newtons)	Static Load Rating (Cor) (Newtons)
MF63	Flanged Open	3.0000	6.0000	2.0000	7.2000	0.600	178	59
MF63ZZ	Flange Shielded	3.0000	6.0000	2.5000	7.2000	0.600	178	59

F683	Flanged Open	3.0000	7.0000	2.0000	8.1000	0.500	264	90
F683-2RS	Flange Sealed		7.0000	3.0000	8.1000	0.800	264	90
F683ZZ	Flange Sealed		7.0000	3.0000	8.1000	0.800	264	90

MF83	Flanged Open	3.0000	8.0000	2.5000	9.2000	0.600	336	113
MF83ZZ	Flange Shielded	3.0000	8.0000	3.0000			336	113

F693	Flanged Open	3.0000	8.0000	3.0000	9.5000	0.700	474	144
F693-2RS	Flange Sealed		8.0000	4.0000	9.5000	0.900	474	144
F693ZZ	Flange Shielded		8.0000	4.0000	9.5000	0.900	474	144

MF93	Flanged Open	3.0000	9.0000	2.5000	10.2000	0.600	485	151
MF93ZZ	Flange Shielded	3.0000	9.0000	4.0000	10.6000	0.800	485	151

F603	Flanged Open	3.0000	9.0000	3.0000	10.5000	0.700	230	151
F603ZZ	Flange Shielded	3.0000	9.0000	5.0000	10.5000	1.000	230	151

F623	Flanged Open	3.0000	10.0000	4.0000	11.5000	1.000	536	175
F623-2RS	Flange Sealed		10.0000	4.0000	11.5000	1.000	536	175
F623ZZ	Flange Shielded		10.0000	4.0000	11.5000	1.000	536	175

Product Number	Bearing Type	Bore Dia (d)	Outer Dia (D)	Width (B)	Flange Dia (Df)	Flange Width (Bf)	Dynamic Load Rating (Cr) (Newtons)	Static Load Rating (Cor) (Newtons)
MF74	Flanged Open	4.0000	7.0000	2.0000	8.2000	0.600	264	92
MF74ZZ	Flange Shielded	4.0000	7.0000	2.5000	8.2000	0.600	217	86

MF84	Flanged Open	4.0000	8.0000	2.0000	9.2000	0.600	336	113
MF84ZZ	Flange Shielded	4.0000	8.0000	3.0000	9.2000	0.600	336	113

F684	Flanged Open	4.0000	9.0000	2.5000	10.3000	0.600	545	182
F684-2RS	Flange Sealed		9.0000	4.0000	10.3000	1.000	545	182
F684ZZ	Flange Shielded		9.0000	4.0000	10.3000	1.000	545	182

MF104	Flanged Open	4.0000	10.0000	3.0000	11.2000	0.600	604	218
MF104-2RS	Flange Sealed		10.0000	4.0000	11.6000	0.800	604	218
MF104ZZ	Flange Shielded		10.0000	4.0000	11.6000	0.800	604	218

F694	Flanged Open	4.0000	11.0000	4.0000	12.5000	1.000	814	280
F694-2RS	Flange Sealed		11.0000	4.0000	12.5000	1.000	814	280
F694ZZ	Flange Shielded		11.0000	4.0000	12.5000	1.000	814	280

F604	Flanged Open	4.0000	12.0000	4.0000	13.5000	1.000	814	280
F604-2RS	Flange Sealed		12.0000	5.0000	13.5000	1.000	814	280
F604ZZ	Flange Shielded		12.0000	5.0000	13.5000	1.000	814	280

etc.

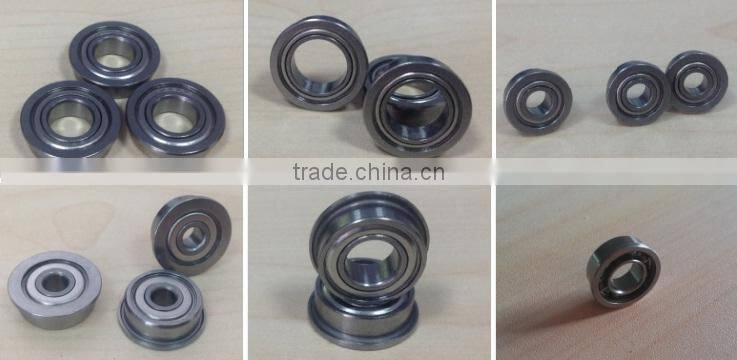

Factory and Inspection:

F688- 2Z Grw

Certification:

Lily bearing has long-term good relations with a large number of U.S. and European companies.

There are even a lot of customers have been cooperating with us more than 10 years.

We can provide these customers information, you can know us better on the quality of products and services through our regular customers!

Welcome to visit : http://wangxin.en.china.cn/
