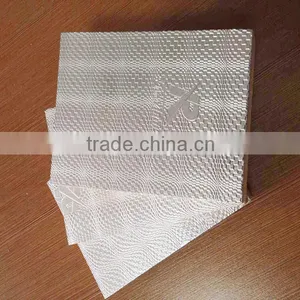

Phenolic Board For Wall Insulation

Name: Phenolic Board For Wall Insulation
Brand: RUIZE
SKU: 124975491
Availability: InStock

US$ 3 - 50 MOQ: 1000 Square Meters

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

RUIZE

Model Number:

Aluminum Foil Foam Building Materials

Jiangyin Ruize Energy-Saving Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name RUIZE

Model Number Aluminum Foil Foam Building Materials

Phenolic Board For Wall Insulation

Item	Phenolic Board For Wall Insulation
Material	modified phenolic foam
Specification
1. Thickness: 20mm – 100mm
2. Width:600mm–1200mm
3. Length:1000mm–6000mm
4. Compressive Strength:vertical direction 110kPa(35kg/m³ ),horizontal direction 175kPa (35kg/m³ ),
5. Flame Retardant:B1

Technical Data
Density	60-75kg/m³
Thermal conductivity	0.023-0.034W(m.k)
Compression strength	0.2-0.45Mpa
Bending strength	1.2-1.44Mpa
Dimensional Stability	≤1.5%
Water absorption	≤3%(v/v)
[SDR]Smokedensity rating	≤1
Working temperature	-50°C-125°C
Flame rating	GB8624-1997:Grade A GB8624-2006:Grade B-s1,d0,t1
Formaldehyde emission	≤1.5ml/L
Maximum allowable wind speed	15M/S
Working pressure	≤1500Pa
Leakage volume,pressure and deformation	Qualified
Fire resistance	>1.6h
Acid and alkali resistance	Soak at roomtemperature,no change
Anti-fungal	No plate

10 advantage of phenolic plastic insulation board
The brand GUIBAO is trustworthy Professional research and development team focus on developing new products Fireproofing level B1,safe and reliable Less smoke,non-toxic,energy saving and environment protection Large temperature resistance scale,good stability Low coefficient heat conductivity,strong thermal insulation property Widely applied,effectively matched Strong sound absorption Simple and easy for construction,saving the construction time Quality after-sale services make consumers free of worry
