Specifications
1.572533 400mAh Lithium Polymer Battery;2.Fast delivery;
3.With higher capacity;
(1) Key Specifications:

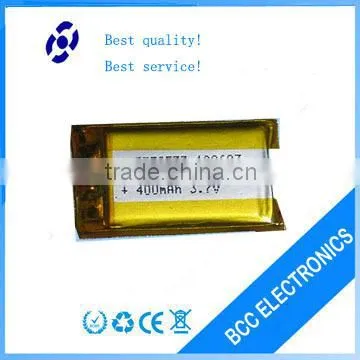

1. 572533 400mAh Lithium Polymer Battery
2. Dual IC chips, that can anti-short circuit, anti-over charge, anti-over current, anti-overload;
3. With short-circuit production function, safe and reliable;
4. Up to 500 cycles life,low self-discharge,no memory effect;
5. Factory mastered technology and competitive price;
6. Injection Technology to make battery more stable.
(2)572533 Battery cell Specification
| 2.1 | Battery Type | 572533 |
| 2.2 | Material of Case | Polymer |
| 2.3 | Nominal Voltage | 3.7 V |
| 2.4 | Nominal Capacity | 400 mAh |
| 2.5 | Internal Resistance | 100↓mW |
| 2.6 | Discharge Cut-off Voltage | 3.00V |
| 2.7 | Charge Cut-off Voltage | 4.20V |
| 2.8 | Max Charge / Discharge Current | 1C |
| 2.9 | Charge method | CC/CV (constant current/constant voltage) |
| 0.5C×5h;1.0C×2.5h | ||
| 2.1 | Dimension | Thickness: 5.50 –0.4 mm |
| Width: 25.0 –0.5 mm | ||
| Height: 33.0+0 –0.5 mm | ||
| 2.11 | Weight | About 8 g |
| 2.12 | Operating Temperature: | Charging Temperature: 0~45°C |
| Discharging Temperature: -20~55°C | ||
| 2.13 | Storage Temperature | -5°C-35°C(suggest25±5°C) |
| 2.14 | Relative Humidity | ≤75% |
| 2.15 | Visual Requirements | Defects, such as scratches, flaws, dirty spots, rust, deformation, discoloration, leakage, etc., which damage commercial values shall not be presented. |
| 2.16 | Voltage of shipment | 3.70-3.90V(about 50% capacity) |
| 2.17 | Voltage of storage | 3.70-3.90V |
| 2.18 | Environmental request | If the materials of the product and packaging accord with RoHS standard,there will be a RoHS |
| Id on the box. |
(3) Appearance Drawing
(4) Electrical Characteristic
Item |
Standard |
Test Method |
|
Discharge Characteristics |
Discharge Time: (A) 0.2C5A≥5h, (B) 1C5A≥51min |
After standard charged, rest for 30min and then discharge at 0.2C5A and 1C5A to the discharge cut-off voltage respectively. Charge/discharge cycle can be conducted for 5 times before meeting the Standards(the same below). |
Normal Storage |
Discharge Time≥4.25h |
Store for 28 days after standard charged, and then discharge at 0.2C5A to the discharge cut-off voltage. |
Cycle Life |
Cycles≥300 |
Standard charged, then conduct 0.5C5A /1 C5A cycle untill the discharge time less than 45min for two continous cycles. |
Long Time Storage |
Discharge Time≥4h |
Standard charged, Discharge to the state of 50% capacity. Store for 12 months at room temperature. Conduct 0.2 C5A /0.2 C5A cycle for 5 times before meeting the standard. |
(5) Notes:
1. Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.
2.Do not use or leave the battery near a heat source as fire or heater.
3.Use the battery charger specifically for that purpose when recharging.
4.The battery only can be soldered on the Al/Ni composite strip of the bottom.
5.Do not reverse the position and negative terminals.
6.Do not connect the battery to an electrical outlet.
7.Do not discard the battery in fire or a heater.
8.Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
9.Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
10.Do not strike, trample or throw the battery.
11.Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
12.Do not use or leave the battery at high temperature (for example, at strong direct sunlight or in a vehicle in extremely hot weather). Otherwise, it can overheat or fire or its performance will be degenerate and its service life will be decreased.
13.Do not use the battery in a location where static electricity and magnetic field is great, otherwise, the safety devices may be damaged, causing hidden trouble of safety.
14.If the battery leaks, and the electrolyte get into the eyes, do not rub the eyes, instead, rinse the eyes with clean water, and immediately seek medical attention. Otherwise, it may injure eyes.
15.If the battery gives off an odor, generates heat, becomes discolored or deformed, or in any way appear abnormal during use, recharging or storage, immediately remove it from the device or battery charger and stop using it.
16.In case the battery terminals are dirty, clean the terminals with a dry cloth before use. Otherwise performance may occur due to the poor connection with the instrument.
17.Be aware discarded batteries may cause fire or explosion, tape the battery terminals to insulate them.
