Product Details
| Condition: | New | Type: | Pipe Belling Machine | Pipe Material: | Carbon Steel |
| Application: | Drain Pipe | Production Capacity: | 100 set/momth | Place of Origin: | Shanghai, China |
| Brand Name: | metform | Model Number: | FN-50 | Voltage: | 380V/240V/220V |
| Weight: | 500KG | Certification: | ISO9001:2000 | Warranty: | 1 year, 12 months following delivery |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

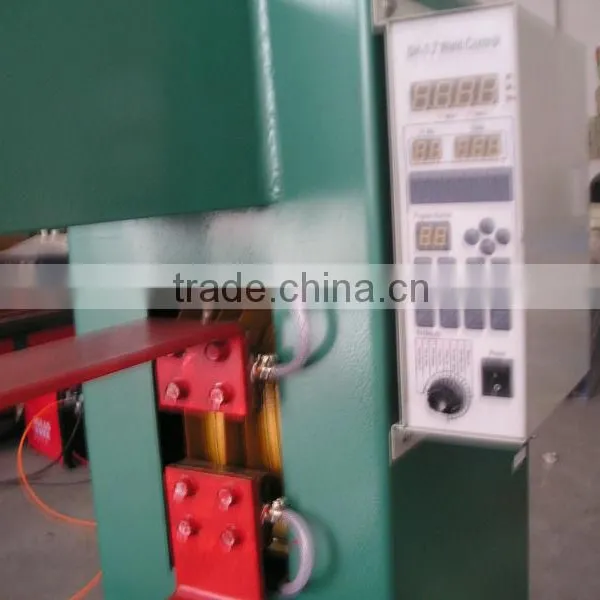

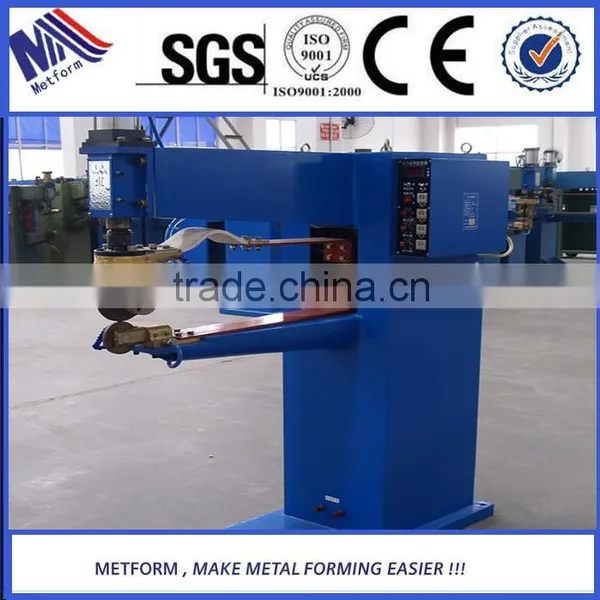

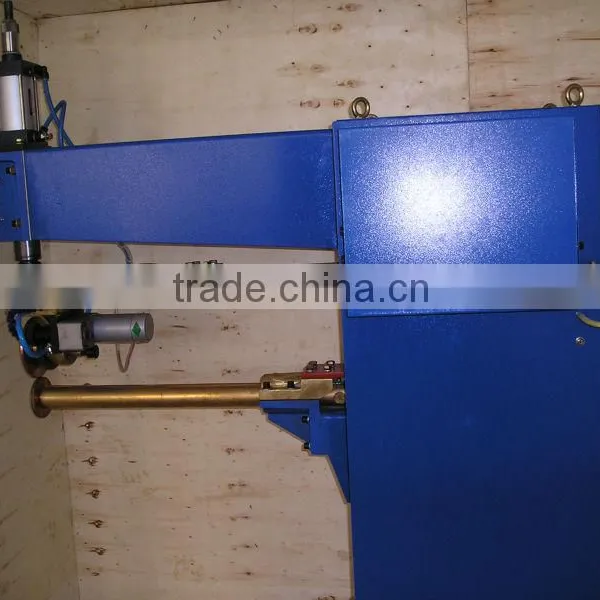

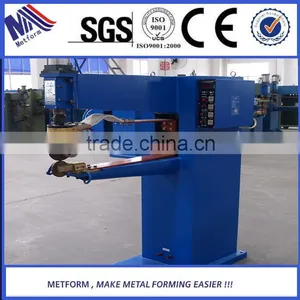

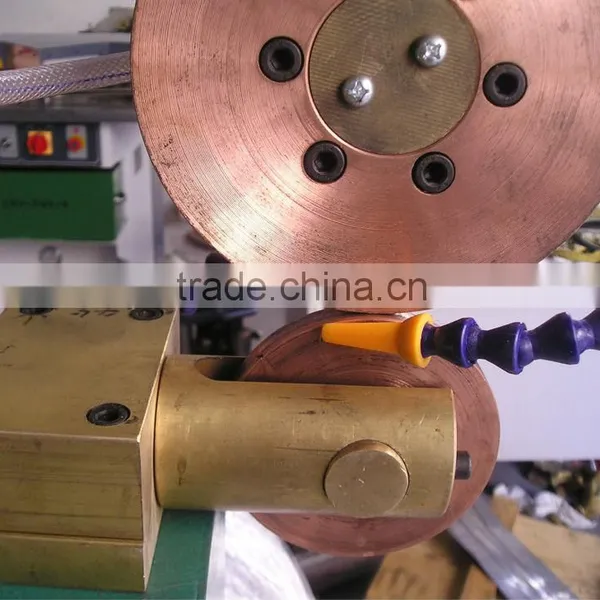

FN Series Sink Seam Welding Machine &cookware making machine price
Metform seam-welding machine adopts three-phase inverter driving, welding speed is uniform, convenient adjustment, stable.Longitudinal sewing machine have painted the welding and welding two forms Metform seam-welding machine is widely applied in hardware, electrical appliances, automobiles, tank and other manufacturing industries, the most suitable for welding low carbon steel, stainless steel bowl, barrel, and sealed containers of thin-walled box.
Technical Parameter
1. Main Transformer Rated Capacity: 75 KVA
2. Rated Power: 13 KW
3. Length of weld : Max 2150*2 mm
4. Duty Cycle: 20%
5. Electric motor power supply: 380V/ 3phase
6. Air compressure: 0.5Mpa-0.8Mpa
7. Machine Size: 3000x750x1700 mm
8. Machine weight: 450 Kg
Model NO. | FN-35 | FN-50 | FN-75 | FN-100 | FN-150 |
Rated primary voltage | 380V | 380V | 380V | 380V | 380V |
Rated capacity | 35KVA | 50KVA | 75KVA | 100KVA | 150KVA |
Rated primary current | 95A | 135A | 200A | 265A | 400A |
Secondary no load voltage | 5.3V | 6.0V | 6.3V | 7.0V | 7.5V |
Adjust method | electrodeless adjust | ||||
Duty cycle | 50% | 50% | 50% | 50% | 50% |
Max. welding thickness(mm) | 0.5+0.5 | 0.8+0.8 | 1.0+1.0 | 1.2+1.2 | 1.5+1.5 |
Max. force electrodes | 3000N | 3000N | 4700N | 6100N | 10000N |
Throat depth | Negotiation | ||||
The distance of the electrodes | Negotiation | ||||
Welding speed | 2m/min | 2m/min | 1.5 m/min | 1.5 m/min | 1.5 m/min |
FN Series Sink Seam Welding Machine &cookware making machine price
A.Warranty : one year
B.Engineers available to serve machine overseas
C.Strict factory inspection
D.Complete equipment manual
E.Online instruction
F.Provide all components, spare parts and consumptive material
Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal sheet/strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
FN Series Sink Seam Welding Machine &cookware making machine price
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q: You are Manufacturer or trading company?
A: We are 100% manufacturer with 17 year's manufacturing experience
Q: Can you do OEM service?
A: Yes, we can. Your design is accepted. Your own logo can be used on the machine.
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
seam welding machine is 85152900
Q: Do you accept LC payment?
A: Yes. Normally, our payment is 30% +70% TT. LC payment is also acceptable.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
