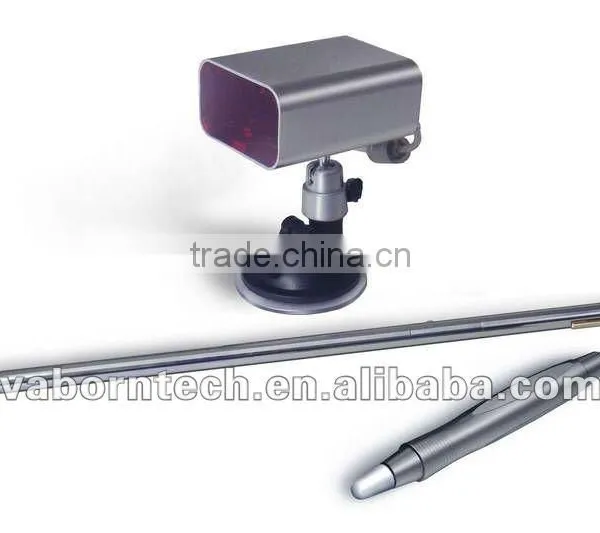

Short Focus Portable Interactive Whiteboard

Signal Receiver

Movement Detection Technology

Infrared

Active Area (max projection size)

150 inch diagonal

Active Area (horizontal angle)

33 +/- 2 degrees

Active Area (vertical angle)

0-30 degrees

Calibration Technology

Infrared Positioning

Active Distance (from projection screen)

1.5 - 5 m

Connectivity Interface

1 x USB Cable (connection distance up to 40 m)

USB Cable Standard Length

6m

Power Requirement

DC 5V (from USB port)

Power Consumption

< 1.5 W

Net Weight

180 g

Product Size

84 x 66 x 39 (mm)

Extendable Pointer

E-Pen (Electronic pen)

Movement Detection Technology

LED Light

Control Buttons

2 buttons ( left and right click of a mouse)

Power Requirement

3 V CR123A x 1

Pen Body Dimension

135mm (length); 10-20mm (diameter)

Pen Body Weight

85g (with battery)

Pointer Extendable Length

345 mm up to 676 mm (diameter: 10-13mm)

Pointer Weight

61g

Stylus E-Pen

Movement Detection Technology

LED Light

Control Buttons

2 buttons ( left and right click of a mouse)

Power Requirement

3 V CR123A x 1

Pen Body Dimension

15cm (length); 18.5cm (diameter)

Weight

66g (with battery)

System Requirements

OS Required

Microsoft Windows 98/2000/xp/Vista/7

Processor Type

Intel Pentium or above

RAM Size

128 MB

Min Hard Drive Space

30 MB

Recommended Signal Receiving Distance

Projection Size

Distance between Receiver and Projection Surface

56 inch

1.6 m

68 inch

2.1 m

70 inch

2.3 m

75 inch

2.5 m

85 inch

2.8 m

92 inch

3.2 m
