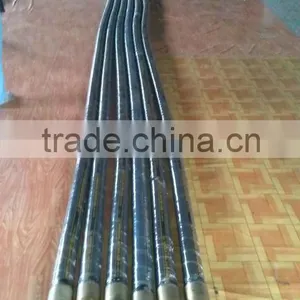

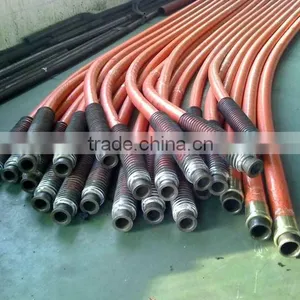

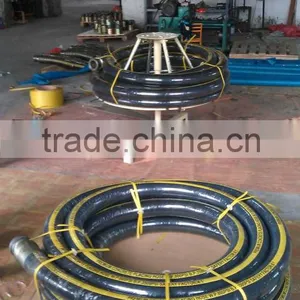

Concrete Pumping Rubber Hose

Concrete Pumping Rubber Hose photo-1

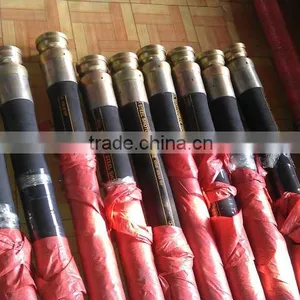

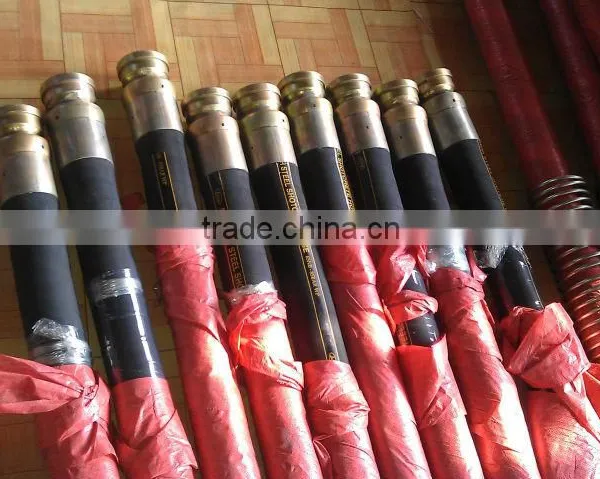

Concrete Pumping Rubber Hose photo-2

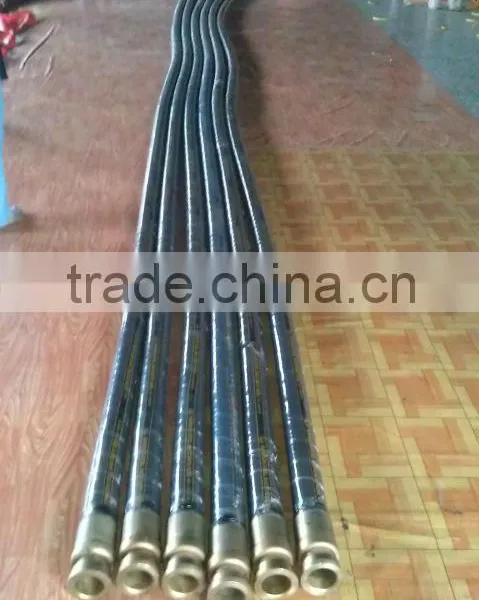

Concrete Pumping Rubber Hose photo-3

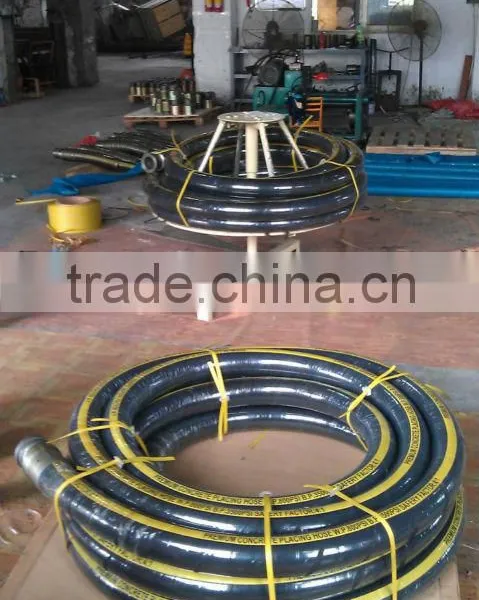

Concrete Pumping Rubber Hose photo-4

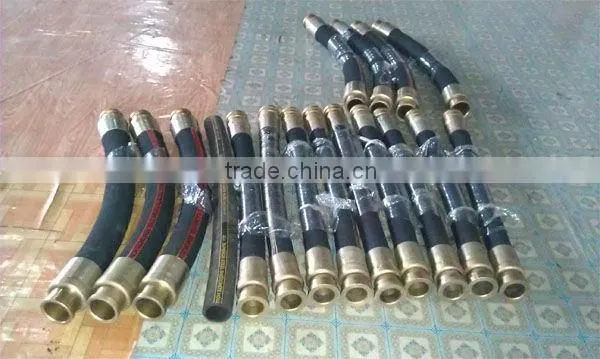

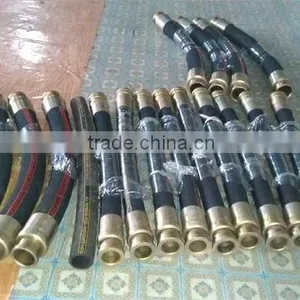

Concrete Pumping Rubber Hose photo-5

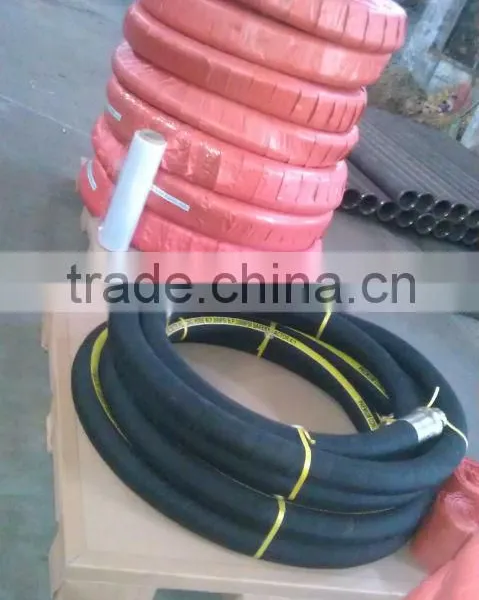

Concrete Pumping Rubber Hose photo-6
US$ 5.6 - 15 MOQ: 10 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Tengshun
Model Number:
TSP11
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Tengshun
Model Number TSP11
Material Other, synthetic rubber
Specification 2" to 5"
Length 1 meter, or upon client's required
Thickness 9±0.75 to16±1
Standard namal type

Specifications

High Pressure Ruber Hose
High Quality
Reasonable Price
Direct Market
Short Delivery



Concrete pump accessories - rubber hoses





Application: Used for suction and discharge of concrete, dry bulk materials and dry cement optionally with hardened ends and fittings





Cover: Synthetic rubber based compound mix, weather (ozone) and abrasion resistant, black, smooth with fabric impression.



Tube: Natural rubber based compound mix, abrasion resistant, black



Reinforcement:  layers of high tensile steel cord





OEM service ready for you !



Steel rubber hose table:





Spec. Inner diameter
   mm
wall thickness
   mm
outer diameter
   mm
working pressure
   bar
bursting pressure
   bar
bend radius
   mm
weight
kg/m
2" 50 9±0.7 68±1.5 85 240 200 2.6
2.5" 60 10±0.75 85±1.5 85 240 250 4.3
3" 76.2 12.9±1 102±1.5 85 240 270 6.1
3.5" 89 13.5±1 116±1.5 85 240 290 8
4" 101.6 14.2 ±1 130±1.75 85 240 300 9
4.5" 115 14±1 143±2 85 240 320 10.2
5" 127 16±1 158±2 85 240 360 12.5



  Tengshun concrete pumping steel rubber hose,  is highly  abrasion resistant to give extended service life and is extremely flexible for ease in handling. The hose is constructed of a robust structure to withstand heavy compressive loads and guarantee maximum safety. This hose is recommended for shotcrete and nozzling applications.

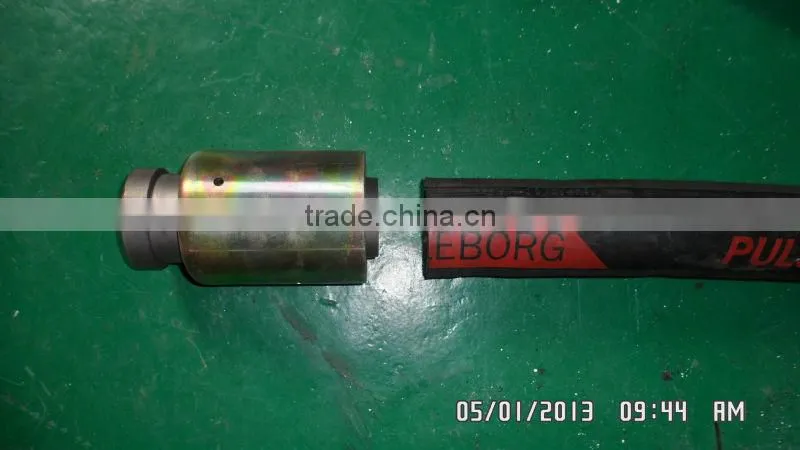

 The appropriate high pressure couplings and weld ends must be used. Values are for current supplied product.
