China Product Concrete Pumping Pipes for Pump Truck
- Shenzhen
- T/T Credit Card
You May Like
-
Widely Used DN125 ST52 Concrete Pumping Pipe
-
2015 Concrete Pump New Product Pipe for Heating Pump
-
Best Quality 45Mn2 CONCRETE PUMP PIPE
-
China Manufacturing Carbon Steel Concrete Pump Pipe
-
Lower Price in China! 1.5" up to 5" Hydraulic Hose Crimping Machine/2-in-one
-
Hydraulic Rubber Hose Crimping Machine Exporter/Rubber Pipe Locking Machine Seller
Product Details
| Place of Origin | Guangdong, China | Brand Name | TS | |
| Model Number | TS |
Product Description

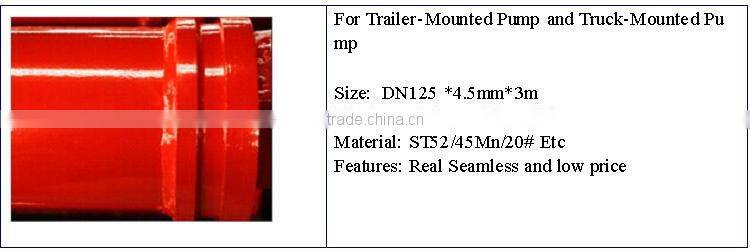

High quality DN125 Wear-resistant concrete Pump Pipe
Type | DN | Thickness (mm) | Length (mm) | Weld-on Ends | Applicable pump Brands |
ST52/ST37/20# /Q235steel pipe |
125 | 4.0 |
3000/ 2000/ 1000 | 148mm | Schwing,Putzmeister, CIFA, Kyokuto, Sany, |
|
| 4.5 |
| 148mm | Schwing,Putzmeister, CIFA, Kyokuto, Sany, |
|
| 7.0 |
| 148mm | Schwing,Putzmeister, CIFA, Kyokuto, Sany, |
Harden Pipe |
125
| 4.5 |
| 148mmChrome Carbide insert | Schwing,Putzmeister, CIFA, Kyokuto, Sany, |
|
| 7.0 |
| 148mmChrome Carbide insert | Schwing,Putzmeister, CIFA, Kyokuto, Sany |
ZX-Pipe(ST52) Harden ZX-Pipe | 125 | 7.0 |
| ZX-5 inch F/M Flanges | Putzmeister High Pressure |
| 125 | 7.0 |
| ZX-5 inch F/M Flanges | Putzmeister |
Schwing F/M pipe(ST52) |
125
| 4.0 |
| Schwing 5inch F/M Flanges | Schwing High Pressure |
|
| 4.5 |
| Schwing 5inch F/M Flanges | Schwing High Pressure |
|
| 7.0 |
| Schwing 5inch F/M Flanges | Schwing High Pressure |
|
| 8.0 |
| Schwing special F/M flanges | Schwing High Pressure |
Steel pipe |
100 | 4.5 | 3000 | 122mm/127mm/4inch HD | Others |
|
| 4.5 | 2000 | 122mm/127mm/4inch HD | Others |
|
| 4.5 | 1000 | 122mm/127mm/4inch HD | Others |
|
| 8.0 | 6000 | 6inch HD /ZX-6inch F/M | Others |
|
150 | 8.0 | 3000 | 6inch HD /ZX-6inch F/M | Others |
|
| 8.0 | 1500 | 6inch HD /ZX-6inch F/M | Others |
|
|
|
|
|
|
|
| 8.0 | 1000 |
/ZX-6inch F/M |
Product flange could according to your
requirements.
Different size,material ,types concrete pump pipe can be
customized as your request.
Information of Concrete Pump Pipes
1) Material:20#,ST52,45Mn2 etc.
2) Wall Thickness:4.0mm,4.5mm.7mm
3) Length:1000mm,2000mm,3000mm or according to the customer's requirement
4) Color:can be painted as customer's requirement,usually blue or red
5) Surface:Electrostatic Spraying Epoxy Paint on the hardened pipe surface.

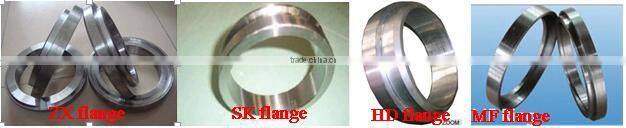

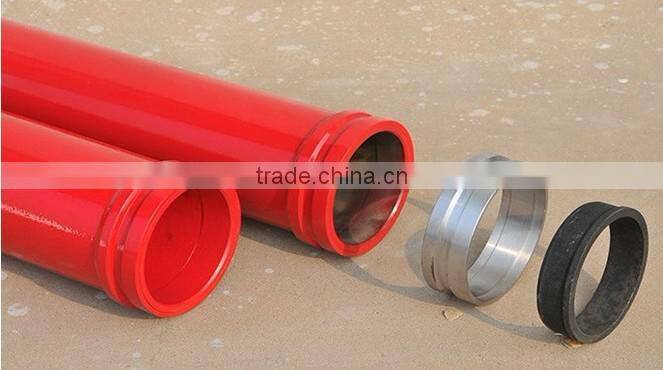

6) Flange:SK/ ZX /FM to connect the pipe,also the elbow.

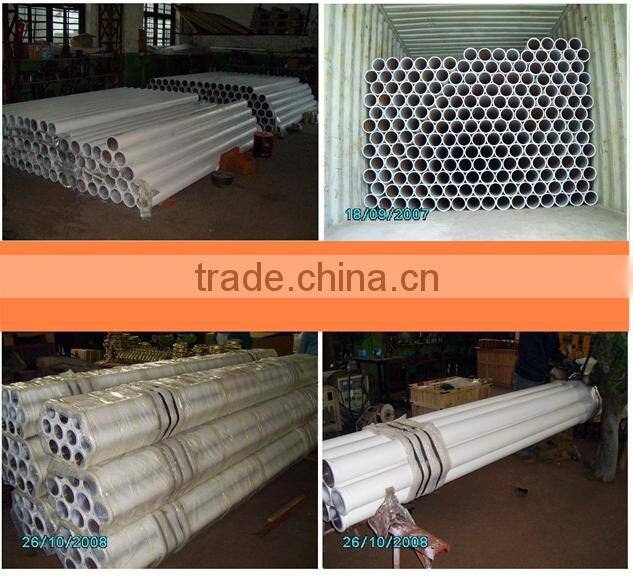

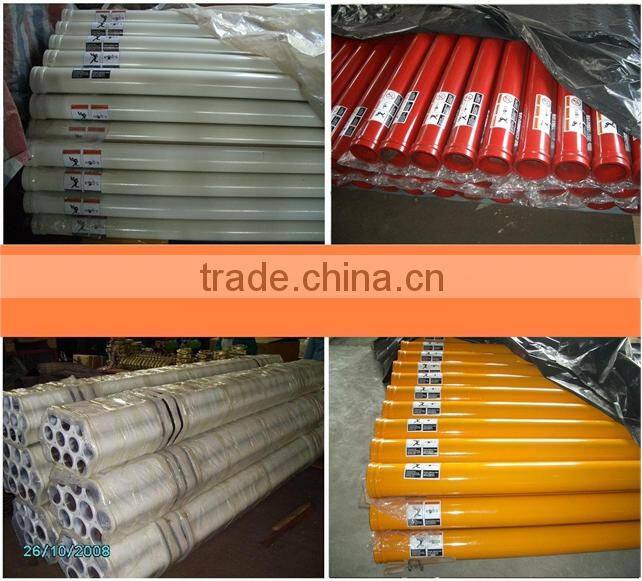

Packing:
1.Wrapped by water proof poly-bag to protect the painting and flanges.
2.Wooden case.
3.Iron shelf .
4.seaworthy or according to customers’ requirements.
Shipping:
about 7-15 days after receiving the deposit.
