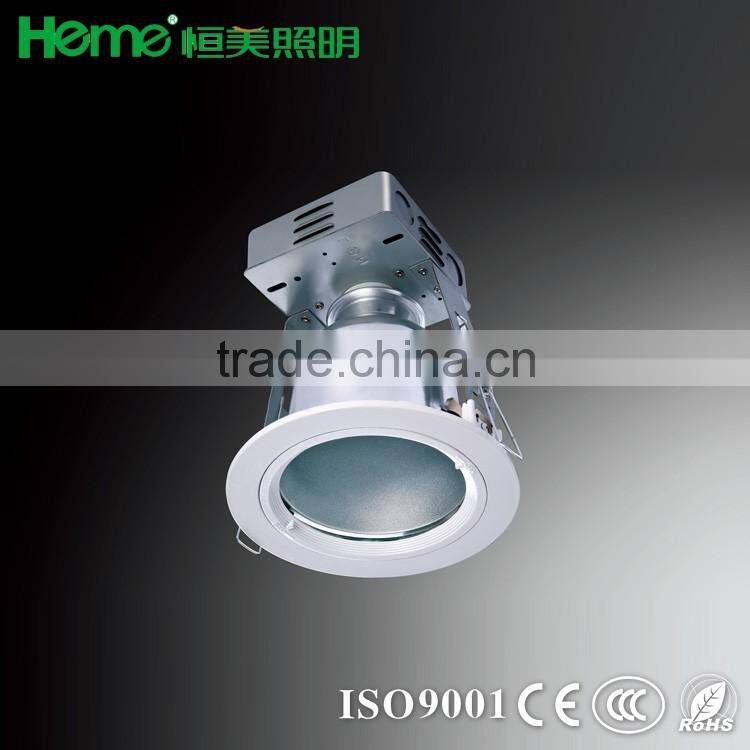

4" Vertical recessed aluminum trim downlight fixture with 157mm diameter 145mm cut out
| Mounting method: |
| Built-in method, suspended method |
| Fixation method: |
| Top-pressure method, lever method |
| Light Features: |
1.The lamp uses appearance and practicality patent, dual-ring die-cast aluminum surface design
2.Lamp body uses high-purity aluminum by die casting and imported 1mm electrolysis plate,the cast aluminum never rusting;and the electrolysis plate is pleasing to the eye and durable,and not liable to rusting.
3.Reflector:made with imported high-purity 1mm aluminum with Taiwan techniques,anodized treatment,and no photochromic change for overe 8 years under normal indoor use.
4.Equipped with safety toughened glass shade,so the reflector could keep high lighting output for a long run and play a cleaning role.
5.Uses HEME magnetic ballast or electronic ballast with high efficiency,energy saving and long service life.
|
| Model | Spec | Exterior Size (mm) | High (mm) | Cut-out Φ(mm) | Packing Size(cm) | Ouantitis (pcs/ctn) |
| HMC-184A | 8 inch 1x26W | 240 | 250 | 225 | 52x52x54 | 8 |
| HMC-185B | 8 inch 1xE27 | 240 | 250 | 225 | 52x52x54 | 8 |
| HMC-167A | 6 inch 1X18W | 200 | 190 | 185 | 65x44x44 | 12 |
| HMC-169B | 6 inch 1XE27 | 200 | 190 | 185 | 65x44x44 | 12 |
| HMC-153A | 5 inch 1x18W | 185 | 180 | 170 | 59.5x40.5x43.5 | 12 |
HMC-155B |
5 inch 1XE27 | 185 | 180 | 170 | 59.5x40.5x43.5 |
12 |
| HMC-142A | 4 inch 1×13W | 157 | 170 | 145 | 65×50×39 | 24 |
| HMC-143B | 4 inch 1xE27 | 157 | 170 | 145 | 65X50x39 |
24
|
