curved sheet metal roofing cheap
- 100000 Ton / Tons per Month
- Tianjin Port
- T/T
Product Details
Standard: | AISI, ASTM, BS, DIN, GB, JIS | Grade: | DC51D+Z/DX51D+Z/SGCC+Z | Thickness: | 0.18-1.6mm |
Place of Origin: | Hebei, China | Brand Name: | galvanized metal steel sheet and plate | Model Number: | roofing and wall pannel |
Type: | Steel Plate | Technique: | Hot Rolled | Surface Treatment: | Coated |
Application: | Other, roof panel/ wall panel | Special Use: | Wear Resistant Steel | Width: | 600-1250mm |
Length: | as per customer request |
Product Description

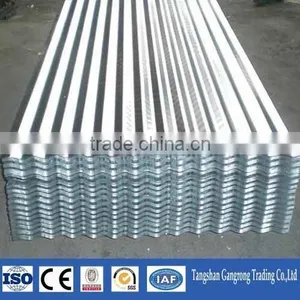

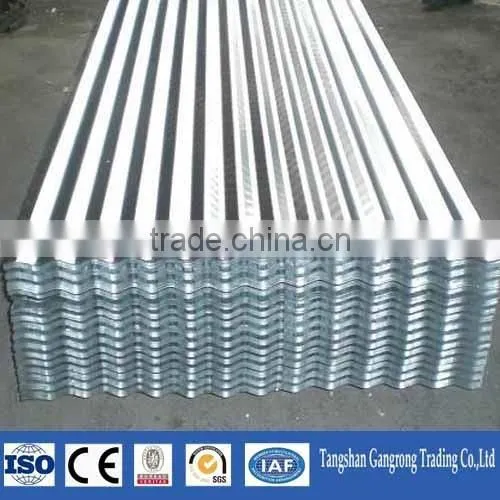

Item: curved sheet metal roofing cheap
1.Features of ppgi corrugated roofing sheet :
Item | Pre-painted corrugated steel roofing sheet and plate |
Standard | AISI,ASTM,,BS,DIN,GB,JIS |
Grade | SGCC/SPCC/SPHC/DX51D+z |
Thickness | 0.18-1.6mm |
Width | 600-1250mm |
Length | 1000-6000mm or as per customer request |
Waveform | hyperbolic waveform, ribbed, V shape, stiffened type |
Wave No. | As per customer request |
Wave height | 10-200mm or as per customer request |
Raw material | cold rolled, galvanied, gavalume, zin-iron steel sheet |
Packing | Plastic film +anti rust paper +metal cover+steel strip laded into a container |
Delivery Time | Within 30 working days depends on the order quantiti |
Place of Origin | Tangshan, China |
Payment | T/T,L/C |
MOQ | 25 MT |
Application | Wall pannel, roof pannel |
2.Application of ppgi corrugated steel metal roofingsheet :
widely used in the construction industry, doors and windows, rolling shutter door, house decoration ceiling and the home appliance industry:
3.Detailed description of ppgi or colored steel metal roofing sheet
Effective width mm | Spreading width mm | Corrugated height mm | Corrugated width mm | Sheet thickness mm | Moment of inertia cm4/m | Resistance moment cm4/m | Application |
750 | 1000 | 35 | 135 | 0.4 | 10.44 | 5.08 | roof panel /wall panel |
0.6 | 13.85 | 7.48 | |||||
0.8 | 18.83 | 10 | |||||
820/1025 | 1000/12000 | 25/28 | 205 | 0.4 | 6.77 | 3.02 | roof panel /wall panel |
0.6 | 9.58 | 4.82 | |||||
0.8 | 12.77 | 6.39 | |||||
840 | 1000 | 35 | 280 | 0.4 | 7.62 | 3.27 | roof panel |
0.6 | 10.27 | 5.42 | |||||
0.8 | 13.89 | 7.19 | |||||
850 | 1000 | 46 | 212 | 0.4 | 8.62 | 4.27 | roof panel /wall panel |
0.6 | 11.27 | 6.42 | |||||
0.8 | 14.89 | 8.19 | |||||
900 | 1000 | 15 | 225 | 0.4 | 5.3 | 2.82 | ceiling board /wall panel |
0.6 | 8.03 | 4.31 | |||||
0.8 | 10.71 | 5.68 | |||||
990 | 1200 | 35 | 255 | 0.4 | 5.3 | 2.82 | roof panel /wall panel |
0.6 | 8.03 | 4.31 | |||||
0.8 | 10.71 | 5.68 | |||||
760 | 1000 | 51 | 38 | 0.4 | 30.12 | 8.56 | Large span hidden roof panel |
0.6 | 37.27 | 12.29 | |||||
0.8 | 49.69 | 16.39 |
3.Advantage of ppgi or prepainte corrugated roofing sheet:
1)Attractive appearance, rich colors, flexible combination
2)Light weight, high mechanical properties
3)Anti-earthquake, fire, rain, long life, no maintenance 4)Installation is simple, shorten the construction period
5)Environmental protection
4.More products of steel sheet and palte for refference
1.Packaging Details:
1)plastic film + anti rust paper+ metal cover+ steel strip laded into a container
2) Client' requirements
2.Delivery Detail: 20-30 days after receiving deposit by TT or L/C
Pre-sale Service:
1.Reply your inquiry within 24 hours
2.Free samples can be offered and delivery charge will be covered by buyer's side
3.OEM and ODM orders are welcomed.
4.an abundant variety of steel products at very reasonable prices can be supplied
After Finalised Deal:
1.Timely production and delivery
2.Offer a full range of standard items to meet most industrial applications
3.With 100% inspection prior to shipment
4.Guarantees product quality and try our best to avoild quality objection
After-sale Service:
1.try our best to avoid any deffects caused by delivery
2.welcome any suggestion about our service
Tangshan Gangrong Trading Co., Ltd specialized in exporting steel produts. Steel sheet, steel coil, steel strip, steel pipe, iron wire are our hot selling produts. Besids the above, prepainted steel coil or sheet, galvanized steel become our main products to start the foreign business.
Our company has independant import and export rights.
For more information wellcome to contact us,
