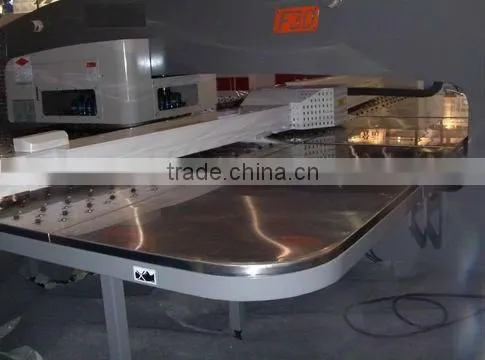

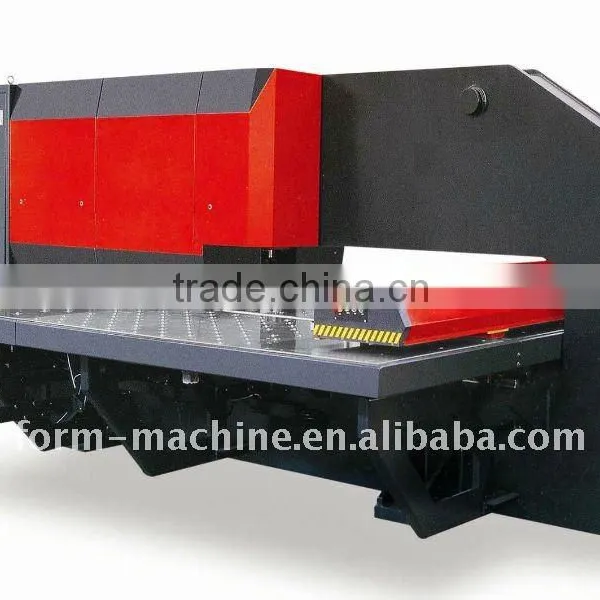

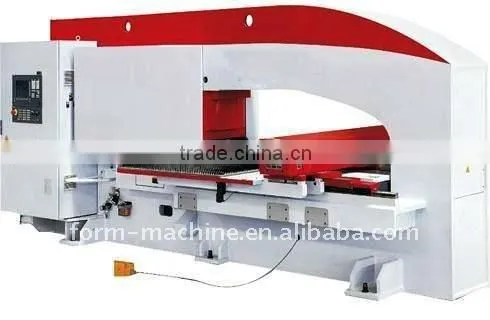

CNC Hydraulic Turret Punching MachineCNC Hydraulic Turret Punch Press SKO-3018 is fully automatic punching system.
CNC Hydraulic Turret Punching Machine
CNC Hydraulic Turret Punch Press SKO-3018 is fully automatic punching system, which consists of Turret Punching Machine, Automatic Feeding Table and CNC System.
1. Description and Features
The Press House is patented O-type close structure, featuring high rigidity and stability.
Tooling: Patented long bushed sleeve ensuing axiality of upper and down punching die as well as long usage life, thick turret tooling with a high surface hardness, anti-abrasion ability and good guidance
Auto-indexing Station: 2 set Self –rotation with worm gearing transmission
Control System is Siemens’ system as upon request.
( Fanuc or independently developed CNC system available too.)
Automatic Programming Software allow automatic conversion and punching from AutoCAD. Automatic reposition function, better for large volume production.
Control unit: the industrial integration PC, shockproof, suitable for anti-jamming workstation work environments.
Germany H+L Hydraulic System, is reliable compacted system.
Transmission systems are driven by world famous digital servo motors through linear guide way and precision ball screw.
Floating Clamps
All Electric and Pneumatic are famous brand with high quality.
Table surface with nylon brushes.
Centralized lubricating system
Die station allocated as same as AMADA
Standard Accessories:
One sets of dies,
Sizing Block 18 pcs
Pedal switch 1 pcs
General tool 1 set
Spare Parts
brush for table surface, Seals, Friction Plate and Toothed Plate
2. Specification
Punching Capacity KN 300
Max. sheet size mm 1250×2500
Max. Sheet weight kg 120
Max. thickness mm 6
Hole Dia. With thickness mm Æ50.8(δ≤2.9)Æ31.75(δ≤4.5)
Max. punching Dia. In a hit mm Æ88.9
Die Station 18
Distance accuracy between holes ±0.1 mm(step pitch≤200)
Rate Hit rate HPM 200
Max. Feeding Speed m/min 60
Turret Rotation r/min 30
O type press body , weld steel structure annealed
3-Axis Controlled X-Axis, Y-Axis and T
Lubrication Automatic
Clamps 2
Standard punching dies, the same AMADA
Power Supply Kw 11
Pneumatic pressure MPa 0.55
Overall Size mm 4680×3200×19600
