Tianyu hot sale plate and frame type cardboard fine filter
Let's start the journey of exploring our product

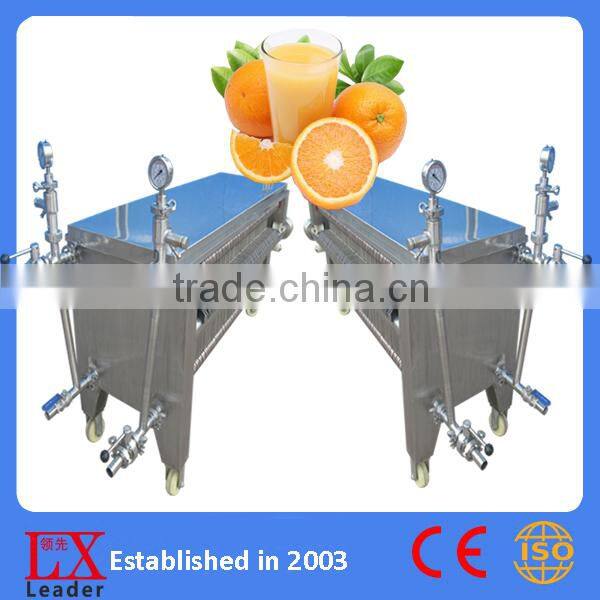

Tianyu hot sale plate and frame type cardboard fine filter
Introduction
Tianyu hot sale plate and frame type cardboard fine filter is produced with the technology imported from German.It is the clarifying and degerming machine which is the most widely used and the most reliable.It can be equipped with different type refined filtering or degerming cardboard to filter every kind of liquid products of different industries such as wine,drink,food,medicine and chemicals.Its retention rate of solid particles and thallus whose diameter is 0.2-0.5μm is 100 percent.So it can take place of the old technology of pasteurization,and it also can reserve the character of the original liquid products.
Working principle
Tianyu hot sale plate and frame type cardboard fine filter is connected with diatomite filter directly or with pump.The liquid products which need further filtration are conveyed to the import channel formed by filter plate,seal and end plate.Then they flow into the end plate and each fine filter box.Because of the pressure difference before and after filtration,the liquid products flow into filter box through the fine filter plate.Then under the closure,screening and adsorption of fine filter plate,the impurities such as solid particles and thallus are separated from the liquid products.Finally,the clarified liquid products flow out from the outlet channel at the other side of the filter plate.
Feature
(1)The structure of this machine is simple,and it is easy to use.
(2)This machine moves flexible.And it is easy to maintain.
(3)It can reserve the character of the original liquid products.The quality of filter is stable and reliable.
(4)It can re-filter the liquid products when the intermediate of filter plate group is set with special plates.Clarification and degerming can be carried same machine same time.
Applied field
Tianyu hot sale plate and frame type cardboard fine filter is mainly used to clarify and degerming filter liquid products of different industries such as wine,drink,food,medicine and chemicals.
Technical parameter
|
400×400 |
600×600 |
1000×1000 |
|||||
Reference flow |
Clarifying |
degerming |
Clarifying |
Degerming |
Clarifying |
Degerming |
||
Fruit wine(hl/h) |
20-40 |
15-25 |
45-75 |
30-50 |
70-105 |
45-70 |
||
Quantity of filter plate(piece) |
39 |
69 |
99 |
|||||
Quantity of end plate(piece) |
2 |
2 |
2 |
|||||
Filter area(m2) |
5.7 |
10 |
14.3 |
|||||
Filter cardboard size(mm) |
807×397×3.5 |
|||||||
Highest working pressure(MPa) |
0.4 |
|||||||
Biggest pressure difference(MPa) |
0.1 |
|||||||
Furthest journey of screw (mm) |
230 |
380 |
500 |
|||||
Overall dimensions(mm) |
2056×800×1050 |
2766×800×1050 |
3416×800×1050 |
|||||
Weight(kg) |
810 |
1000 |
1180 |
|||||
Patent and certificate
Packing
For export, we usually use different packs for different products according to its size.
For small size, crate case is adopted.
For big size and heavy good, fumigation-free wooden case or pallet is offered for 20’ or 40’ container or bulk shipment.
Five years export experience guarantees you to get your goods safely and quickly.
Doyou have questions? Pl refer to our FAQ.
1.Q: How can I get a suitable model?
A:Please tell me your fruit to be processed, its variety, purity, your requirement about capacity. Fruit photos are much appreciated. Then I will select suitable model for you.
2.Q:What is your machine material?
A:Our machine material is food grade stainless steel.
3.Q:I want a workshop layout for fruit juice production line designed by you, do your company accept?
A: Yes,You can tell me your length and width of your workshop, then I can design an rational and suitable one for you.
For more,please contact us!

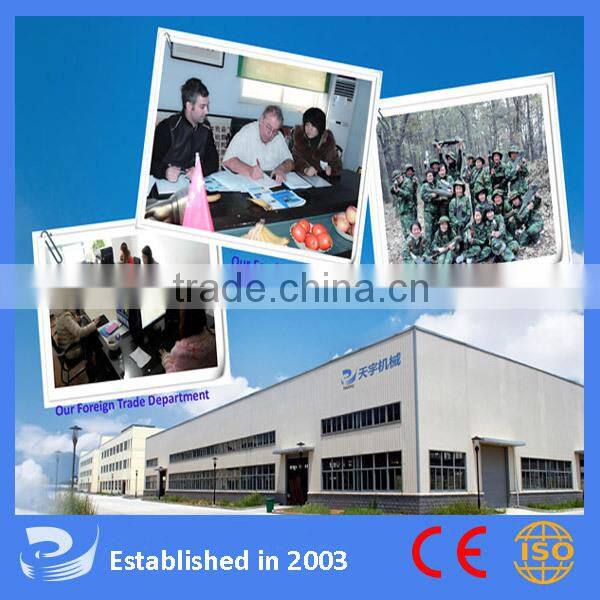

Our company:

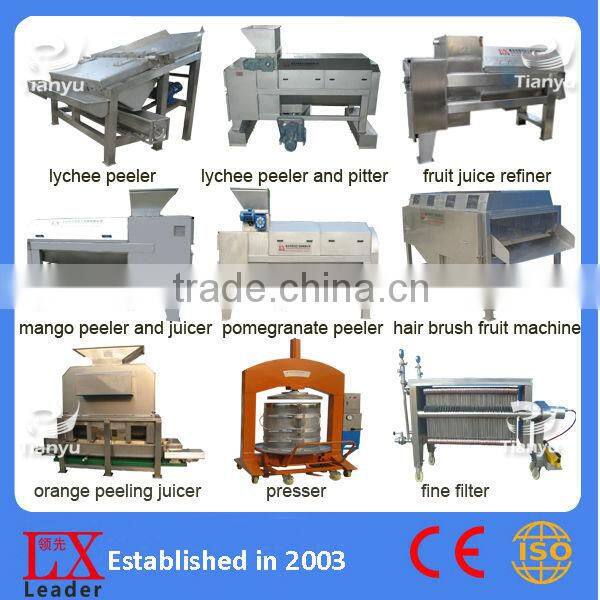

We also have other products
