Puzzle Car Parking System
Puzzle parking system is also refered as lift-sliding system according to its motion process. It runs through the movement of pallets in up-down and left-right directions. With diversified arrangement methods, it is applicable to either small or large-scaled parking garage.
In this system, a pallet is used in each parking space. The whole ground floor can be entrance/exit. The driver needs back his car onto the pallet to park. This system can accomadate maximum 7 levels.
Features:
- Simple operation principle. Park and pick-up vehicles through two actions of lifting and sliding of pallets;
- Modular combination design and production method, convenient for installation on site;
- Multiple arrangement methods, maximize increasing car parking spaces;
- Distributed bus control, more safer, reliable and humanized.
Item |
Specifications |
|
System type |
PSH, puzzle parking system |
|
Equipments type |
Lift-sliding mechanical parking system |
|
Max. car size (L*W*H)mm |
5000*1850*1550mm / 5300*2050*2050mm |
|
Max. load (kg) |
2000 ~ 2500kg |
|
Power |
AC 50Hz, 3-phase 380/220V |
|
Power capacity (KVA) |
3.5KVA / unit (single row) |
|
6KVA / unit (double row) | ||
Operation modes |
IC card and digit key |
|
Drive motor |
Elevating speed |
4.5m/min |
Sliding speed |
8m/min |
|
Anti-falling device |
Normally closed type anti-fall mechanical hook |
|
Structure |
Steel |
|
Vehicle access modes |
Drive forward in, back out |
|
Noise dB (A) |
≤60 |
|

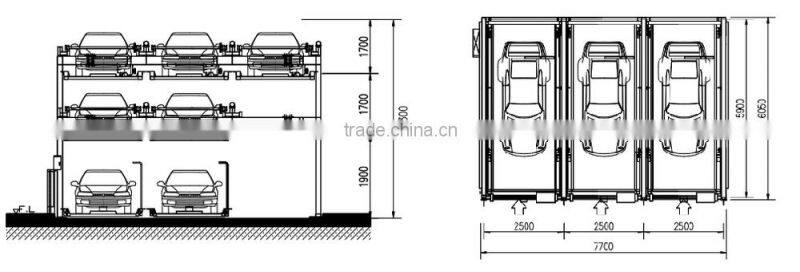

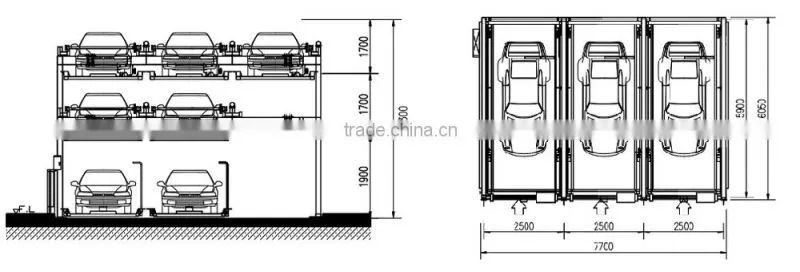

Dimensions:

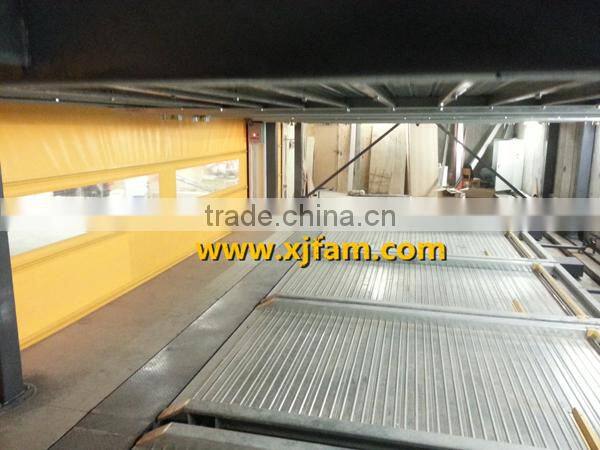

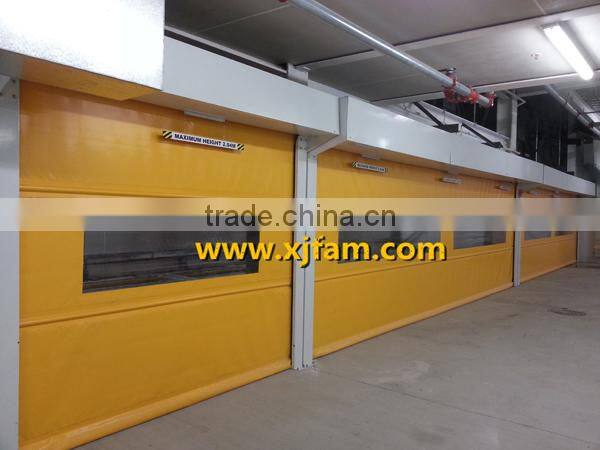

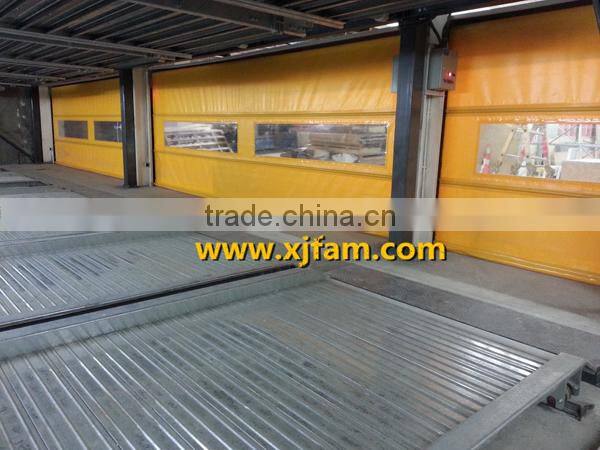

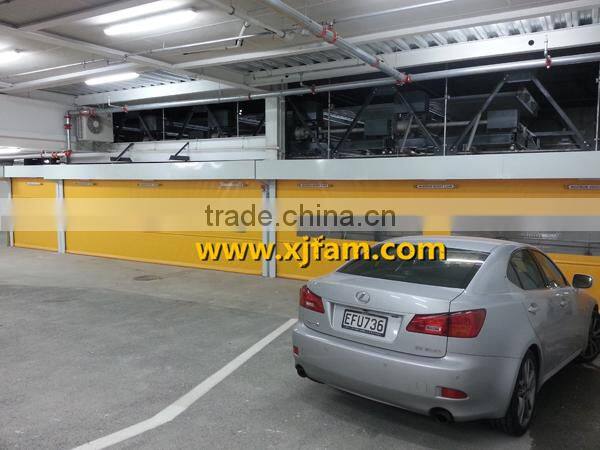

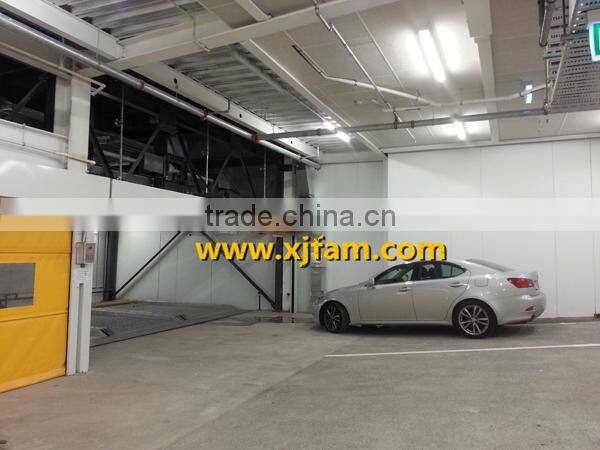

Projects:

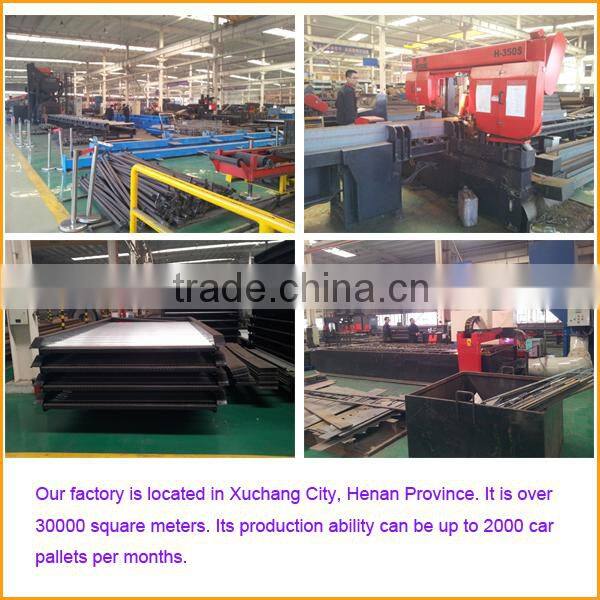

Our Factory :
Our Company :
Our Certifications :
