Expanded Fin Tube Heat Exchanger for Air Cooled
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Quanbang | Model Number | ZCTT | |
| Structure | Tube Heat Exchanger | Liquid Flow Rate | customized | |
| Weight | customized | Dimension(L*W*H) | customized | |
| Certification | Other, TUV | |||
| Warranty | 1 year | After-sales Service Provided | No overseas service provided |
Customized Packaging
Product Description
Expanded fin tube heat exchanger for air cooled
Surface air coolers are to cool air with chilled water and condense water in the air to achieve dehumidification. Mainly applied in HVAC industry, such as air handler and constant temperature and humidity system which requires cleaning, as well as high-grade business buildings and hotel.
Type: high conductive compact heat exchanger
Function: cooling and condensing the air for dehumidification
Pressure-bearing: medium level
Heat transfer feature: excellent, high heat transfer coefficient

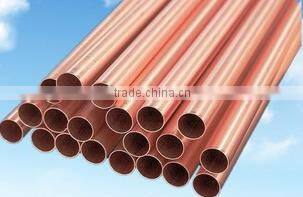

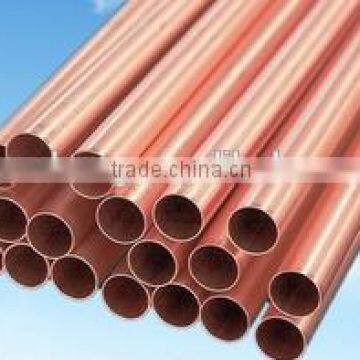

Material feature: expanded copper tube with copper fins

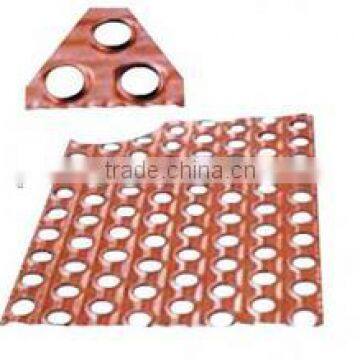

Fin shape:
Performance Parameter
Model | Air Flow(m3/h) | Windward Tubes | Effective Height | Heat Exchange Area (m2) | Header Tube Diameter | Total Heat Load (kw) | Water Flow(m3/h) | L×W×H (mm) |
ZCTT-4 | 208 | 4 | 152 | 4 | φ48×3.5 | 0.72 | 0.12 | 252×228×260 |
ZCTT-6 | 468 | 6 | 228 | 8 | φ48×3.5 | 1.62 | 0.28 | 328×304×260 |
ZCTT-8 | 832 | 8 | 304 | 15 | φ48×3.5 | 2.88 | 0.50 | 404×380×260 |
ZCTT-10 | 1300 | 10 | 380 | 23 | φ48×3.5 | 4.50 | 0.77 | 480×456×260 |
ZCTT-12 | 1871 | 12 | 456 | 33 | φ48×3.5 | 6.48 | 1.11 | 556×532×260 |
ZCTT-14 | 2547 | 14 | 532 | 45 | φ61×4 | 8.82 | 1.52 | 632×608×260 |
ZCTT-16 | 3327 | 16 | 608 | 58 | φ61×4 | 11.52 | 1.98 | 708×684×260 |
ZCTT-18 | 4211 | 18 | 684 | 74 | φ76×4 | 14.58 | 2.51 | 784×760×260 |
ZCTT-20 | 5198 | 20 | 760 | 91 | φ76×4 | 18.00 | 3.09 | 860×836×260 |
ZCTT-22 | 6290 | 22 | 836 | 110 | φ76×4 | 21.77 | 3.74 | 936×912×260 |
ZCTT-24 | 7486 | 24 | 912 | 131 | φ76×4 | 25.91 | 4.46 | 1012×988×260 |
ZCTT-26 | 8785 | 26 | 988 | 154 | φ76×4 | 30.41 | 5.23 | 1088×1064×260 |
ZCTT-28 | 10189 | 28 | 1064 | 179 | φ76×4 | 35.27 | 6.07 | 1164×1140×260 |
ZCTT-30 | 11696 | 30 | 1140 | 205 | φ89×4.5 | 40.49 | 6.96 | 1240×1216×280 |
ZCTT-32 | 13308 | 32 | 1216 | 234 | φ89×4.5 | 46.07 | 7.92 | 1316×1292×280 |
ZCTT-34 | 15023 | 34 | 1292 | 264 | φ89×4.5 | 52.01 | 8.94 | 1392×1368×280 |
ZCTT-36 | 16843 | 36 | 1368 | 296 | φ89×4.5 | 58.30 | 10.03 | 1468×1444×280 |
ZCTT-38 | 18766 | 38 | 1444 | 330 | φ108×4.5 | 64.96 | 11.17 | 1544×1520×280 |
ZCTT-40 | 20794 | 40 | 1520 | 365 | φ108×4.5 | 71.98 | 12.38 | 1620×1596×280 |
ZCTT-42 | 22925 | 42 | 1596 | 403 | φ108×4.5 | 79.36 | 13.65 | 1696×1672×280 |
ZCTT-44 | 25160 | 44 | 1672 | 442 | φ108×4.5 | 87.10 | 14.98 | 1772×1748×280 |
ZCTT-46 | 27500 | 46 | 1748 | 483 | φ108×4.5 | 95.19 | 16.37 | 1848×1824×280 |
Mainly applied in HVAC industry
