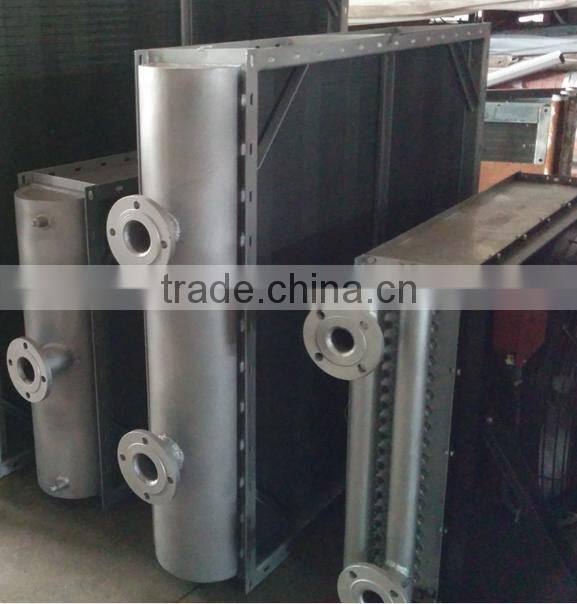

Air dryer finned heat exchanger prices
This kind of heat exchangers are to use steam, conduction oil and hot water etc. to dry air to the required temperature. Mainly applied in Chemical Industry, Cereals and Oil Industry, Feed Processing Industry and so on.
Type: High Conductive Compact Heat Exchanger
Heating Source: low/medium pressure steam (0.3-2.5MPa); conduction oil; hot water.
Pressure-bearing: High
Heat Transfer Function: good heat transfer; a large surface area in a small volume; low wind resistance

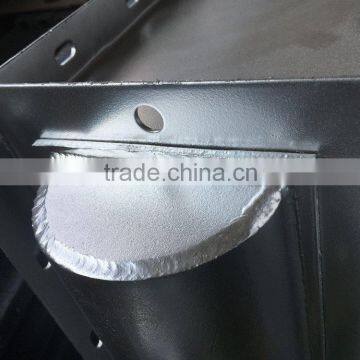

Material Feature: (carbon steel tube and fin) integral hot-dip galvanized, outer frame galvanized.
Array: aligned arrangement

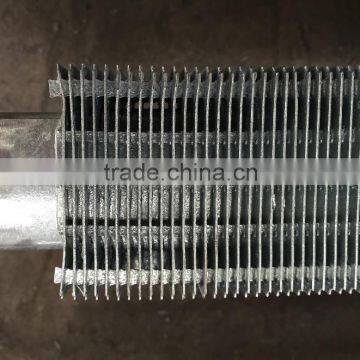

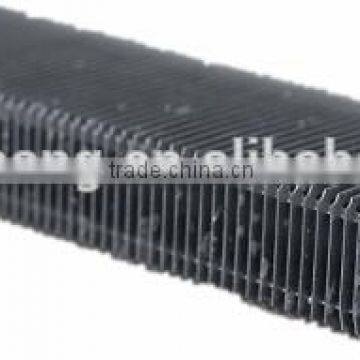

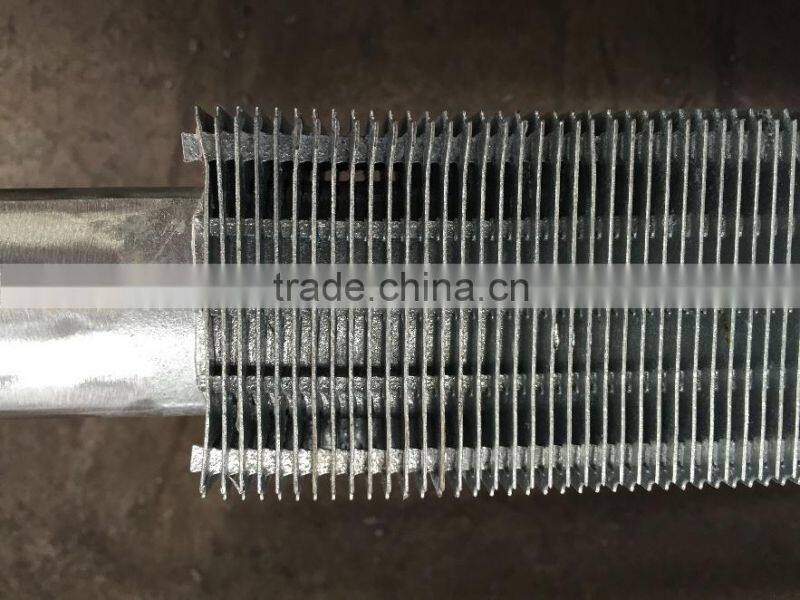

Fin Shape
Model |
Air Flow (m3/h) |
Windward Tubes |
Effective Height (mm) |
Heat Exchange Area (m2) |

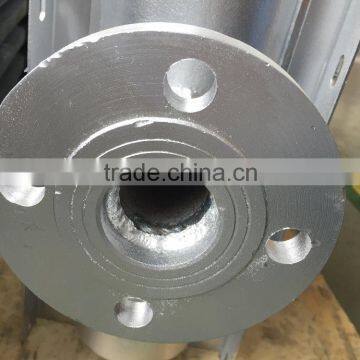

Header Tube Diameter |
Total Heat Load (kw) |
L×W×H (mm) |
||
Steam |
Conduction Oil |
Hot Water |
|||||||
TSCC-25×4×0.5 |
6000 |
25 |
520 |
47 |
φ61×4 |
208 |
125 |
83 |
740*300*930 |
TSCC-25×4×1 |
12000 |
25 |
1040 |
94 |
φ61×4 |
415 |
249 |
166 |
740*300*1450 |
TSCC-50×4×0.8 |
18000 |
50 |
770 |
139 |
φ76×4 |
623 |
374 |
249 |
1390*300*1180 |
TSCC-50×4×1 |
24000 |
50 |
1025 |
185 |
φ76×4 |
831 |
498 |
332 |
1390*300*1435 |
TSCC-50×4×1.3 |
30000 |
50 |
1282 |
231 |
φ76×4 |
1039 |
623 |
415 |
1390*300*1692 |
TSCC-65×4×1.2 |
36000 |
65 |
1184 |
277 |
φ76×4 |
1246 |
748 |
498 |
1780*300*1594 |
TSCC-65×4×1.4 |
42000 |
65 |
1380 |
323 |
φ89×4.5 |
1454 |
872 |
582 |
1780*300*1790 |
TSCC-65×4×1.6 |
50000 |
65 |
1643 |
384 |
φ89×4.5 |
1731 |
1039 |
692 |
1780*300*2052 |
TSCC-65×4×1.8 |
60000 |
65 |
1793 |
420 |
φ89×4.5 |
2077 |
1246 |
831 |
1780×300×2203 |
TSCC-75×4×1.8 |
70000 |
75 |
1813 |
490 |
φ114×6 |
2423 |
1454 |
969 |
2040*300*2223 |
TSCC-75×4×2.1 |
80000 |
75 |
2072 |
559 |
φ114×6 |
2769 |
1662 |
1108 |
2040*300*2482 |
TSCC-82×4×2.1 |
90000 |
82 |
2132 |
629 |
φ114×6 |
3116 |
1869 |
1246 |
2222*300*2542 |
Applied in Drying Installations, Food Processing and Chemical Industry etc.
