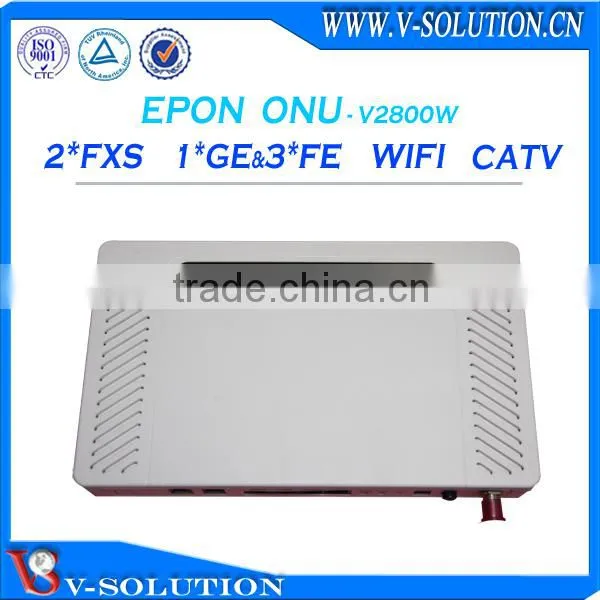

Broadcom BCM6828G Chipset 4GE+2POTS+WiFi+CATV EPON ONU, Wifi ONU

Broadcom BCM6828G Chipset 4GE+2POTS+WiFi+CATV EPON ONU, Wifi ONU photo-1

Broadcom BCM6828G Chipset 4GE+2POTS+WiFi+CATV EPON ONU, Wifi ONU photo-2

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

V2800W

Contact Supplier Request Quote Chat Now

Guangzhou V-Solution Telecommunication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name VS

Model Number V2800W

For more information, please contact me directly

Skype: linda.hyl

Introduction

EPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. They were developed by V-SOLUTION independently. These boxes are based on the mature Gigabit EPON technology, which have high ratio of performance to price, and the technology of 802.11n Wi-Fi (2T2R), Layer 2/3, CATV receiver/WDM(V2800W only) and high quality VoIP as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.

Special features

l Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.

l Integrated OAM and TR069 remote configuration and maintenance function.

l Support rich QinQ VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature.

l Support fiber transceiver, CATV Receiver and RF output diagnostic monitoring (V2800W only), fiber transmitter and RF receiver disable remotely.

l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

l Support 802.11n Wi-Fi(2T2R) function.

l Support NAT, Firewall function.

l Support IPv4 and IPv6 dual stack.

l Integrated line testing compliant with GR-909 on POTS.

l The WAN port supports bridge, router and bridge/router mixed mode.

Ordering information

Product model	Core Chip	GE	FE	POTS	CATV	Wi-Fi
HG326E	BCM6828F	/	4	2	/	Ö
HG326UE	BCM68380	/	4	2	/	Ö
V2800W	BCM6828F	1	3	2	Ö	Ö

Technical parameters

Technical items	Descriptions
PON interface	1 EPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm, CATV 1550nm(V2800W only)
Optical interface	SC/PC(HG326E/HG326UE), SC/APC(V2800W)
RX sensitivity	< -25dBm @ 1490nm
CATV interface	SCTE F type(V2800W only)
CATV input	-8 to 0 dBm(V2800W only)
RF output	80dBuV @ -8 to +2 dBm(V2800W only)
WLAN	Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R HG326E/HG326UE one internal antenna and one external antenna V2800W two internal antennas
WLAN throughput	100Mbps @ 40users, 1518bytes, no-encryption 107Mbps @ 40users, 512bytes, encryption
LAN interface	V2800W: 110/100/1000Mbps and 310/100Mbps HG326E/HG326UE: 4*10/100Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Router throughput	Upstream: >390Mbps @ 1518bytes, Downstream: >390Mbps @ 1522bytes
POTS interface	2 FXS, RJ11 connectors
Indicators	HG326E/HG326UE:14 indicators, V2800W:11 indicators
DC power supply	+12V, external AC-DC power adaptor
Button	RST, Power, Wi-Fi, WPS, Pair
Power consumption	≤ 10W(HG326E/HG326E), ≤ 12W (V2800W)
Operating condition	Operating temp: -5 ~ +55℃,Operating humidity: 10~90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60℃,Storing humidity:10~90%(non-condensed)
Dimension	HG326E/HG326UE:205mm138mm50mm(lengthwidthheight) V2800W:240mm150mm37mm(lengthwidthheight)
Net weight	HG326E/HG326UE:0.4Kg, V2800W:0.62Kg

Data Service Functions

1) Full speed non-blocking switching.

2) 2048 MAC address table.

3) 64 full range 4095 VLAN ID

4) Support VLAN QinQ, transparent, tag, translation, trunk, etc.

5) Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

6) Support auto polarity detection of Ethernet ports (AUTO MDIX).

7) Integrated IEEE802.1p QoS with four level priority queues.

8) Support IPv4 IGMP snooping and IPv6 MLD snooping.

9) Support bridging, router and bridge/router mixed mode.

POTS Service Functions

1) Call protocol: SIP (IMS compatible), seamless compatible with all popular call agent.

2) Integrate heartbeat function and support active/standby call agent.

3) Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.

4) Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.

5) Support high/low speed fax/Modem, bypass fax, and T38 fax.

6) Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.

7) Multi-party conferencing.

8) Line testing according to GR-909.

9) IP address assignment: dynamic PPPoE/DHCP Client and static IP.

10) Support WEB, CLI, TR069.

11) Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade.

12) Call loss is less than 0.01%.

CATV Service Functions

1) RF frequency: 45~875MHz.

2) Turn on/off RF output remotely.

3) RF level can be showed on PC Web real time.

Wi-Fi service

1) Integrated 802.11b/g/n, 300Mbps, 2T2R.

2) Support 128 connections.

3) Support WEP and WPA/WPA2 security protocols.

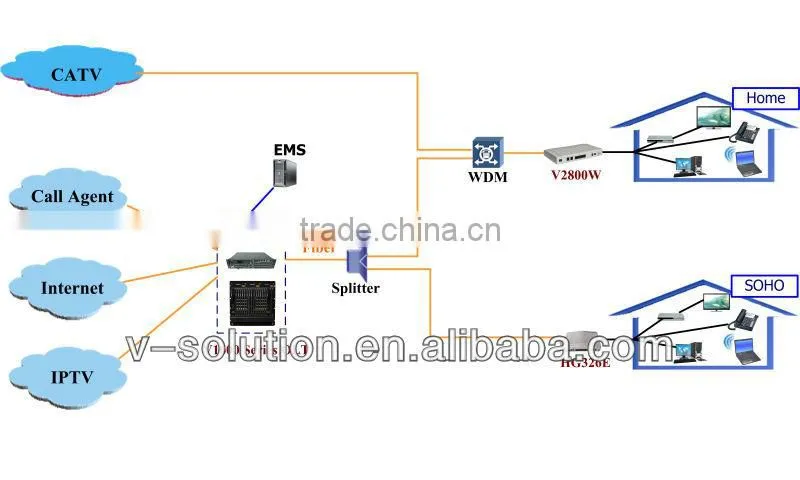

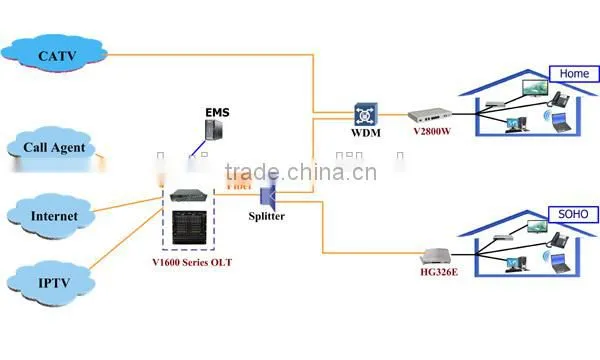

Application chart

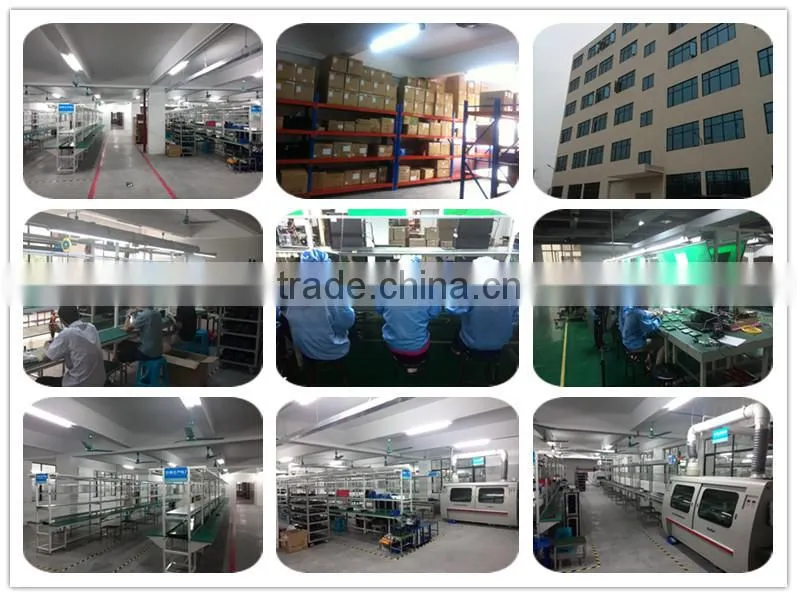

Factory

WHY choose V-SOLUTION?

1. We have our own factory that can provide customized service for you, for example, both ZTE and FIBERHOME are our clients

2. Our ONU can be compatible with HUAWEI, ZTE, FIBERHOME, BDCOM, C-DATA OLT etc.

3. Experienced team to provide best technical support services .

4. Delivery in time: we already established successful cooperation with many famous courier companies in China, DHL, Fedex, UPS, TNT, EMS. We can delivery the goods to you door to door in time.
