Introduction

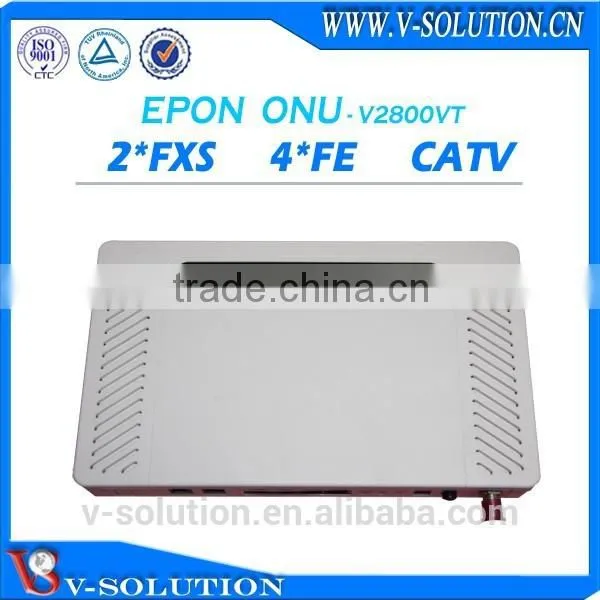

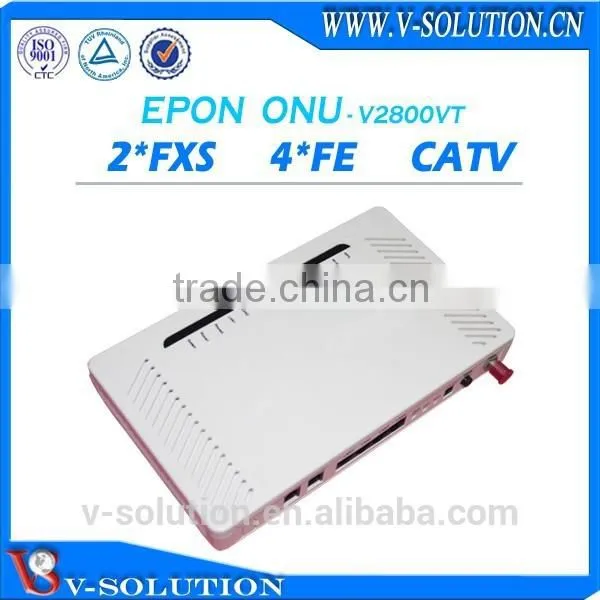

V2800 series products are EPON ONU terminal devices designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators. It was developed by V-Solution independently. This box is based on the stable and mature Gigabit EPON technology, which has high ratio of performance to price, and the technology of Layer 2 Ethernet switch, CATV, WDM and high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QoS for different service. And it is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.
Special features
l Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technologies.
l Integrated OAM remote configuration and maintenance function.
l Support rich QinQ VLAN function and IGMP snooping multicast feature.
l Integrated line testing compliant with GR-909 on POTS.
l Support EPON fiber transceiver, CATV Receiver and RF output diagnostic monitoring, EPON fiber transmitter and RF receiver disable remotely.
l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
l For small and medium-sized operators, VoIP services are customizable.
Technical parameter
Technical items |
Descriptions |
Uplink interface |
Single fiber triplexer incorporates symmetric 1.25Gbps upstream / downstream and 45~875MHz CATV downstream analogue signal |
Wavelength |
EPON Tx 1310nm, EPON Rx 1490nm, CATV Rx 1550nm |
Fiber connector |
SC/APC connector |
Downlink of DATA |
4x 10/100Mbps auto adaptive Ethernet interfaces, Full Duplex / Half Duplex, AUTO-MDIX, RJ45 connectors |
Downlink of POTS |
2x FXS, RJ11 connectors |
Downlink of CATV |
SCTE F type |
Indicators |
11 indicators, for status of power supply, PON, LAN, POTS and CATV |
DC power supply |
+12V, external AC-DC power adaptor |
Power switch |
1, power on and off |
Reset button |
1, reset and restore to factory configuration |
Power consumption |
≤10W |
Operating condition |
Operating temp: -5 - +55°C, operating humidity:10-90% (non-condensed) |
Storing condition |
Storing temp: -30 - +60°C, storing humidity:10-90% (non-condensed) |
Dimension |
245mm*155mm*35mm(length*width*height) |
Net weight |
0.51Kg |
POTS Service Functions
1) Call protocol: SIP (IMS compatible), seamless compatible with all popular call agent.
2) Integrate heartbeat function and support active/standby call agent.
3) Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.
4) Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.
5) Support high/low speed fax/Modem, bypass fax, and T38 fax.
6) Multi-party conferencing.
7) Line testing according to GR-909.
8) IP address assignment: dynamic PPPoE/DHCP Client and static IP.
9) Support WEB, CLI, TR069.
10) Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade.
CATV Service Functions
1) RF frequency: 45~875MHz.
2) Turn on/off RF output remotely.
3) RF level can be showed on PC Web real time.
WiFi service
1) Integrated 802.11b/g/n.
2) Support WEP and WPA/WPA2 security protocols.
Application chart
1. Shipping:We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS .
2. Packaging: standard carton which suitable for air/ sea transportation.
1.Good Reply:Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design and put your good idea into products.
3.Warranty: 1-years warranty
V-SOLUTION Telecommunication Technology Co., Ltd. is a professional manufacturer in China Guangzhou. Our company has established business relations with over 50 countries worldwide and more than 100 companies . We devote to product GEPON ONU, GEPON OLT, GPON ONU, VoIP Gateway, Fiber CPE, Wifi Module, and so on.
1.Can we get a lower price? Any Discount?
Yes,price is not a problem,everything could be negotiated based on the quantity.
2.Can I get a free sample?
Sorry that V-Solution is not available to new customer.
3.We are new in this PON fields,can you help me and recommend me some items?
Yes,of course.it is our pleasure to help you with it.
You only need to offer us more details about your application.
4.What is your MOQ?
No MOQ for any sample test,at least 10pcs/models after sample order.
5.OEM,ODM Service is available?
Yes,V-Solution have strong ability to offer customers ODM&OEM products of highest quality.
And it will requirement about your quantity.
6.For Trade Terms,such as payment and leadtime.
>Payment Terms:We mainly support T/T bank transfer,Paypal and Western Union
>Price Terms:FOB Guangzhou
>Shipping Methods: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
>Leadtime: Sample order,3-7work days; Bulk order 15-25work days(after your payment )
7.How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
For more information,Please contact with us !
