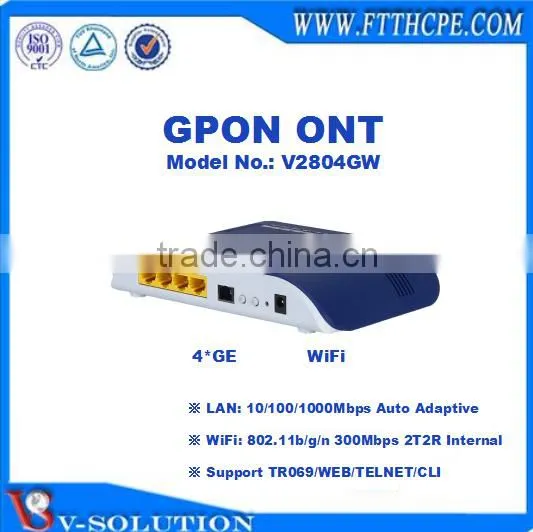

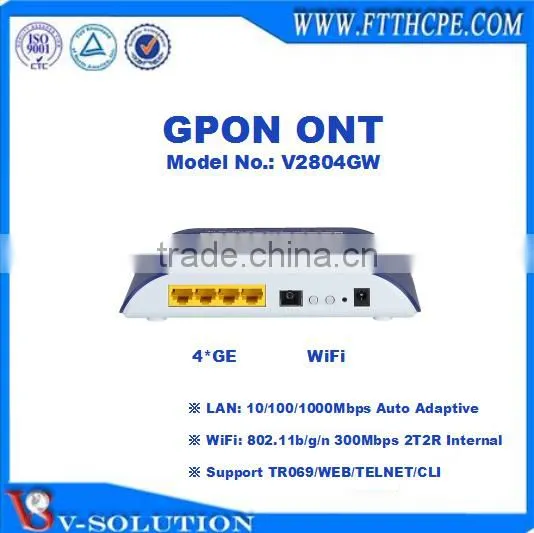

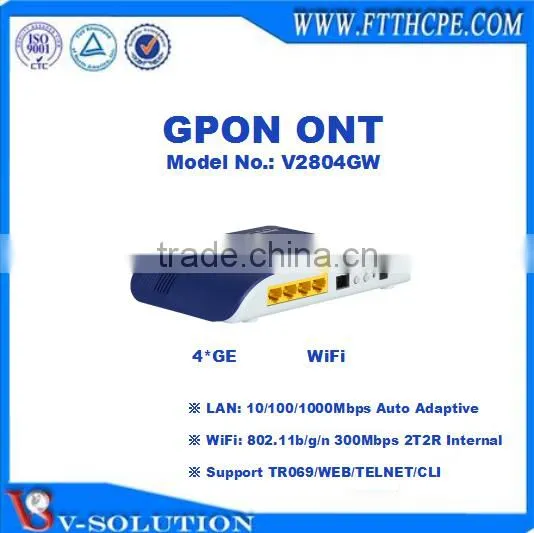

4GE+WiFi GPON ONT GPON ONU
with CE Certification
For FTTH Solution
4GE+WiFi GPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature GPON Chipset (BCM6838) technology, which have high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3 ethernet switching technology. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as ITU-T G.984.x.
Technical Parameter |
4GE+WiFi GPON ONT |
PON interface |
1GPON connector, SC single-mode/single-fiber, Upstream 1.25Gbps, downstream2.5Gbps |
Wavelength |
Tx1310nm,Rx 1490nm |
Optical interface |
SC/PC connector |
Interface |
4x 10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100M Full /Half Duplex, 1000 Full Duplex.RJ45 connectors. |
Wireless |
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R two internal antenna |
LED |
9, For Status of POWER,PON ,LOS,WiFi,Lan,Pair. |
Operating condition |
-5℃~55℃,10%~90%(non-condensed) |
Storing condition |
-30℃~60℃,10%~90%(non-condensed) |
Power supply |
DC 12V,1A |
Power consumption |
≤10W |
Dimension |
185mm×122mm×33mm(L×W×H) |
Net weight |
0.3Kg |
Compatibility
Manufacturers |
Model |
Compatibility |
HuaWei |
M5680T(M5600T Oversea) |
Fully compatible |
ZTE |
C300/C220 |
|
FiberHome |
AN5516 Series |
|
Gcom(New GreenNet) |
EL5600-04P/08P |
1. Shipping: We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.
2. Packaging: standard carton which suitable for air/ sea transportation.
1. Quick Reply: Your inquiry related to our products or price will be replied within 24 hours.
2. OEM&ODM: We can help you to design and put your good idea into products.
3. Warranty: 365 days
V-SOLUTION Telecommunication Technology Co., Ltd. is a professional manufacturer in China Guangzhou. Our company has established business relations with over 50 countries worldwide and more than 100 companies . We devote to product GEPON ONU, GEPON OLT, GPON ONU, VoIP Gateway, Fiber CPE, Wifi Module, and so on.
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Sorry that V-Solution is not available to new customer.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test, at least 100pcs/models after sample order.
5. OEM/ODM Service is available?
Yes, V-Solution have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW Guangzhou
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment).
7. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other
brands.
For more information, please feel free to contact with me.
