Introduction

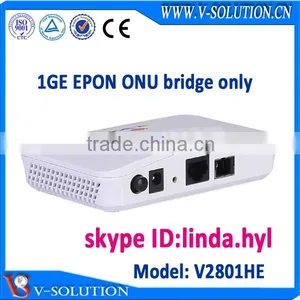

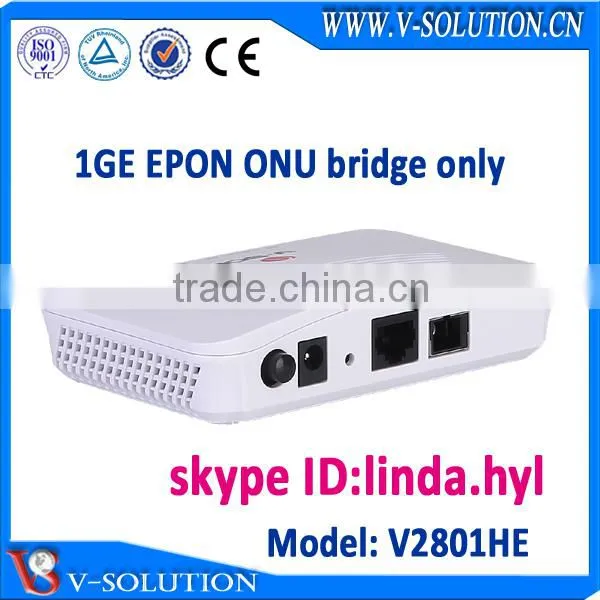

V2801HE is low density EPON data ONUs designed for fulfilling FTTH request of telecom operators,
internet access of SOHO people and renovation request of EPON+EOC infrastructure of cable TV operators.
These products are based on the stable and mature Gigabit EPON technology, which have high performance
/price ratio, and the technology of layer 2 Ethernet switch as well. They are highly reliable and easy to maintain,
with guaranteed QoS. And they are fully compliant to technical regulations such as IEEE802.3ah and technical
requirement of EPON Equipment (V2.1 and above version) from China Telecom.
Special features
l Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade, etc.
l Integrated OAM remote configuration and maintenance function.
l Support rich QinQ VLAN function and IGMP Snooping multicast feature.
l Functions like transceiver diagnostic monitoring, transmitter disable, etc.
l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Technical parameter
Technical items |
Descriptions |
|
Upstream PON interface |
1 EPON interface, SC single-mode/single-fibre, symmetric 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Optical interface |
SC/PC connector |
Downstream LAN interface |
V2801E: 1x 10/100/1000Mbps auto adaptive Ethernet interface, Full Duplex/Half Duplex, RJ45 connector |
Indicators |
V2801E: 4 indicators, for status of power, PON port and 1 Giga-Ethernet port. |
DC power supply |

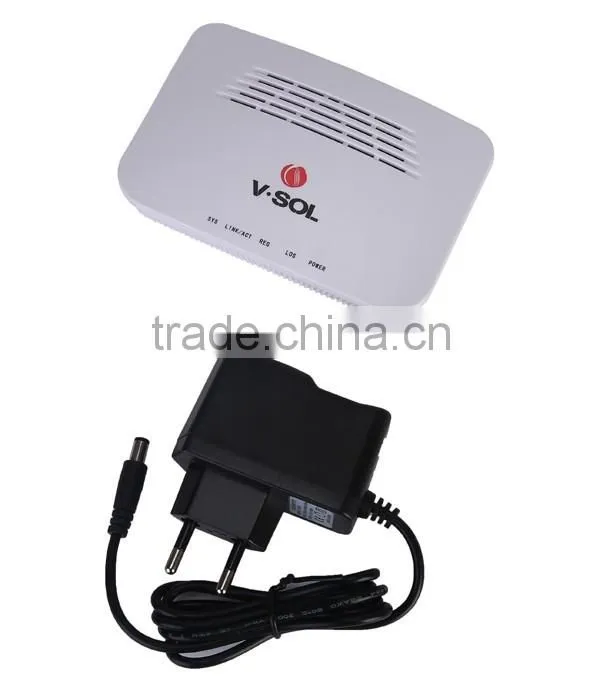

+12V, external AC-DC power adaptor |
Power switch |
1, Power On/Off |
Power consumption |
≤3W |
Operating condition |
Operating temp: -5 - +55°C, operating humidity:10-90%(non-condensed) |
Storing condition |
Storing temp: -30 - +60°C, storing humidity:10-90%(non-condensed) |
Dimension |
115mm*75mm*28mm (length*width*height) |
Net weight |
0.2Kg |

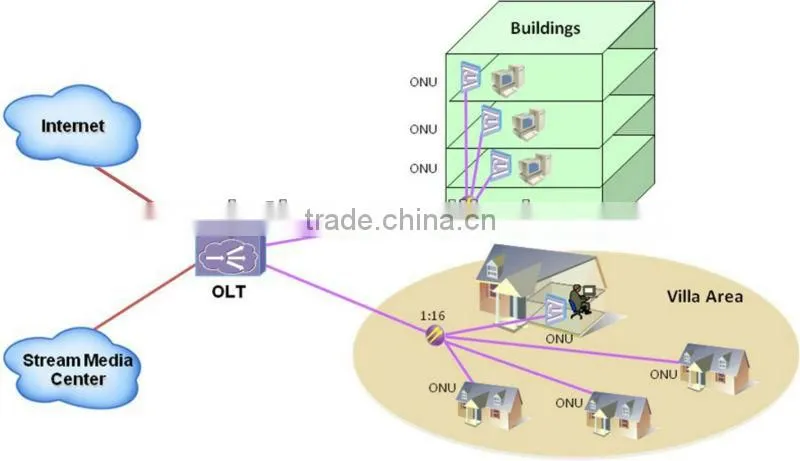

Application chart

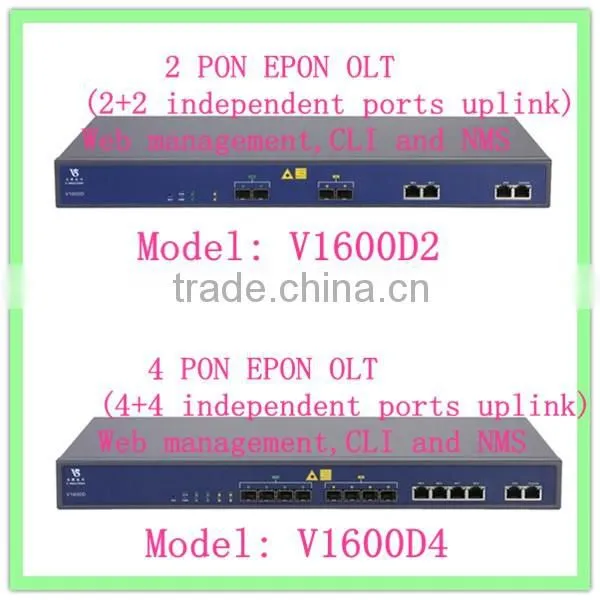

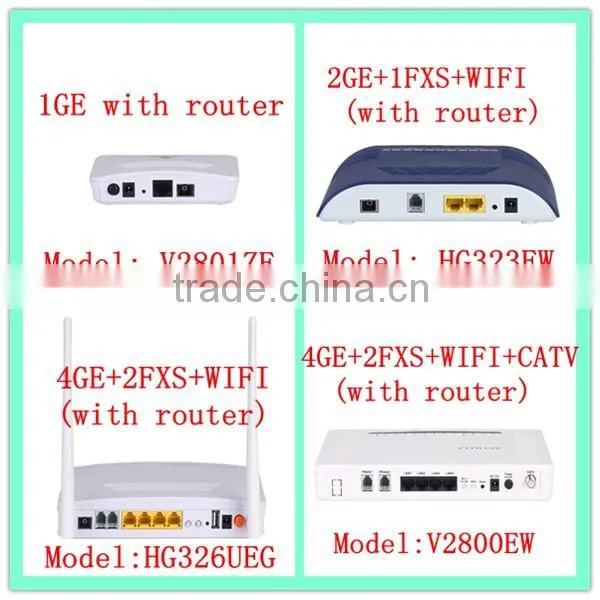

Series Products (Click image to see details):
|
|
|
|
|
|
Certification:
About V-Solution
V-SOLUTION is a professional manufacturer in China Guangzhou. Our company has established business relations with over 50 countries worldwide and more than 100 companies We devote to product GEPON ONU, GEPON OLT, GPON ONU, VoIP Gateway, Fiber CPE, Wifi Module, and so on.
Our Advantages:
1, Joint venture.
2, Partners: Fiberhome,China telecom,China Mobile,China Unicom etc.
3, Strong R&D team,nearly 40 engineers, 7 years mature technology in VoIP function.
4, 4000 square meters factory with SMT
5, CE certificate
V-Solution's Distributors in the World
FAQ
1.Can we get a lower price? Any Discount?
Yes,price is not a problem,everything could be negotiated based on the quantity.
2.Can I get a free sample?
Sorry that V-Solution is not available to new customer.
3.We are new in this PON fields,can you help me and recommend me some items?
Yes,of course.it is our pleasure to help you with it.
You only need to offer us more details about your application.
4.What is your MOQ?
No MOQ for any sample test,at least 100pcs/models after sample order.
5.OEM,ODM Service is available?
Yes,V-Solution have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6.For Trade Terms,such as payment and leadtime.
>Payment Terms:We mainly support T/T bank transfer,Paypal and Western Union
>Price Terms:EXW Guangzhou
>Shipping Methods: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
>Leadtime: Sample order,3-7work days; Bulk order 15-25work days(after your payment )
7.How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
Need more informations and get best price, Please free to contact with me!
SKYPE: linda.hyl
Why Choose V-Solution
>>Our GEPON ONU can compatible with Huawei / ZTE / FiberHome/ BDCOM OLT
>>We have wide range of GEPON Products with very competitive price.
>>Remote Technical support& Full Technical Document
>>Achieved ISO9001:2008, QC: IQC->IPQC->OQC
>>100% burn-in testing and 100% full testing before shipment
>>Strong production capability:20,000K pcs/month
>>We will never sell or share your information
