Specifications
Nonwoven Machinery1.Absorb the advanced technology from abroad
2.Swiftness aftersale support
3. 1 Year warranty
Description of pp nonwoven machinery
Items |
Specifications |
Effective breadth(mm) |
1600,2400,3200 |
Production capability(T/Y) |
1500,2200,3000 |
Weight range(g/m2) |
9-200 |
Installed capacity(kw) |
130,220,300 |
Filament denier |
≤2.5D |
Screw diameter(mm) |
130-170 |
Length-diameter ratio |
30:1 |

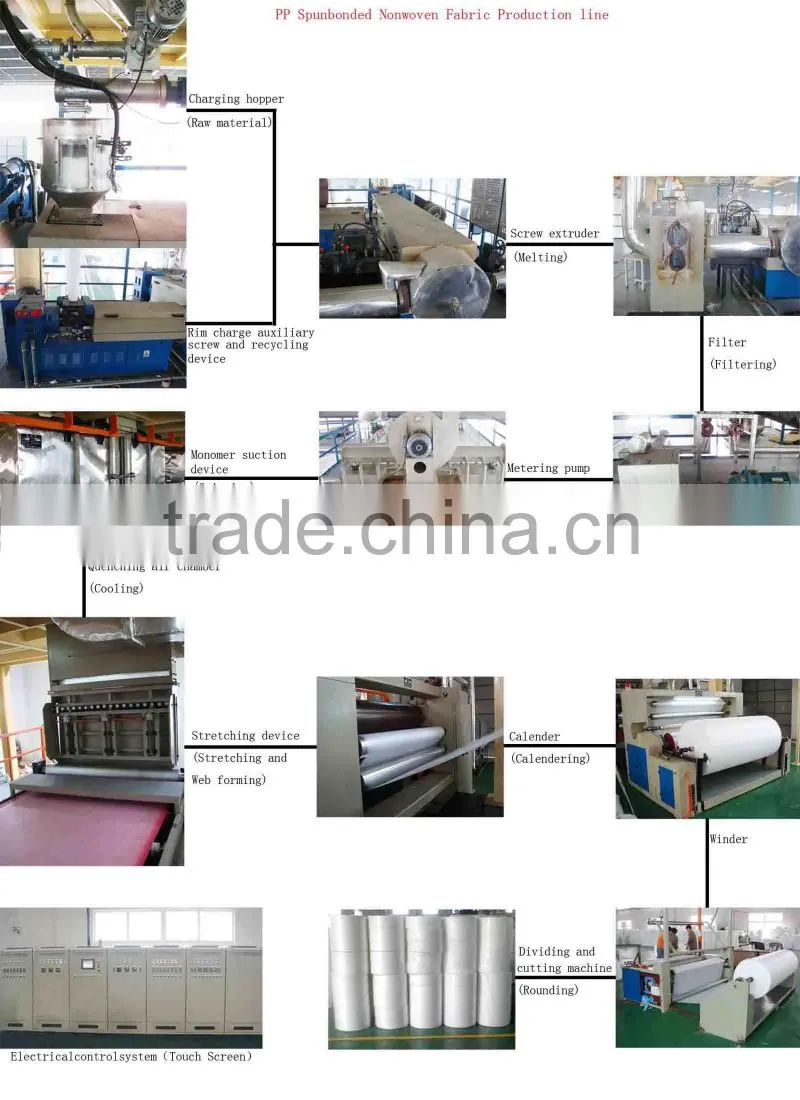

Parts of spunbonded nonwoven fabric production line:
Screw extruder --->Rim charge auxiliary screw and recycling device ---> Spinning beam --->Filter--->Metering pump--->Monomer suction device--->Quenching air chamber--->Stretching device--->Calender--->Tension device--->Winder and suction system.
Spunlaid process and technical flow chart:
Additive(recycling waste edge)---> Raw material -->Melting--> Filtering-->Measuring-->Spinning-->Cooling-->Stretching-->Web forming-->Calendering-->Rounding-->Final products.
Filament denier:less or equal to 2.5 denier
Basis weight (gsm):10-200 gsm
|
Output per year |
Total capacity |
operating power |
Power consumption |
Size |
1.6 meter single spinning beam machinery |
1500ton |
520kw |
130kw |
800kw*h/ton |
10*15*12.5m |
1.6 meter double spinning beam machinery |
3000ton |
1040kw |
260kw |
800kw*h/ton |
10*25*12.5m |
2.4 meter single spinning beam machinery |
2200ton |
880 kw |
220kw |
800kw*h/ton |
14*20*12.5m |
2.4 meter double spinning beam machinery |
4400ton |
1760kw |
440kw |
800kw*h/ton |
14*30*12.5m |
3.2 meter single spinning beam machinery |
3000ton |
1200kw |
300kw |
800kw*h/ton |
17*20*12.5 m |
3.2 meter double spinning beam machinery |
6000ton |
2400kw |
600kw |
800kw*h/ton |
17*30*12.5m |
Main usage of the fabric:
Medical usage: operation suitexposure suit,cap,sauna clothes face mask,shopping bag,disposable clothes and so on .
Agricultural usage:Cover for plant to anti-forst,insect-resistant sunshades,awning clothes,packing bags for crops,etc
Packing and lining: Bags for business,shopping and parents packet,dust cover,sleeping bag for children,leather shoes,luggage,mattress,sofa lining and so on.
We can also change the effective fabric width to fit clients' special requests

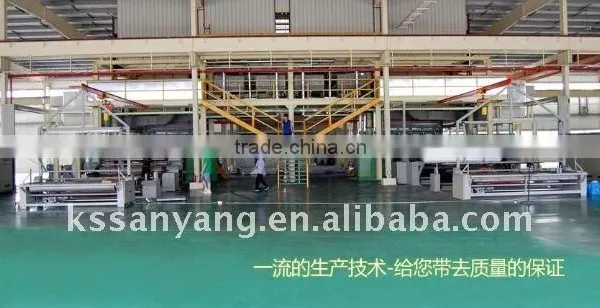

PP nonwoven fabric making prodcution line:
