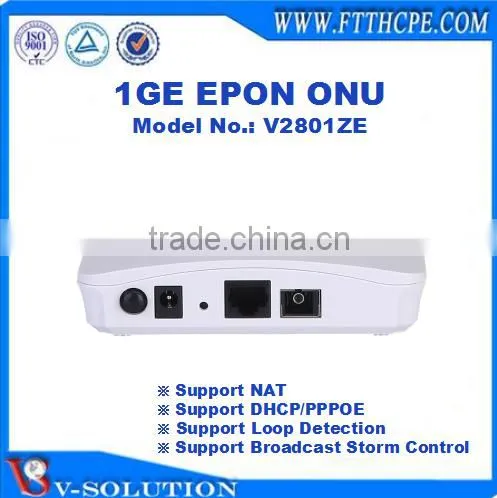

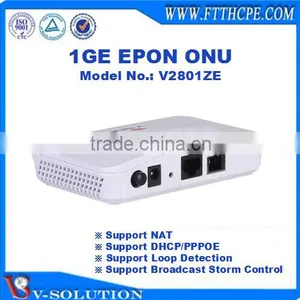

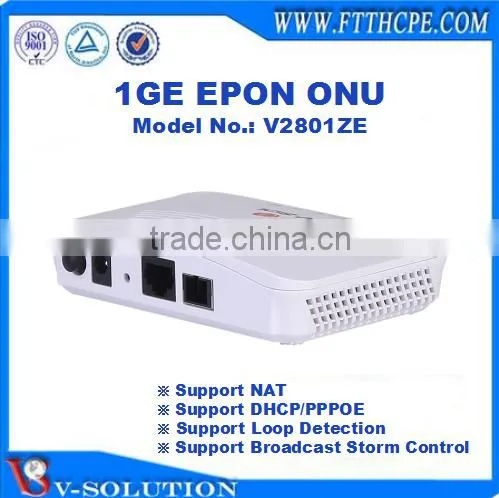

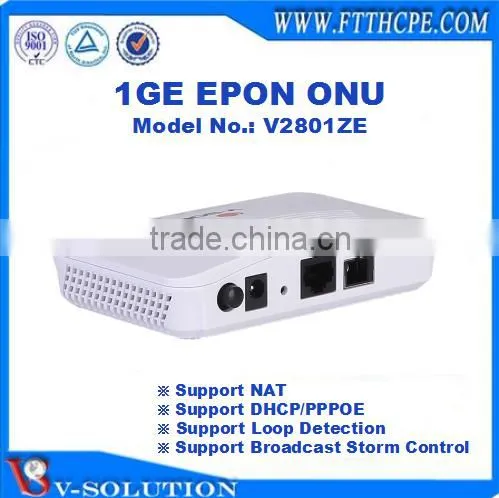

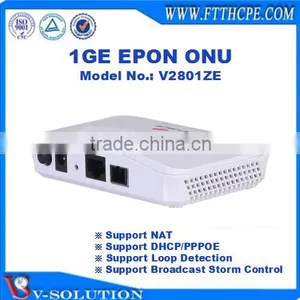

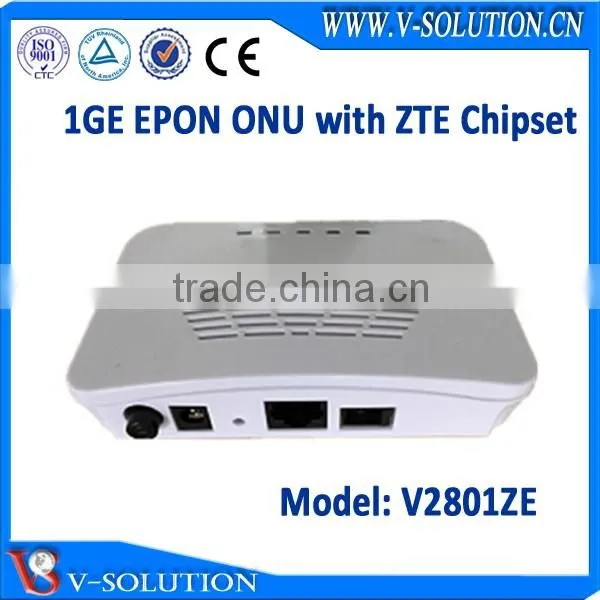

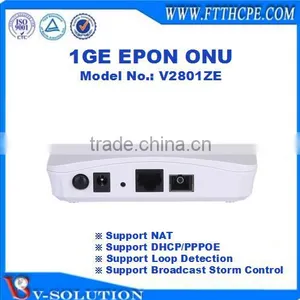

1GE EPON ONU
Support DHCP/PPPoE
Compatible with Huawei/ZTE/Fiberhome OLT
.
Parameter Item |
Hardware Parameter |
EPON | |
Chipset |
ZTE ZX279110 Series |
PON |
SC single-mode/single-fiber, symmetric 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Sensitivity |
<-27dBm(PX20+) |
Overload |
>-3dBm(PX20+) |
Optical Type |
SC/PC |
Interface Type |
1*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector |
Indicators |
5, For POWER,PON ,LOS,Lan for V2801CG 5, For POWER,LOS,PON ,Link,System for V2801ZE |
Parameter Item |
Software Parameter |
EPON | |
Basic |
Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth |
Alarm |
Support Dying Gasp Support PortLoopDetect Support Eth Port Los |
LAN |
Support Port rate limiting Support Loop detection Support Flow control Support Storm control Support Mac limiting(max mac limit 64) |
VLAN |
Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 8 vlans) Support VLAN 1:1 translation mode(max 8 vlans) |
Multicast |
Support IGMPv1/v2 Support IGMP Snooping Max Multicast vlan 8 Max Multicast Group 64 |
QoS |
Support 4 queues Support SP and WRR Support 802.1P Classification: D-MAC/S-MAC/D-IP/S-IP/L4-S-Port/L4-D-Port/Vlan/Cos/Ether Type/DSCP |
L3(only for V2801ZE) |
Support IPv4,IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Static IP Support Static route Support NAT |
Management |
Support CTC OAM 2.0 and 2.1 Support WEB Support TELNET Support CLI |
Throughput |
Upstream >900Mbps Downstream >960Mbps |
Packet lost |
14Hours /Lost 0 |
| Series Products (Click Image to See Details) | |
|
|
|
|
1. Shipping: We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.
2. Packaging: standard carton which suitable for air/ sea transportation.
1. Quick Reply: Your inquiry related to our products or price will be replied within 24 hours.
2. OEM&ODM: We can help you to design and put your good idea into products.
3. Warranty: 365 days
V-SOLUTION Telecommunication Technology Co., Ltd. is a professional manufacturer in China Guangzhou. Our company has established business relations with over 50 countries worldwide and more than 100 companies . We devote to product GEPON ONU, GEPON OLT, GPON ONU, VoIP Gateway, Fiber CPE, Wifi Module, and so on.
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Sorry that V-Solution is not available to new customer.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test, at least 100pcs/models after sample order.
5. OEM/ODM Service is available?
Yes, V-Solution have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW Guangzhou
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other
brands.
For more information, please feel free to contact with me.
