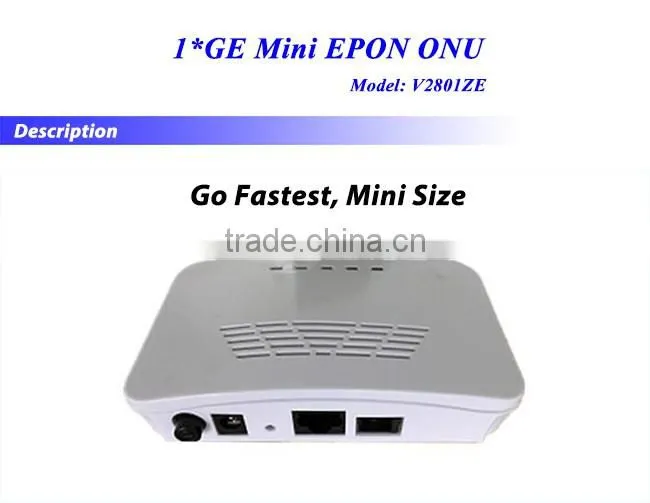

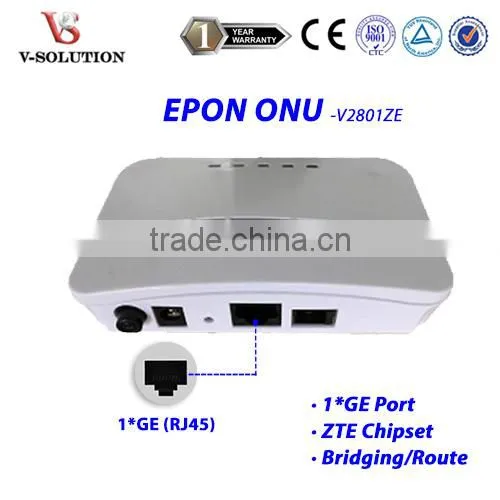

1GE EPON ONU With Mini Plastic White Housing Support DHCP/PPPOE/Static IP/Static Route

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

V2801ZE

Guangzhou V-Solution Telecommunication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VS

Model Number V2801ZE

Technical Parameters

Parameter Name	Hardware Parameter
Parameter Name	EPON
Chipset	ZTE ZX279110 Series for V2801ZE
PON	SC single-mode/single-fiber, symmetric 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Sensitivity	<-27dBm(PX20+)
Overload	>-3dBm(PX20+)
Optical Type	SC/PC
Interface Type	1*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector
Indicators	5, For POWER,PON ,LOS,Lan for V2801CG 5, For POWER,LOS,PON ,Link,System for V2801ZE

Parameter Name	Hardware Parameter
Parameter Name	EPON
Basic	Support MPCP discover&register Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth
Alarm	Support Dying Gasp Support PortLoopDetect Support Eth Port Los
LAN	Support Port rate limiting Support Loop detection Support Flow control Support Storm control Support Mac limiting(max mac limit 64)
VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 8 vlans) Support VLAN 1:1 translation mode(max 8 vlans)
Multicast	Support IGMPv1/v2 Support IGMP Snooping Max Multicast vlan 8 Max Multicast Group 64
QoS	Support 4 queues Support SP and WRR Support 802.1P Classification: D-MAC/S-MAC/D-IP/S-IP/L4-S-Port/L4-D-Port/Vlan/Cos/Ether Type/DSCP
L3(only for V2801ZE)	Support IPv4,IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Static IP Support Static route Support NAT
Management	Support CTC OAM 2.0 and 2.1 Support WEB Support TELNET Support CLI
Throughput	Upstream >900Mbps Downstream >960Mbps
Packet lost	14Hours /Lost 0
