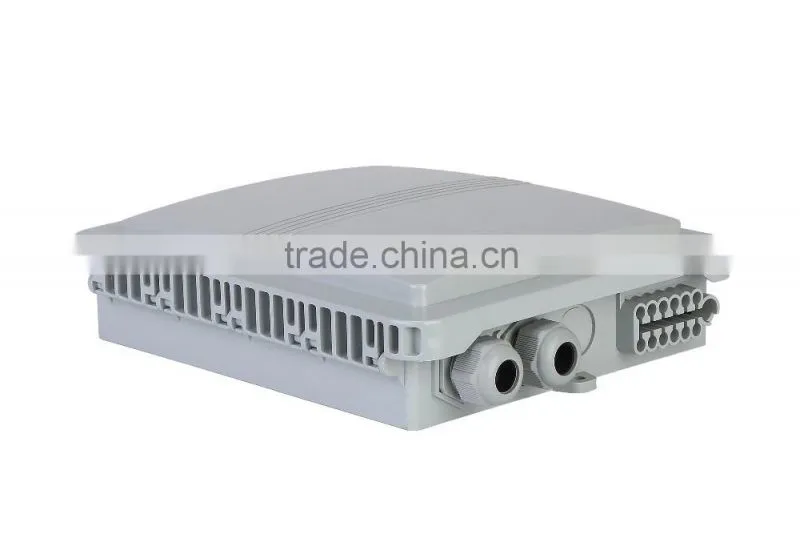

Help CenterEPON 8FE+Reverse PoE Waterproof GEPON Network FTTH Outdoor Device
Related Products
-
Terminal Modem Equipment Unit EPON 8FE+Reverse PoE Waterproof GEPON ONUNegotiableMOQ: 1 Piece -
Industrial GEPON ONU EPON 8FE+Reverse PoE Terminal Waterproof Modem Equipment UnitNegotiableMOQ: 1 Piece
-
EPON 8FE+Reverse PoE Industrial Grade Network FTTH Outdoor Device GEPON ONUNegotiableMOQ: 1 Piece
-
Industrial Grade Network FTTH Outdoor Device Fiber Optical ONT Terminal Modem Equipment Unit Waterproof GEPON ONUNegotiableMOQ: 1 Piece
-
OEM Outdoor Device Industrial FTTH Terminal Modem Equipment Unit GEPON ONU With Waterproof ModelNegotiableMOQ: 1 Piece
Introduction :

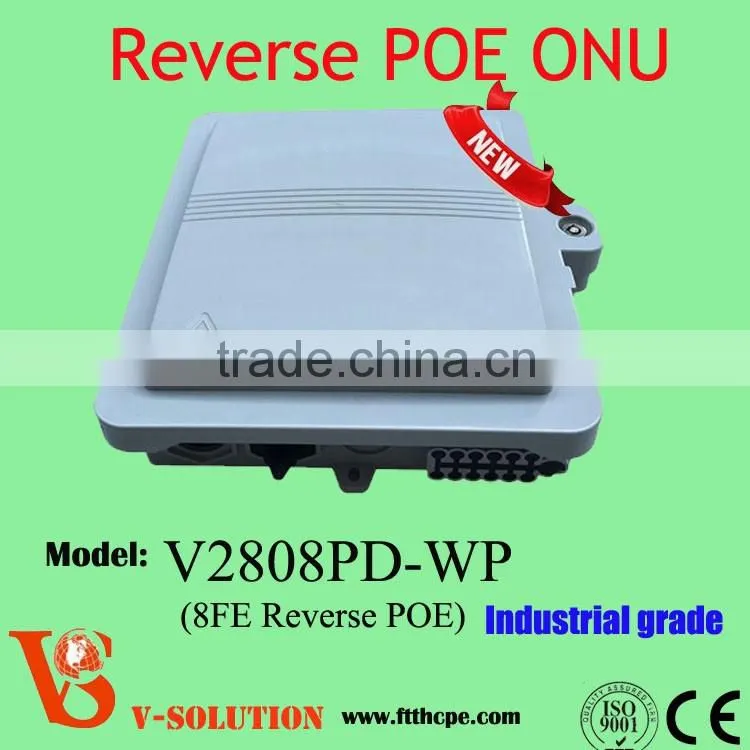

EPON 8FE+Reverse PoE(PD) ONU with reverse PoE designed for fulfilling FTTH request of telecom operators, internet access of SOHO. This product is basing on the stable and mature Gigabit EPON technology, which has high performance/price ratio, and the technology of layer 2Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS. And it is fully compliant to technical regulations such as IEEE802.3ah and technicalrequirement of EPONEquipment (V2.1) from China Telecom. ONU is powered by the power sourcing equipment (PSE) deployed in users' residences, applied in scenarios where there is no alternating current (AC) power supply in corridors.
*******************************************************************************************************************
Technical parameters:
Technical item |
8FE+Reverse PoE (PD) |
PON interface |
1EPON connector,SC single-mode/single-fibre,downlink/uplink 1.25Gbps |
Wavelength |
Tx1310nm,Rx 1490nm |
Optical interface |
SC/UPC connector |
LAN interface |
8x 10/100Mbps auto adaptive Ethernet interfaces.10/100M Full/Half, RJ45 connector |
LED |
20, For Status of POWER,LOS,PON,LAN,SYS,PoE |
Operating condition |
Temperature: -10℃~45℃(metric casing) -30℃~60℃(water proof casing) Humidity: 10%~90%(non-condensing) |
|
Storing condition |
Temperature :-30℃~60℃ Humidity :10%~90%(non-condensing) |
Power supply |
DC 12V/0.5A or Powered by the power sourcing equipment (PSE) |
Power consumption |
≤5W |
Dimension |
235mm×220mm×60mm(L×W×H) |
Net weight |
0.8Kg |
*******************************************************************************************************************
Our products:

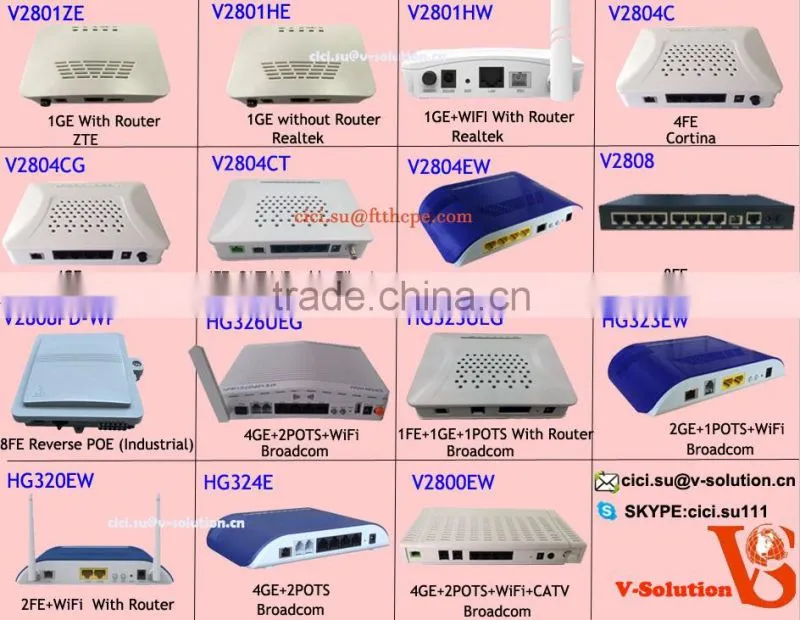

GPON/GEPON ONU, GEPON OLT, Home Gateway Unit, P2P Triple Play CPE, VoIP Gateway and ect.
Need more informations and get best price, Please free to contact with me!
SKYPE: cici.su111
*******************************************************************************************************************************************
Why you choose V-Solution?
Our GEPON ONU can compatible with Huawei / ZTE / FiberHome/ BDCOM OLT. ONUs are our advantage products, The price are very competitive in the market. All of ONUs are researched and developed by our engineers. V-SOLUTION currently employs over 50 R&D engineers. Our engineers have a good knowledge of communication network protocols and have rich experiences in developing products.The company has strong R&D capability so that ODM business such as communication network products with high difficulty and with combination of hardware and software can be confidently contracted.
