4FE/GE EPON ONU GEPON ONU with CE Certification for FTTH Solution
- 10000 Unit / Units per Month
- Guangzhou
- Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | V-Soliuton | Model Number: | V2804 |
Product Description

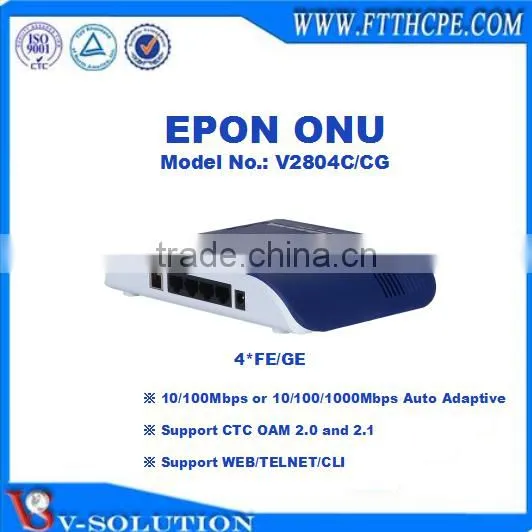

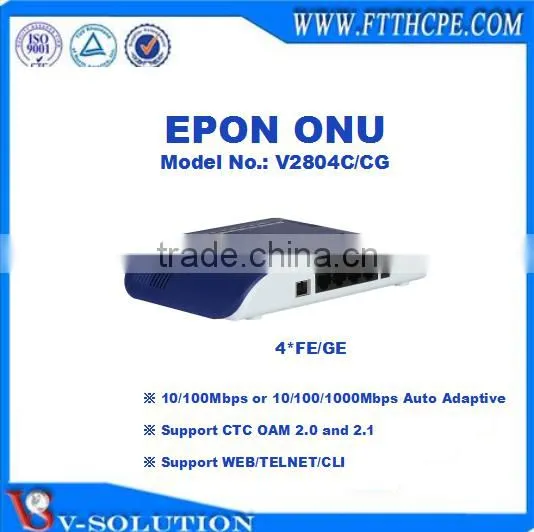

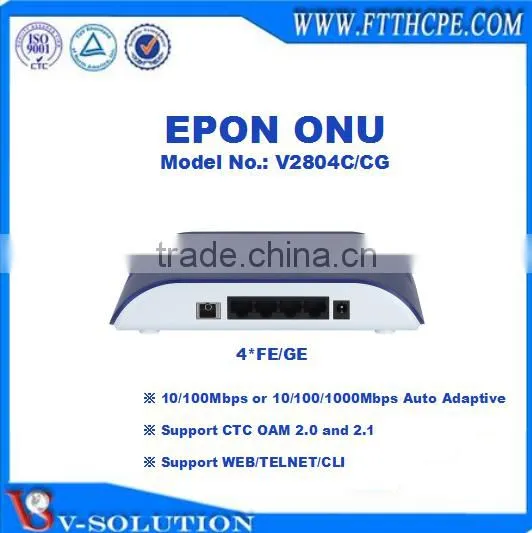

4FE/GE EPON ONU GEPON ONU
with CE Certification
For FTTH Solution
Technical items | Description |
Upstream PON interface | 1 EPON interface, SC single-mode/single-fibre, symmetric 1.25Gbps |
Wavelength | Tx 1310nm, Rx 1490nm |
Optical interface | SC/PC connector |
Downstream LAN interface | V2804CG: 4*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
Indicators | 6 indicators, for status of power supply, PON port and 4 Ethernet ports. |
DC power supply | +12V/0.5A, external AC-DC power adaptor |
Power switch | 1, power on and off |
Power consumption | ≤5W |
Operating condition | Operating temp: -5℃~+45℃, operating humidity:10~90%(non-condensed) |
Storing condition | Storing temp: -30~+60℃, storing humidity:10-90%(non-condensed) |
Dimension | 160mm*115mm*32mm(length*width*height) |
Net weight | 0.25Kg |
* Full speed non-blocking switching.
* 2K MAC address table.
* Integrated 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
* Support port monitoring, port mirroring, port rate limiting, port SLA, etc.
* Support auto polarity detection of Ethernet ports (AUTO MDIX).
* Support IEEE802.1p QoS with four level priority queues.
* Support IPv4 IGMP snooping and IPv6 MLD snooping.
1. Shipping: We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.
2. Packaging: standard carton which suitable for air/ sea transportation.
1. Quick Reply: Your inquiry related to our products or price will be replied within 24 hours.
2. OEM&ODM: We can help you to design and put your good idea into products.
3. Warranty: 365 days
V-SOLUTION Telecommunication Technology Co., Ltd. is a professional manufacturer in China Guangzhou. Our company has established business relations with over 50 countries worldwide and more than 100 companies . We devote to product GEPON ONU, GEPON OLT, GPON ONU, VoIP Gateway, Fiber CPE, Wifi Module, and so on.
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Sorry that V-Solution is not available to new customer.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test, at least 100pcs/models after sample order.
5. OEM/ODM Service is available?
Yes, V-Solution have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW Guangzhou
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other
brands.
For more information, please feel free to contact with me.
Skype: ali-vsolution | WhatsApp: +8618620119826
