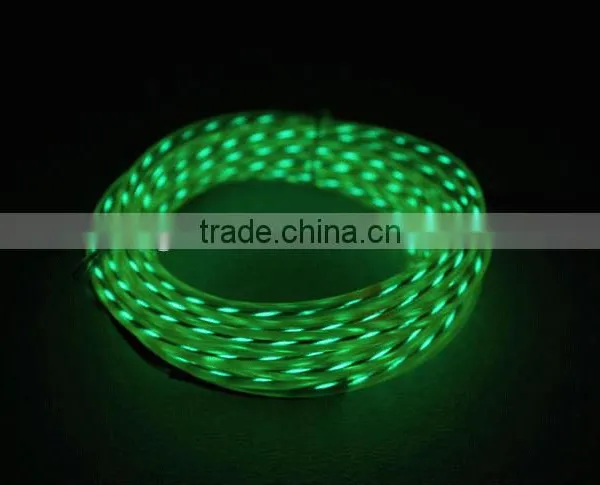

Help Center5.0mm High Brightness Chasing EL Wire-Lemon
Related Products
-
2013 Hot-Selling EL Cable EL Chasing WireUS$ 0.5 - 1.3MOQ: 1000 Meters -
The Coolest Festival Lighting Wire EL Chasing WireUS$ 0.5 - 1.3MOQ: 100 Meters
-
2.3mm High Quality Factory EL Chasing WireUS$ 1 - 1.2MOQ: 100 Meters
-
Colorful EL Chasing Wire Top Bright LightingUS$ 1 - 1.2MOQ: 100 Meters
-
China Flashing EL Wire EL Lighting Wire Cable ManufacturersUS$ 0.8 - 1MOQ: 1 Meter
Specifications
1.invention patent in both china and america2.multi color and diameter
3.large production capability
4.fast delivery
2.Features of The High Brightness EL chasing wire
2.1 Low energy consumption: 14mw/meter-90mw/meter(AC 110V 800HZ-1200HZ)
2.2 Longer life span: 8000hours (AC 110V 800HZ)
2.3 Brightness index: 150cd/m2 (AC 110V 800HZ)
2.4 Water-proof, anti-UV, anti-hardening under the temperature of -20°C, without toxic and heat radiation, not including UV, safe and no environment pollution.
2.5 Soft, flexible to bend; arbitrary to knot, cut, splice, and will not affect the continuity light-emitting devices luminescent properties; convenient to install; no need for professional guidance
2.6 The products can be directly used with transparent adhesive tape, glue, pins, wire nails and other objects fixed in the decorative surface.
3. Application of the High Brightness EL chasing wire
3.1 Indoor advertisement: can be made into various types of dynamic text patterns ,applied on store family showcase, door decoration, furniture edges, wall design, roof design, trees, grass and so on,
3.2 Transport decoration: internal and external decoration of Travel and ship, the functional profile identification of cage door ,instrument instruction, digital patterns show, halted security automatic shape sign, interior logo of bulletin automotive, bicycles, etc.
3.3 Security marking and instructions: street fence, stair handrail and ground instruction, continuous channel logos, exit signs, outdoor temporary night warning lines, Police line of sight of subway, stations, pier, construction sites and equipment etc.
3.4 Electronics and appliance product applications: industrial machinery and equipment which provide electronic display mark, electric toys, arts and crafts, sports equipment, sports venues, security clothing ,hats, bags, household appliances display instructions, military equipment, etc.
3.5 Innovation and fashionable glowing application.
4. Main performance Parameters of The High Brightness EL chasing wire
4.1 Working voltage:80-110V,optimum operating voltage: 110V.
4.2 Working frequency:800Hz-1200Hz,optimal frequency: 800Hz.
4.3 Static capacitance:6.5nf/m (20°C RH<80%).
4.4 Illumination intensity:150cd/m2 (110V 800Hz).
4.5 Power consumption:14mW/m ~ 90mW/m(110V 800Hz-1200Hz).
4.6 Life span(normal temperature and moisture): 8000 hours(110V 800Hz).
4.7 Continuous working temperature/relative humidity:-20°C ~ +70°C/RH<90%.
4.8 Storage temperature/relative humidity:-10°C ~ +40°C/RH<65%.
5. Model and specification of The High Brightness EL chasing wire
5.1 Main Specification :1.4mm,2.3mm,3.2mm, 5.0mm
5.2 Max Length: 50M/Roll
5.3 EL chasing wire have DC Driver Series, AC Driver Series, Battery Series

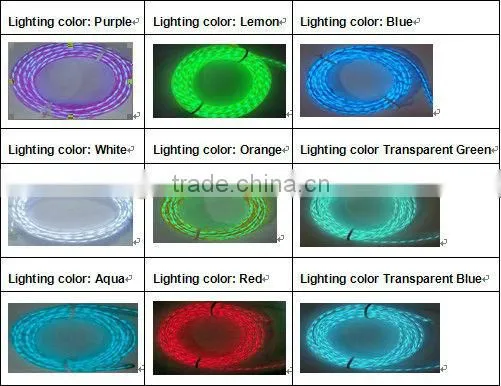

6. Main Color:Red, Lemon, Blue, Aqua, White, Orange, Purple, Transparent Green, Transparent Blue
7. Our advantages:
(1) Huangshi Changkai Electrical Co.,ltd has specialized in EL products above 10 years and has enjoyed a high reputation in the field.
(2) EL chasing wire have USA Invention Patent .USA Patent NO: US 7,671,279.
(3) Powerful production capacity:Our factory can manufacture 10000 meters EL chasing wire of different diameters everyday.
(4) Enthusiastic service and fast delivery.
