Competitive price for 1U 4 PON GEPON/GPON OLT support 256 ONU FTTH OLT
- 10000 Piece / Pieces per Month
- Guangzhou
- T/T Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | VS | Model Number: | V1600D4_MINI |
Product Description
For more information, please contact me directly
Skype: linda.hyl
Introduction

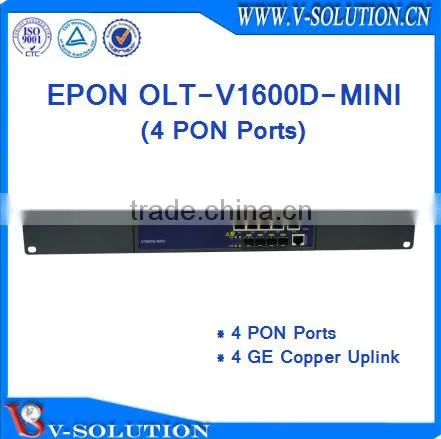

V1600D-MINI is a low cost EPON OLT product, it is 1U height.
can be expanded into 19 inch rack mount products by hanging ears.
The features of the OLT are small, cheap,convenient, flexible, easy to deploy.
It is appropriate to be deployed in compact room environment.
The OLTs can be used for Triple-Play, VPN, IP Camera, Enterprise LAN and ICT applications.
The low cost V1600D-MINI hasn’t L2 or L3 switch chip for uplink ports,
so each uplink port is connected to an EPON port directly,
each PON port behaves as an independent EPON OLT port,there is no traffic switching between PON Ports.
and each PON port forwards packets to and receive packets from one dedicated uplink port.
V1600D-MINI provides the full management functions for ONU according to CTC standard.
Each of the 4 EPON OLT ports is fully compliant with IEEE 802.3ah standard and CTC 2.1 specification for SerDes,
PCS, FEC, MAC, MPCP State Machines, and OAM extension implementation.
Both upstream and downstream are operational at 1.25Gbps data rates
Technical parameter
Item | V1600D-MINI | ||
Chassis | Rack | 1U height box | |
1000M Uplink Port | QTY | 4 | |
Copper | 1000M Duplex | ||
EPON Port | QTY | 4 | |
Physical Interface | SFP Slots | ||
Connector Type | 1000BASE-PX20+ | ||
Max splitting ratio | 1:64 | ||
Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | ||
PON Port Specification | Transmission Distance | 20KM(PX20+), 40KM(PX20++) | |
EPON port speed | Symmetrical 1.25Gbps | ||
Wavelength | TX 1490nm, RX 1310nm | ||
Connector | SC/PC | ||
Fiber Type | 9/125μm SMF | ||
TX Power | +2~+7dBm | ||
Rx Sensitivity | -27dBm | ||
Saturation Optical Power | -6dBm | ||
Management Mode | SNMP, Telnet and CLI | ||
Management Function | Fan Group Detecting; Port Status monitoring and configuration management; Layer2 configuration such as VLAN,QOS, etc; EPON management function: DBA,ONU authorization,etc; Online ONU configuration and management; User management; Alarm management. | ||
Layer2 Function | Up to 16 K MAC address; Support port VLAN and protocol VLAN; Support VLAN tag/Un-tag ; VLAN transparent transmission; Port stability statistic and monitoring. | ||
EPON Function | Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah standard; Up to 20KM transmission Distance; Support Dynamic Bandwidth Allocation (DBA); Support ONU auto-discovery/link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID;configuration; Different user and different service could provide different QoS by means of different LLID channels; Support power-off alarm function,easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Specialized design for system breakdown prevention to maintain stable system; Support dynamic distance calculation on EMS online; | ||
Dimension(L*W*H) | 224mm*200mm*43.6mm | ||
Weight | 3.1kg | ||
Power Supply | 220VAC | AC:90~264V, 47/63Hz | |
Power Consumption | 15W | ||
Operating Environment | Working Temperature | -10~+55℃ | |
Storage Temperature | -40~+85℃ | ||
Relative Humidity | 5~90%(non-conditioning) |

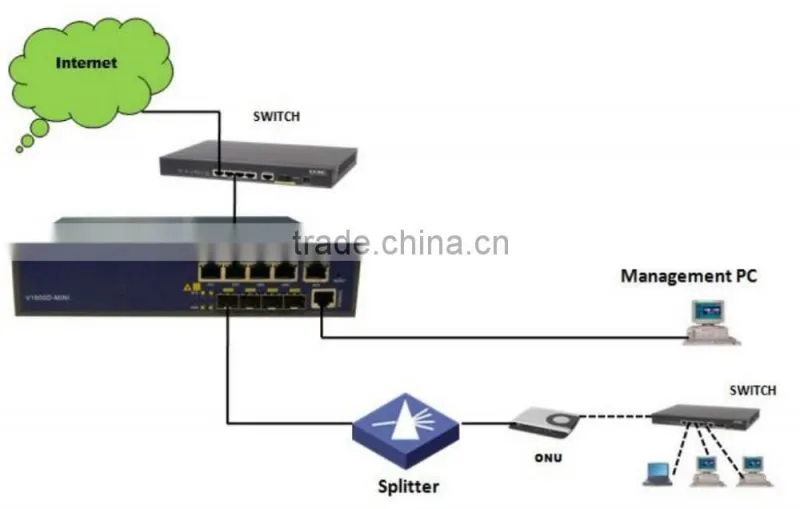

Application chart
Series Products (Click image to see details):
Certification:
About V-Solution
V-SOLUTION is a professional manufacturer in China Guangzhou. Our company has established business relations with over 50 countries worldwide and more than 100 companies We devote to product GEPON ONU, GEPON OLT, GPON ONU, VoIP Gateway, Fiber CPE, Wifi Module, and so on.
Our Advantages:
1, Joint venture.
2, Partners: Fiberhome,China telecom,China Mobile,China Unicom etc.
3, Strong R&D team,nearly 40 engineers, 7 years mature technology in VoIP function.
4, 4000 square meters factory with SMT
5, CE certificate
V-Solution's Distributors in the World
FAQ
1.Can we get a lower price? Any Discount?
Yes,price is not a problem,everything could be negotiated based on the quantity.
2.Can I get a free sample?
Sorry that V-Solution is not available to new customer.
3.We are new in this PON fields,can you help me and recommend me some items?
Yes,of course.it is our pleasure to help you with it.
You only need to offer us more details about your application.
4.What is your MOQ?
No MOQ for any sample test,at least 100pcs/models after sample order.
5.OEM,ODM Service is available?
Yes,V-Solution have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6.For Trade Terms,such as payment and leadtime.
>Payment Terms:We mainly support T/T bank transfer,Paypal and Western Union
>Price Terms:EXW Guangzhou
>Shipping Methods: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
>Leadtime: Sample order,3-7work days; Bulk order 15-25work days(after your payment )
7.How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
Need more informations and get best price, Please free to contact with me!
SKYPE: linda.hyl
Why Choose V-Solution
>>Our GEPON ONU can compatible with Huawei / ZTE / FiberHome/ BDCOM OLT
>>We have wide range of GEPON Products with very competitive price.
>>Remote Technical support& Full Technical Document
>>Achieved ISO9001:2008, QC: IQC->IPQC->OQC
>>100% burn-in testing and 100% full testing before shipment
>>Strong production capability:20,000K pcs/month
